DPP15-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> DPP15-24

DPP15-24: Description15-100W, 5-48V Output DIN Rail Mount Power Supplies; Categorysemiconductor Analog mixed-signal IC; File Size470KB，4 Pages; ManufacturerRSG Electronic Components GmbH; Websitehttp://www.rsg-electronic.de/de/

Download Datasheet Compare View All

DPP15-24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DPP15-24	-	-	View	Buy Now

DPP15-24 Overview

15-100W, 5-48V Output DIN Rail Mount Power Supplies

Preview

Download Datasheet

View All

• Low Cost

• 5V to 48V Outputs

• Universal Input

• Compact Size

• NEC Class 2 Compliant

• UL508 Listed

• -10°C to +71°C Operation

• RoHS Compliant

Key Market Segments & Applications

DPP15-100 Series

15-100W, 5-48V Output

DIN Rail Mount Power Supplies

DPP15-100 Features and Benefits

Features

• PFC Compliant to EN61000-3-2

• UL508 Approvals

• TS35/7.5 or TS35/15 DIN Rail Mounting

Industrial Controls:

Factory Automation:

Motor Control Systems

Process Control, Automotive,

Chemical Processing

Test & Measurement: Burn in & Test,

Instrumentation Measurement

Benefits

• Supports Global Use

• Easier System Configuration

• Easy System Integration

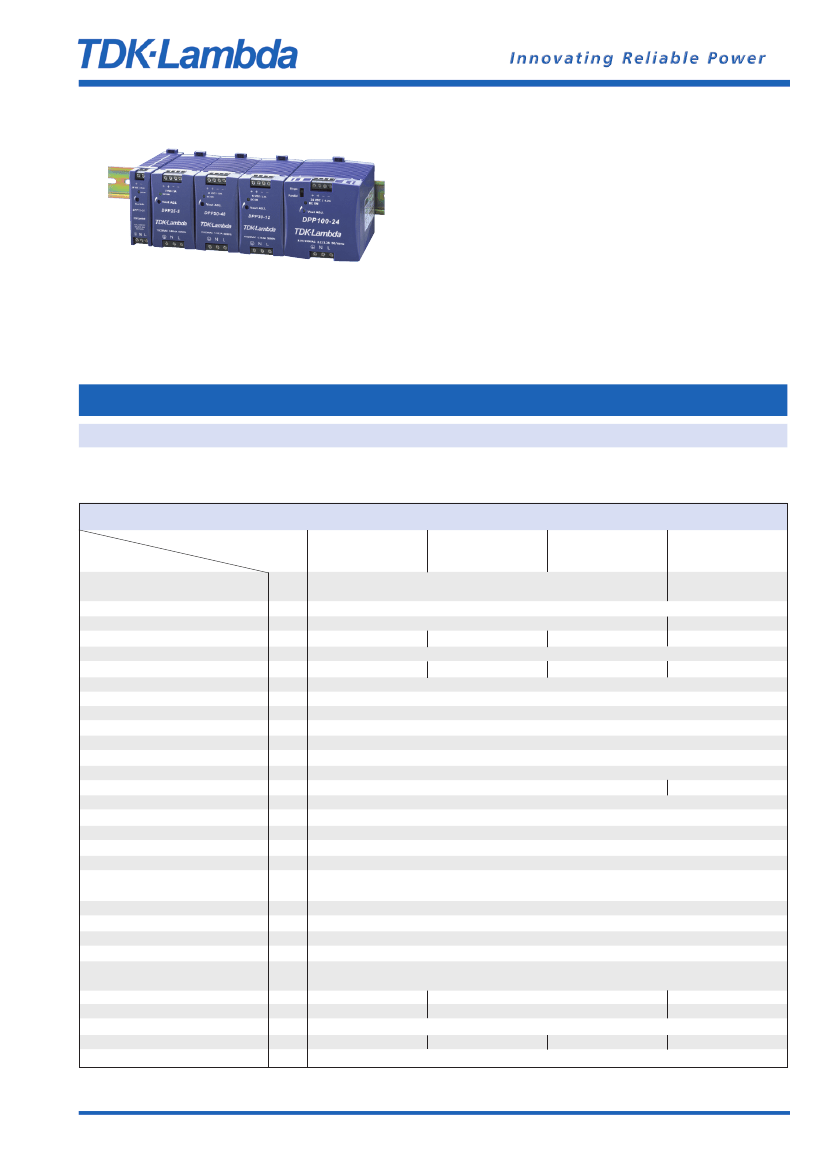

Specifications

ITEMS

AC Input Voltage range

MODELS

(1)

VAC

Hours

yrs

DPP15

DPP25/30

85 - 264VAC

DPP50

DPP100

85 - 132VAC

176 - 264VAC

Input Frequency

DC Input Voltage range

Inrush Current (115 / 230VAC)

Power Factor

Max Input Current (230VAC)

Output Voltage Accuracy

Line Regulation

Load Regulation

Ripple/Noise

Overcurrent Protection (Typ)

Overvoltage Protection

Hold Up Time (115VAC input)

Parallel switch

LED Indicator

Operating Temperature

Storage Temperature

Operating Humidity

(2)

Cooling

Withstand Voltage

Shock

Vibration

Isolation Resistance

Safety Agency Approvals

Emissions

Immunity

Weight (Typ)

Size (WxHxD)

Case material

MTBF (MIL-HDBK-217F, GF25)

Warranty

47 - 63Hz

90 - 375VDC

210 - 375VDC

<35A

35 / 45A

35 / 50A

35 / 55A

Meets EN61000-3-2 Class A

0.4

0.72

0.7

1.2

±1% (24V outputs preset at 24.5V)

< 0.5%

<50mV (20MHz Bandwith)

>120%

125 - 137.5%, Cycle AC line to reset

> 20ms

Yes

Green LED = On

-10°C to +71°C (Derate linearly 5%/°C from 61°C to 71°C)

-25°C to +85°C

20 - 90% RH (non condensing)

Convection

Input to Output 3kVAC for 1 min.

Half sine wave, 4G, 22ms, 3 times per face, X, Y, Z

10-500Hz (20 min sweep) 0.002G

/Hz, 1Grms acceleration X, Y, Z, 1 hour

>100MΩ at 25°C & 70%RH, Output to Ground 500VDC

UL60950-1, UL508, UL1310

(3)

(Class 2), EN60950-1, CE Mark

EN55011, EN55022 Class B Radiated & Conducted, EN61000-6-3

EN61000-6-2, EN61000-4-2 Level4, EN61000-4-3, EN61000-4-6 Level 3

EN61000-4-4 Level 4 (I/P) Level 3 (O/P), EN61000-4-5 Level 4, EN61000-4-8, EN61000-4-11

130

260

390

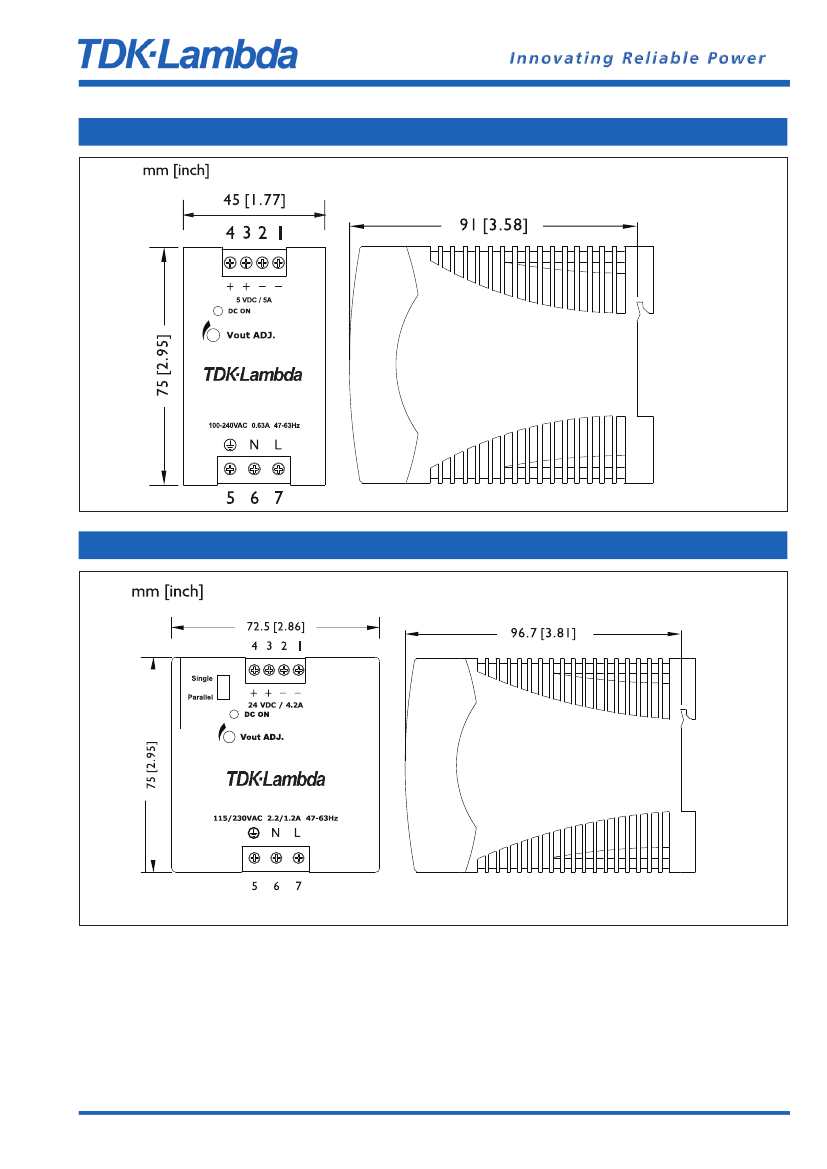

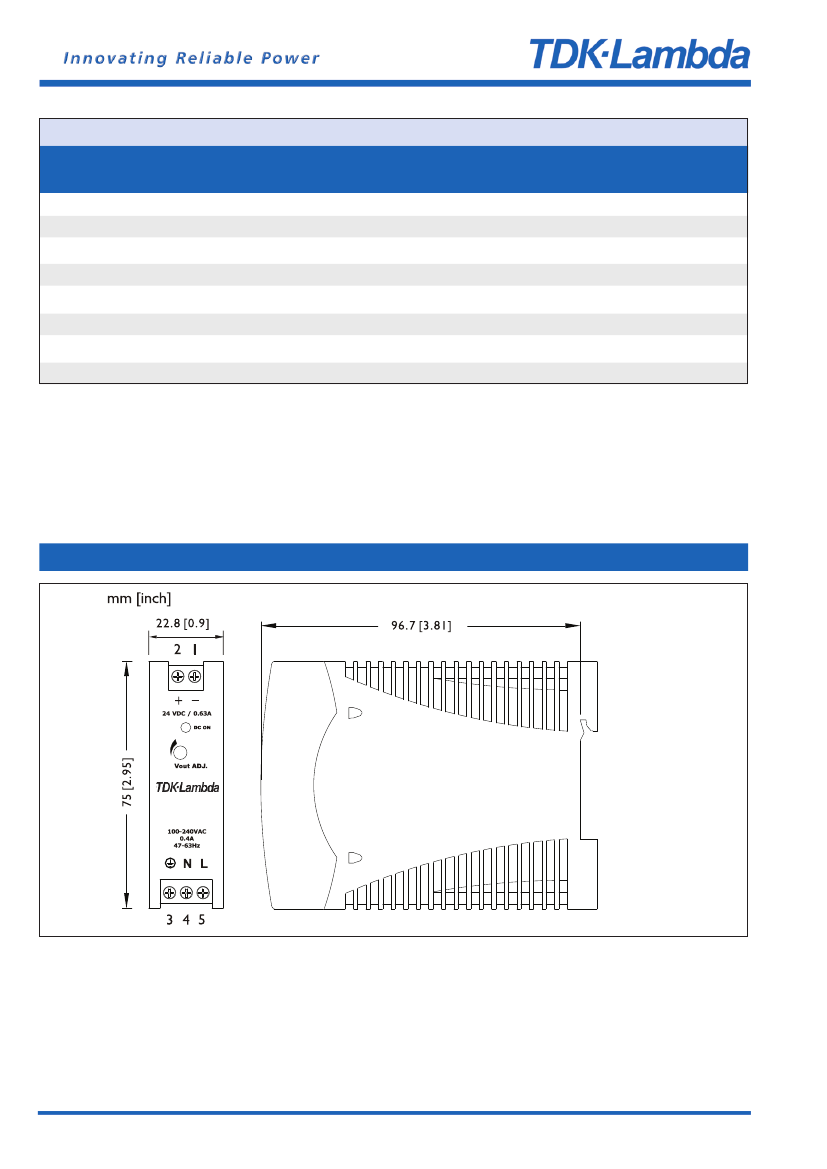

23 x 75 x 97

45 x 75 x 91

73 x 75 x 97

Plastic

287,000

>288,000

273,000

239,000

(1) Auto Select - DPP100 only

(2) Recommend 25mm clearance on all sides.

(3) Does not include DPP25-5 & DPP100-24 models.

Evaluated to NEC NFPA70 Class 2 output per UL1310.

DPP15-100 Series

DPP15-24 Related Products

	DPP15-24	DPP15	DPP30-12	DPP100-24	DPP25-5	DPP30-24	DPP50-15	DPP50-48
Description	15-100W, 5-48V Output DIN Rail Mount Power Supplies	15-100W, 5-48V Output DIN Rail Mount Power Supplies	TDK LAMBDA - DPP30-12 - AC/DC CONV; DIN RAIL; 1 O/P; 264VAC; 12V	15-100W, 5-48V Output DIN Rail Mount Power Supplies	TDK LAMBDA - DPP25-5 - AC-DC CONV; DIN RAIL; 1 O/P; 25W; 5A; 5V	TDK LAMBDA - DPP30-24 - AC/DC CONV; DIN RAIL; 1 O/P; 264VAC; 24V	15-100W, 5-48V Output DIN Rail Mount Power Supplies	15-100W, 5-48V Output DIN Rail Mount Power Supplies
