DS3-XXXX-D(H3) series
Dual output unregulated DC/DC converters 1W
ELECTRICAL SPECIFICATIONS
www.rsg-electronic.de
Input voltage range
±10%
Input filter
capacitor
■
Output voltage accuracy
±5%
■
Line voltage regulation
1.2% typ. / 1% of Vin
■
Load voltage regulation (10%~100%) -
5V output types ->
15% max.
9V, 12V and 15V output types ->
10% max.
DS3-0505D
■
Ripple & Noise / 20 MHz BW
±100 mV p-p max.
±100 mA
■
Efficiency at full load
70% min.
RSG XXXX
■
Isolation voltage
1000 VDC min.
■
Short circuit protection
1.0 sec.
■
Operating temperature range
-40°C~85°C
■
Storage temperature range
-55°C~125°C
■
Isolation resistance
10 GOhm min.
■
Isolation capacity
70 pF typ.
■
Package weight
2.2 g
■
ReFlow temp.
230°C (10 sec.)
Meet CE EN-60950-1 certified, measured @ 25°C with the condition of Vin = nominal and full load
■
■
Note: Add/H3 after P/N for isolation 3kVDC

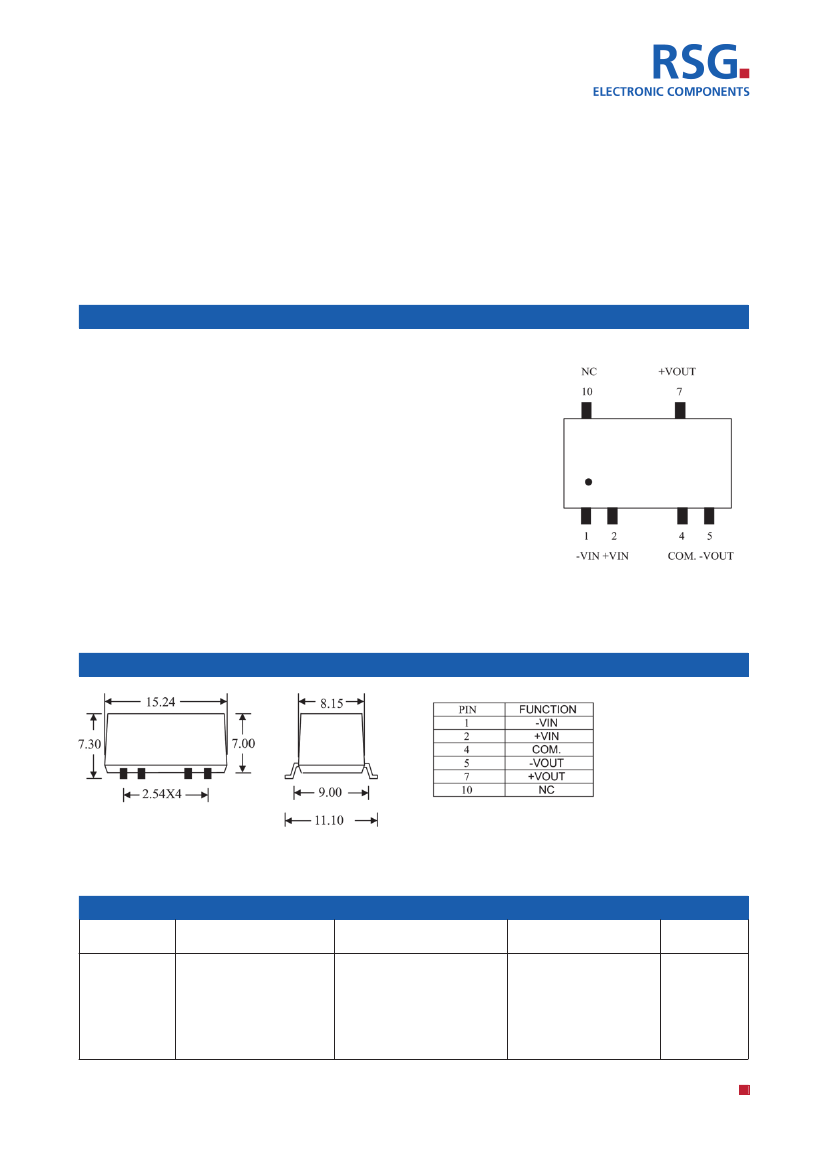

PACKAGE STYLE AND PINNING (mm)
Unit: mm
Tol.: ±0.25 mm
SELECTION GUIDE
Part Number
DS3-XX3.3D
DS3-XX05D
DS3-XX09D
DS3-XX12D
DS3-XX15D
DS3-XX24D
Input Voltage (VDC)
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
Output Voltage (VDC)
±3.3
±5
±9
±12
±15
±24
Output Current (mA)
±152
±100
±55
±42
±33
±21
Efficiency (%)
68
70
75
78
80
80
Issue 0508. Subject to change without notice.
