DS3-XXXX-L series
Single output regulated DC/DC converters 0.5W
ELECTRICAL SPECIFICATIONS
Input voltage range
Input filter
■
Output voltage accuracy
■
Line voltage regulation
■
Load voltage regulation
■
Ripple/Noise @ 20 MHz BW
■
Efficiency at full load
■
Isolation voltage
■
Short circuit protection
■
Operating temperature range
■
Storage temperature range
■
Isoaltion resistance
■
Isolation capacity
■
Package weight
■
■
www.rsg-electronic.de
±5%
Capacitor
±5%
1.0% max.
1.0% max.
100 mV p-p max.
50% min.
1000 VDC min.
1.0 sec.
-40°C~70°C
-55°C~125°C
10 GOhm
70 pF typ.
1.9 g
DS3-0505
100 mA
RSG XXXX
Measured @ 25°C with the condition of
Vin = nominal and full load.
Note: add / T after P/N for input voltage
■
ReFlow temp.
±10%
240°C max. (10~30 sec.)

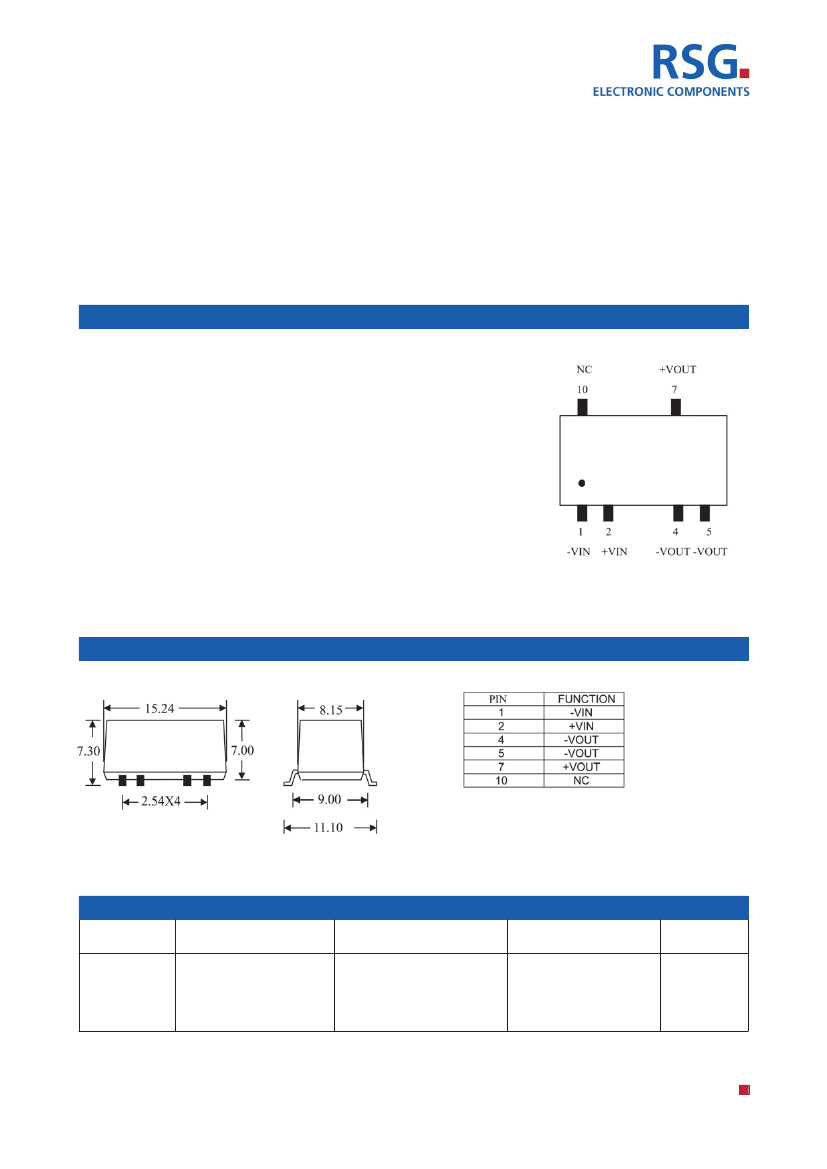

PACKAGE STYLE AND PINNING (mm)
Unit: mm
Tol.: ±0.25 mm
SELECTION GUIDE
Part Number
DS3-XX05-L
DS3-XX09-L
DS3-XX12-L
DS3-XX15-L
Input Voltage (VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output Voltage (VDC)
5
9
12
15
Output Current (mA)
100
55
42
33
Efficiency (%)
52
55
58
60
Issue 0508. Subject to change without notice.
