DS3-XX09D

Description
Dual output unregulated DC/DC converters 1W
File Size50KB,1 Pages
ManufacturerRSG Electronic Components GmbH
Websitehttp://www.rsg-electronic.de/de/
Download Datasheet View All

DS3-XX09D Overview

Dual output unregulated DC/DC converters 1W

individual power supplies
RSG Electronic Components GmbH
Sprendlinger Landstr. 115
D-63069 Offenbach
Tel. +49 69 984047-0
Fax +49 69 984047-77
info@rsg-electronic.de

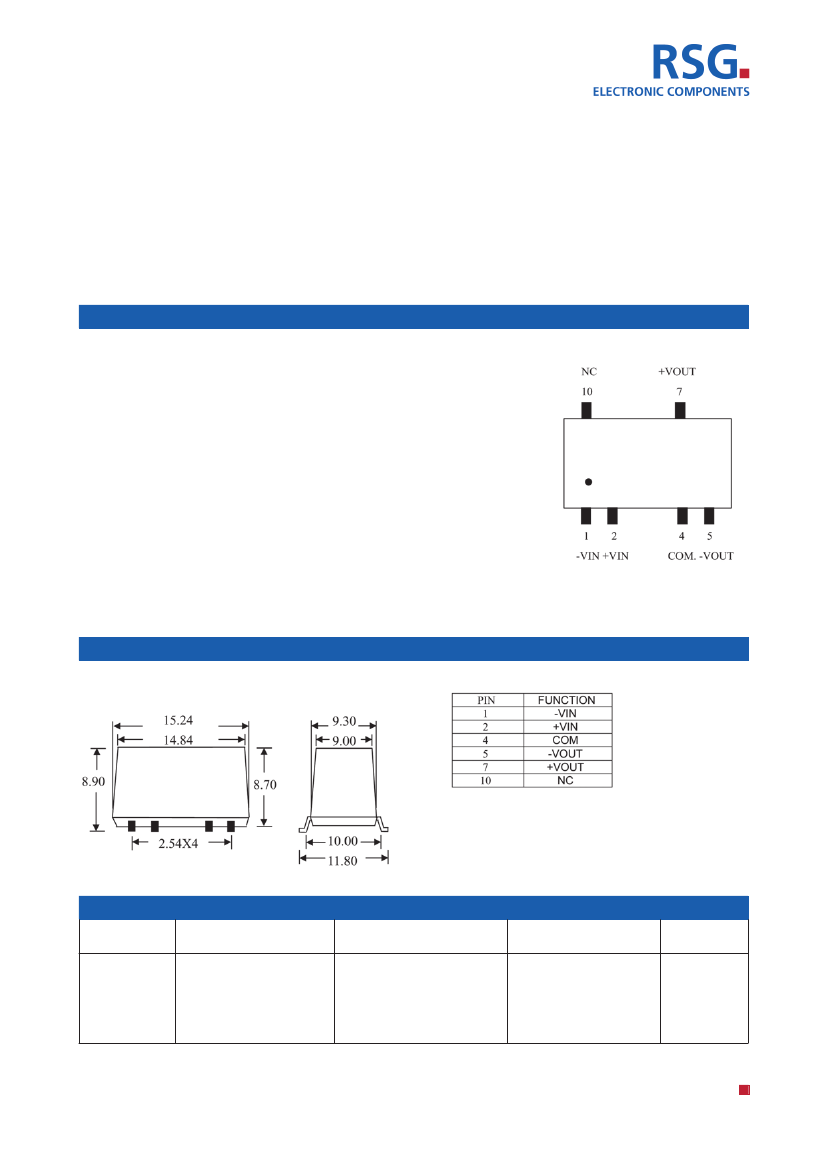

DS3-XXXX-D2(H) series
Dual output unregulated DC/DC converters 2W
ELECTRICAL SPECIFICATIONS
Input voltage range
Output voltage accuracy
Line voltage regulation
Load voltage regulation (10%~100%) -
5V output types ->
9V, 12V and 15V output types ->
Ripple/Noise @ 20 MHz BW
Efficiency at full load
Isolation voltage
Short circuit protection
Operating temperature range
Storage temperature range
Isolation resistance
Isolation capacity
Package weight
ReFlow temp.
www.rsg-electronic.de
±10%
±5%
1.2% typ. / 1% of Vin
15% max.
10% max.
±150 mV p-p max.
70% min.
1000 VDC min.
1.0 sec.
-40°C~85°C
-55°C~125°C
10 GOhm min.
32 pF typ.
1.8 g
240°C max. (10~30 sec.)
DS3-0505D
±100 mA
RSG XXXX
Note: Add/H after P/N for isolation 2kVDC
PACKAGE STYLE AND PINNING (mm)
Unit: mm
Tol.: ±0.25 mm
SELECTION GUIDE
Part Number
DS3-XX05D
DS3-XX09D
DS3-XX12D
DS3-XX15D
DS3-XX24D
Input Voltage (VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output Voltage (VDC)
±5
±9
±12
±15
±24
Output Current (mA)
±200
±111
±83
±66
±42
Efficiency (%)
70
72
72
72
74
Issue 0508. Subject to change without notice.
