SW-209
Matched GaAs SPST Switch
DC - 3.0 GHz
Features
•
Fast Switching Speed, 6 nS Typical
•
Ultra Low DC Power Consumption
•
Small Package Size, 0.180” (4.6mm) Sq.
Rev. V3
Functional Schematic
Description
Ordering Information
Part Number
SW-209 PIN
SW-209B PIN
SW-209G PIN
Pin Configuration
Package
Ceramic (CR-3)
Screened to MIL-STD-883C, Method
5008.4, Table VII, Class B Hybrid
Ceramic Gull Winged (CR-10)
Absolute Maximum Ratings
1,2
Parameter
Max Input Power
0.05 GHz
0.5-2.0 GHz
Control Voltage
Operating Temperature
Storage Temperature
Truth Table
Control Inputs
A
1
0
Absolute Maximum
+27 dBm
+34 dBm
+5V, -8.5 V
-55°C to +125°C
-65°C to +150°C
Condition of Switch
RF1 to RF2
ON
OFF
B
0
1
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM does not recommend sustained operation near
these survivability limits.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
SW-209
Matched GaAs SPST Switch
DC - 3.0 GHz
Electrical Specifications: -55°C to 85°C
Parameter
Insertion Loss
Rev. V3
Test Conditions
DC - 3.0 GHz
DC - 2.0 GHz
DC - 1.0 GHz
DC - 0.5 GHz
DC - 3.0 GHz
DC - 2.0 GHz
DC - 1.0 GHz
DC - 0.5 GHz
DC - 3.0 GHz
DC - 2.0 GHz
DC - 1.0 GHz
DC - 0.5 GHz
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF, 50% Control to 10% RF
In-Band
0.5 to 3.0 GHz, 0/-5 V
0.05 GHz, 0/-5 V
0.5 to 3.0 GHz, 0/-8 V
0.05 GHz, 0/-8 V
0.5 to 3.0 GHz
0.05 GHz
0.5 to 3.0 GHz
0.05 GHz
V
IN
Low (0 to -0.2 V)
V
IN
High (-5 V @ 50 µA Typ. to -8 V)
Units
dB
dB
dB
dB
dB
dB
dB
dB
Ratio
Ratio
Ratio
Ratio
nS
nS
mV
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
µA
µA
Min.
—
—
—
—
27
32
40
55
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
—
—
—
—
—
—
—
—
—
—
—
—
3
6
30
+27
+21
+33
+26
+62
+68
+40
+46
—
—
Max.
1.5
1.2
1.1
0.9
—
—
—
—
1.6:1
1.5:1
1.2:1
1.2:1
—
—
—
—
—
—
—
—
—
—
—
20
300
Isolation
VSWR
Trise, Tfall
Ton, Toff
Transients
1 dB Compression Point
IP2
IP3
Control Current
3.
All specification apply with 50
Ω
impedance connected to all RF ports with 0 and -5 Vdc control voltages.

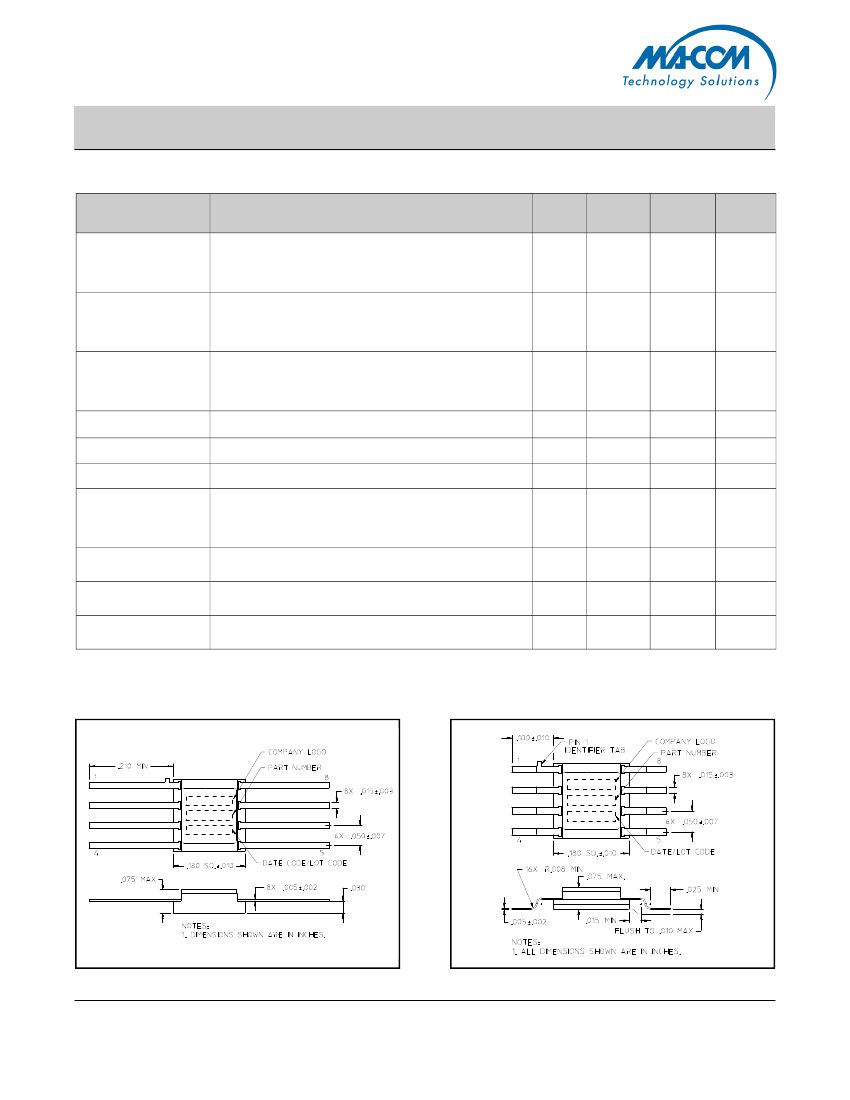

CR-3
CR-10
2
