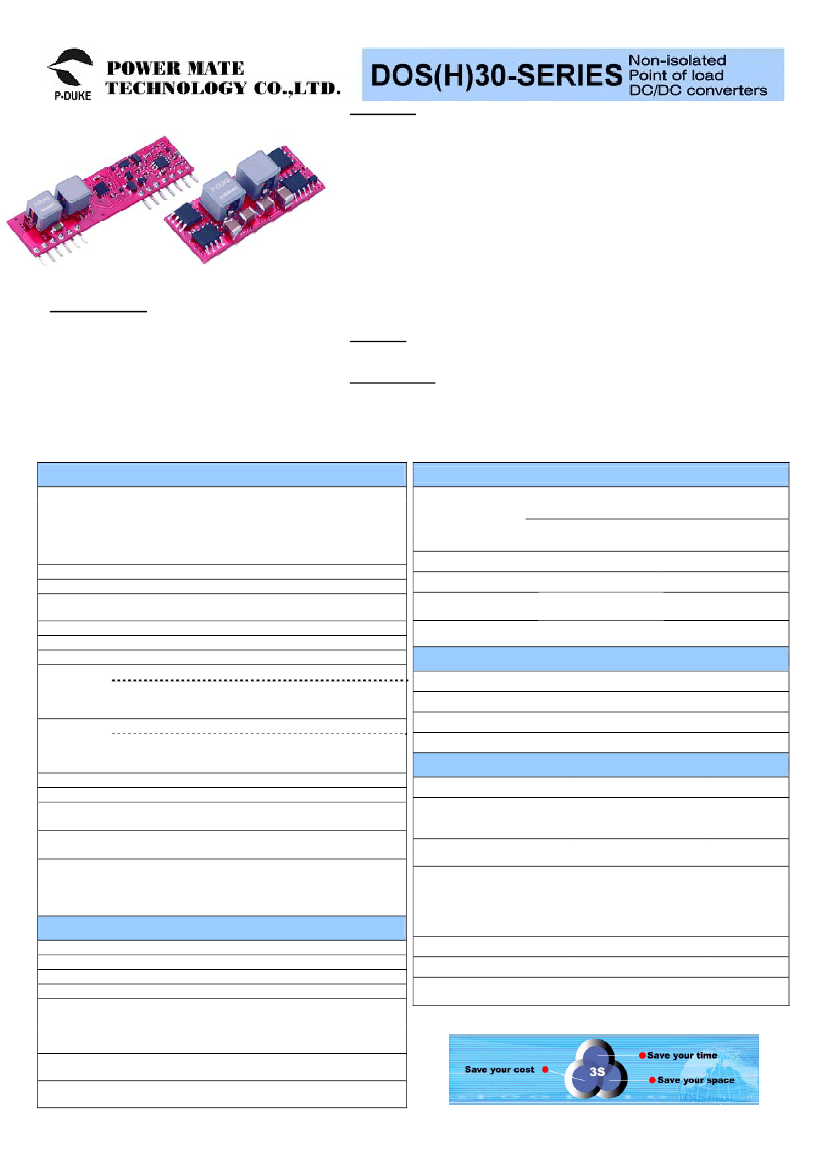

FEATURES
•
OUTPUT CURRENT UP TO 30A
•
SMALL SIZE AND LOW PROFILE :
1.30”
X
0.53”
X
0.35”(SMD) ; 2.00”
X
0.50”
X
0.35” (SIP)
•
HIGH EFFICIENCY UP TO 93%@5VIN, 3.3Vo, FULL LOAD
•
DOS(H)30-05T : 4.5VDC TO 5.5VDC INPUT; 0.8VDC TO 3.63VDC OUTPUT
DOS30-12T : 6.0VDC TO 14.0VDC INPUT; 0.8VDC TO 3.63VDC OUTPUT
DOH30-12T : 6.0VDC TO 14.0VDC INPUT; 0.8VDC TO 5.5VDC OUTPUT
OUTPUT VOLTAGE PROGRAMMABLE VIA EXTERNAL RESISTOR
•
FIXED SWITCHING FREQUENCY (300KHZ)
•
MONOTONIC START-UP INTO PRE-BIASED OUTPUT
•
OUTPUT VOLTAGE SEQUENCING
•
PARALLEL OPERATION WITH ACTIVE CURRENT SHARING
•
DESIGN MEETS UL60950-1, EN60950-1 AND IEC60950-1
•
ISO9001 CERTIFIED MANUFACTURING FACILITIES
•
COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
1
/
3
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Distributed Power Architectures
Semiconductor Equipment
Microprocessor Power Applications
OPTIONS
Positive Logic Remote on/off, Current Share, Extra GND Pin, Long Pins
DESCRIPTION
DOS30 (SMD type), DOH30 (SIP type) are non-isolated DC/DC converters that can
deliver up to 30A of output current with full load efficiency of 93% at 5.0V input and 3.3V
output.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
DOS30-05T
DOH30-05T
DOS30-12T
All specifications are typical at nominal input, 3.3Vo, full load and 25ºC otherwise noted
INPUT SPECIFICATIONS
30A max.
DOS30-05T
Vin(nom) =5V
4.5 – 5.5VDC
30A max.
DOH30-05T
Vin,min=Vo(set)+1.5V
0.8≦Vo≦2.75V
30A max. Input voltage range
Output current
DOS30-12T
Vin(nom) =12V 6.0 – 14.0VDC
2.75<Vo≦3.63V
20A max.
DOH30-12T
Vin,min=Vo(set)+2.4V
DOH30-12T 0.8≦Vo≦2.75V
30A max.
2.75<Vo≦5.5V
25A max. Maximum input current
Vin(min.) to Vin(max.); Io=Io(max.)
27A
Voltage accuracy
Full load and Vin(nom.)
± 1.5%Vo(set)
C filter
Minimum load
0% Input filter (Note 5)
Start-up voltage
Input under-voltage
4.4V,typ
Vin=Vin(min.) to Vin(max.)
Line regulation
± 0.1%Vo(set),typ. lockout
4.3V,typ
Shutdown voltage
at Full Load
Input reflected ripple
Load regulation
No Load to Full Load
± 0.4%Vo(set),typ.
5~20MHz, 1uH source impedance
100mAp-p
Ripple and noise (Note 2) 20MHz bandwidth
75mVp-p current (Note 6)
Temperature coefficient
±0.5%,
typ.
ENVIRONMENTAL SPECIFICATIONS
ΔIo
/Δt = 5A/uS ,Vin(nom.) Peak deviation
350mV,typ.
Dynamic load
Operating ambient temperature
–40ºC ~ +85ºC(with derating)
Load change step
Setting time
response
(50% to 100% or
(Vo<10%peak
25uS,typ. Storage temperature range
–55ºC ~ +125ºC
(Note 2)
100% to 50% of Io(max)) deviation)
MIL-STD-810F
ΔIo
/Δt = 5A/uS ,Vin(nom.) Peak deviation
250mV,typ. Thermal shock
Dynamic load
Load change step
Setting time
Over temperature protection
125ºC,typ.
response
(50% to 100% or
(Vo<10%peak
40uS,typ.
(Note 3)
FEATURE SPECIFICATIONS
100% to 50% of Io(max.)) deviation)
Output current limit
150%,typ.
Sequencing delay time (Note 7)
10msec,min.
Output short-circuit current
Hiccup, Automatics recovery
∣V
SEQ
－Vo∣
ESR≧1mΩ
2000uF,max. Tracking accuracy
External load capacitance
Power-up (2V/ms)
Vin(min.) to Vin(max.); Io(min.) 100mV,typ.
ESR≧10mΩ
10000uF,max.
200mV,typ.
Power-down (1V/ms) to Io(max.); V
SEQ
< Vo.
Vin=Vin(min.) to
3%Vo(set), max. Active load share (option)
Output voltage overshoot-startup
Accuracy
10% Io
Vin(max.); F.L.
Number of units in parallel
5,max.
(Note 8)
DOS30-05T
0.8V ~ 3.63V
Remote ON/OFF (Note 9)
Voltage adjustability (see fig.1) DOH30-05T
0.8V ~ 3.63V
Negative logic(standard)
ON = -0.3V < Vr < 1.2V
I
IN
=200μA,max.
0.8V ~ 3.63V
(Note 4)
DOS30-12T
OFF
=
3.0V < Vr < Vin(max.) I
IN
=3.3mA,max.
0.8V ~ 5.5V
DOH30-12T
Positive logic(option)
ON = 3.0V < Vr < Vin(max.) I
IN
=200μA,max.
GENERAL SPECIFICATIONS
OFF= -0.3V < Vr < 1.2V
I
IN
=3.3mA,max.
Efficiency
Isolation voltage
Switching frequency
Design meet safety standard
Dimensions
See table Remote sense range
None Rise time
Time for Vo to rise from 10% to 90%of Vo(set)
300KHz, typ.
Case 1 (Note 10)
IEC60950-1, UL60950-1, EN60950-1 Turn-on delay time
Case 2 (Note 11)
1.30 X 0.53 X 0.35 Inch
SMD
(33.0 X 13.5 X 8.8 mm)
2.00 X 0.50 X 0.35 Inch
SIP
(50.8 X 12.7 X 8.8 mm)
6.0g(0.21oz)
SMD
7.0g(0.25oz)
SIP
6
BELLCORE TR-NWT-000332
3.145 x 10 hrs
5
MIL-HDBK-217F
3.626 x 10 hrs
0.5V,max.
10ms,max.
2.5ms,typ.
2.5ms,typ.
Weight
MTBF (Note 1)
2
Model Name
DOS30-05T
DOH30-05T
DOS30-12T
DOH30-12T
/
3
Package
SMD
SIP
SMD
SIP
Input Voltage
4.5 ~ 5.5Vdc
Vin,min=Vo(set)+1.5V
Output Voltage
0.8 ~ 3.63Vdc
0.8 ~ 3.63Vdc
0.8
≦ Vo ≦
2.75Vdc
2.75 < Vo
≦
3.63Vdc
0.8
≦ Vo ≦
2.75Vdc
2.75 < Vo
≦
5.5Vdc
Output Current
0A
0A
0A
0A
30A
30A
30A
20A
30A
25A
Efficiency (%)
93%
93%
90%
90%
Min. Load Max. Load Vin(nom.), 3.3Vdc, Full Load
6.0 ~ 14.0Vdc
Vin,min=Vo(set)+2.4V
Note
1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC.
MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load(Ground, Benign, controlled environment).
2. External with C
out
= 1uF ceramic//10uF tantalum capacitors.
3. External with C
out
= 2×150uF polymer capacitors.
4. Output voltage programmable from 0.8V to 5.0V by connecting a single resistor (shown as Rtrim in Table 1)
between the TRIM and GND pins of the module. To calculate the value of the resistor
Rtrim
for a particular
output voltage
Vo,
use the following equation:
1200
-100
Ω
Rtrim
=
Vo
– 0.80
5. To make sure the module is stable, input external capacitors is necessary that minimize input ripple voltage of
the module.
6. To minimize input reflected ripple. External
π
filter is recommended at the input of the module.
The filter is shown as figure2.
7. Delay from Vin,min to application of voltage on SEQ pin.
8. Selecting current share function that the regulations may not meet listed specification.
9. The On/Off signal is referenced to ground. The standard remote On/Off logic of the device is negative logic.
Adding a device code suffix “-P” is option for positive logic of remote On/Off.
10. Case 1 :On/Off input is set to logic low (module on) and then input power is applied (delay from instant at which Vin=Vin(min) until Vo=10% of
Vo(set))
11. Case 2 :Input power is applied for at least one second and then the On/Off input is set to logic low (delay form instant at which Von/off=0.3V
until Vo=10% of Vo(set))
[
]
CAUTION:
This power module is not internally fused. An input line fuse must always be used.

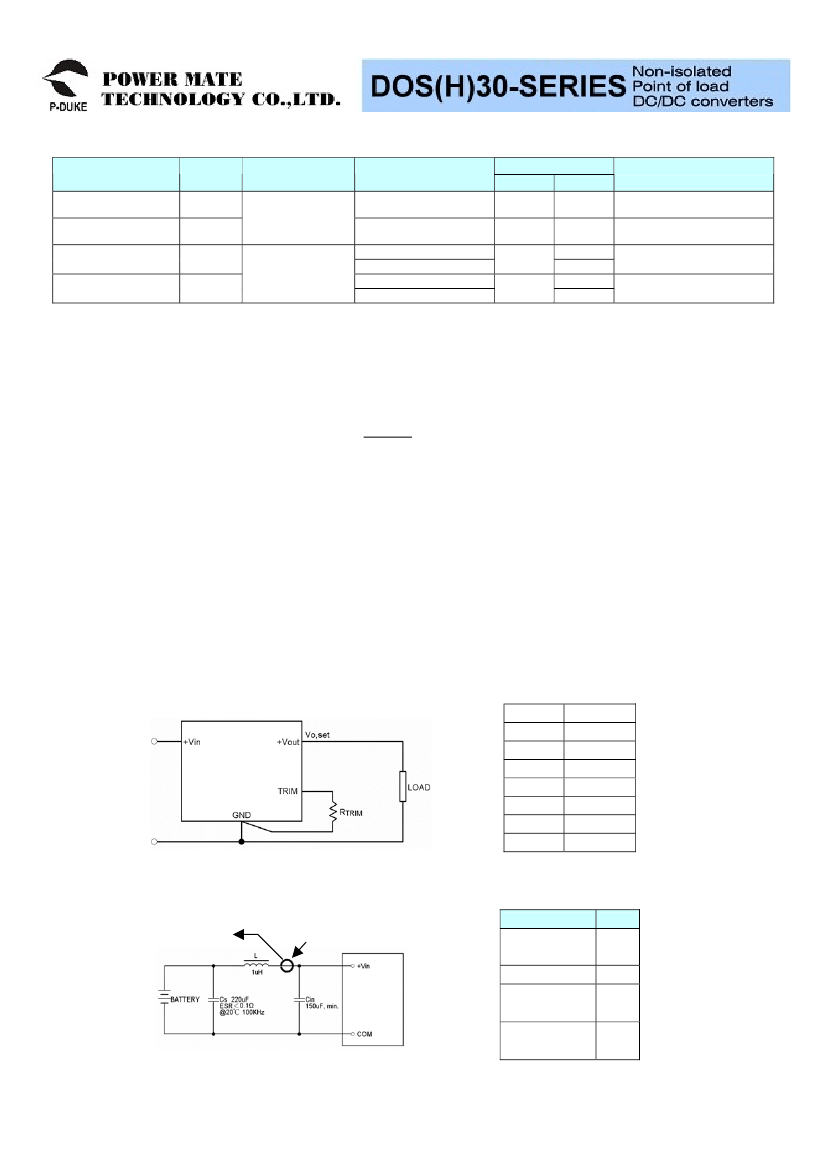

Table 1.
Vo(set) (V)
0.8
1.2
1.5
1.8
2.5
3.3
5.0
Figure 1.
Table 2.
TO OSCILLOSCOPE
Trim Table
Rtrim (Ω)
Open
2900
1614
1100
605
380
185
Device Options
Suffix
-P
-S
-E
-L
Option
CURRENT PROBE
Remote On/Off
Positive Logic
Current Share
Extra GND pin
2 extra GND pins
only for SMD TYPE
Long Pins
Figure 2.

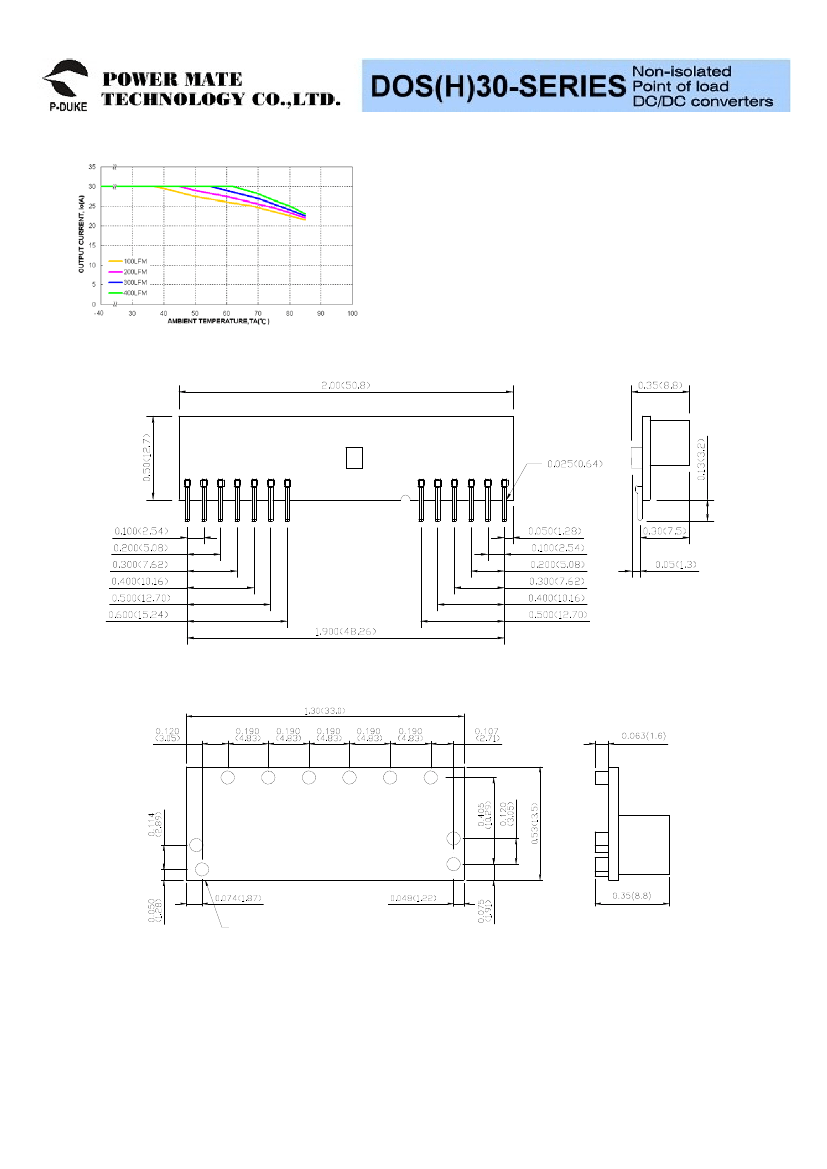

5.08mm±0.25mm
only for SIP TYPE
FPGA/CPLD
