MY89C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MY89C

MY89C: Description2000 MHz - 18000 MHz RF/MICROWAVE TRIPLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size139KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

MY89C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MY89C	-	-	View	Buy Now

MY89C Overview

2000 MHz - 18000 MHz RF/MICROWAVE TRIPLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX

MY89C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MACOM
Reach Compliance Code	compli
Other features	SMA-F, I/P POWER-MAX (PEAK)=26DBM
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	11 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	TRIPLE BALANCED

Preview

Download Datasheet

View All

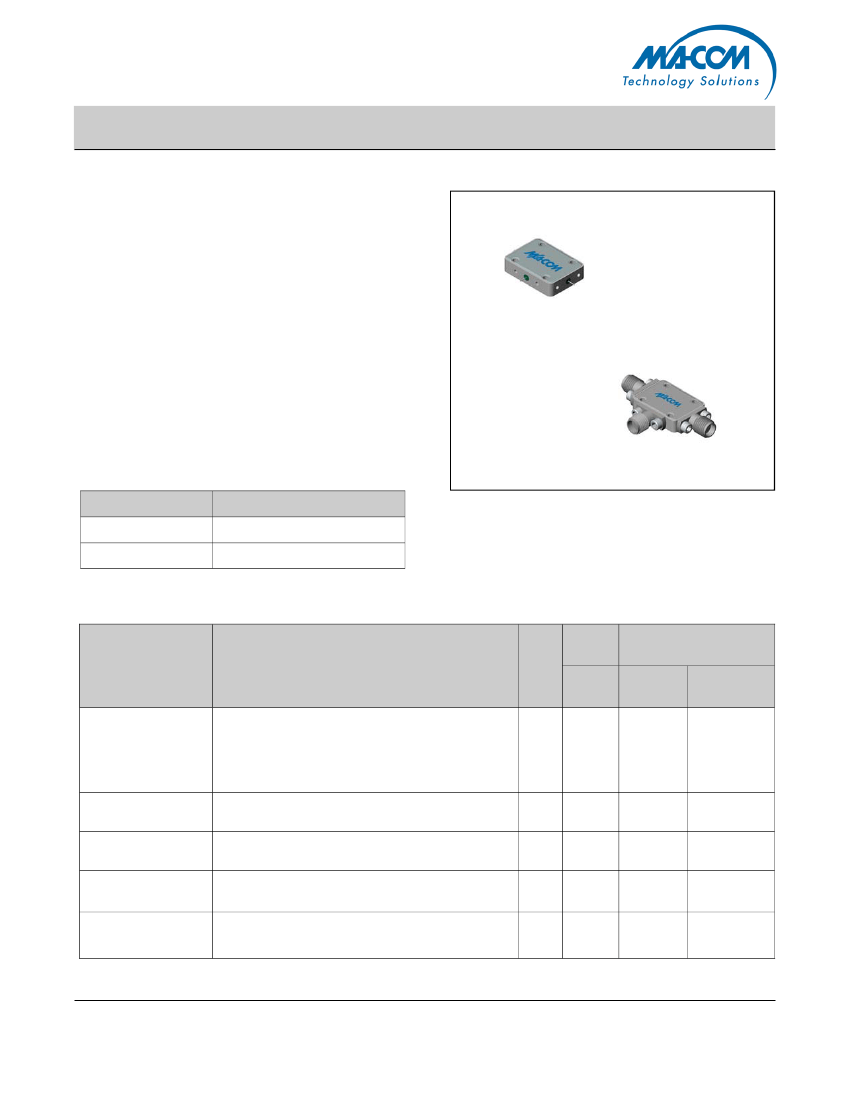

MY89 / MY89C

Triple-Balanced Mixer

Rev. V3

Features

•

LO 2 TO 18 GHz

RF 2 TO 18 GHz

IF 1 TO 8 GHz

LO DRIVE: +10 dBm (NOMINAL)

WIDE BANDWIDTH

Product Image

Description

MY89 is a triple balanced mixer, designed for use in military,

commercial and test equipment applications. The design utilizes

Schottky ring quad diodes and broadband soft dielectric baluns to

attain excellent performance. The use of high temperature solder

assembly processes used internally makes it ideal for use in

manual, semi-automated assembly. Environmental screening

available to MIL-STD-883, MIL-STD-202 or MIL-DTL-28837,

consult factory.

Ordering Information

Part Number

MY89

MY89C

Package

Versapac

SMA Connectorized

Electrical Specifications: Z

= 50Ω Lo = +10 dBm (Downconverter Application only)

Typical

Parameter

Test Conditions

Units

+25ºC

-54º to +85ºC

Guaranteed

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

fR = 2 to 10 GHz, fL = 2 to 18 GHz, fI = 1 to 8 GHz

fR = 10 to 18 GHz, fL = 2 to 18 GHz, fI = 2 to 8 GHz

7.5

8.0

10.0

10.5

11.0

Isolation, L to R (min)

fL = 2 to 18 GHz

Isolation, L to I (min)

fL = 2 to 18 GHz

1 dB Conversion Comp.

fL = +10 dBm

fR1 = 6 GHz at –6 dBm, fR2 = 6.01 GHz at –6 dBm, fL = 10 GHz at +10 dBm

fR1 = 15 GHz at –6 dBm, fR2 = 15.01 GHz at –6 dBm, fL =18 GHz at +10 dBm

dBm

+14

+18.5

Input IP3

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

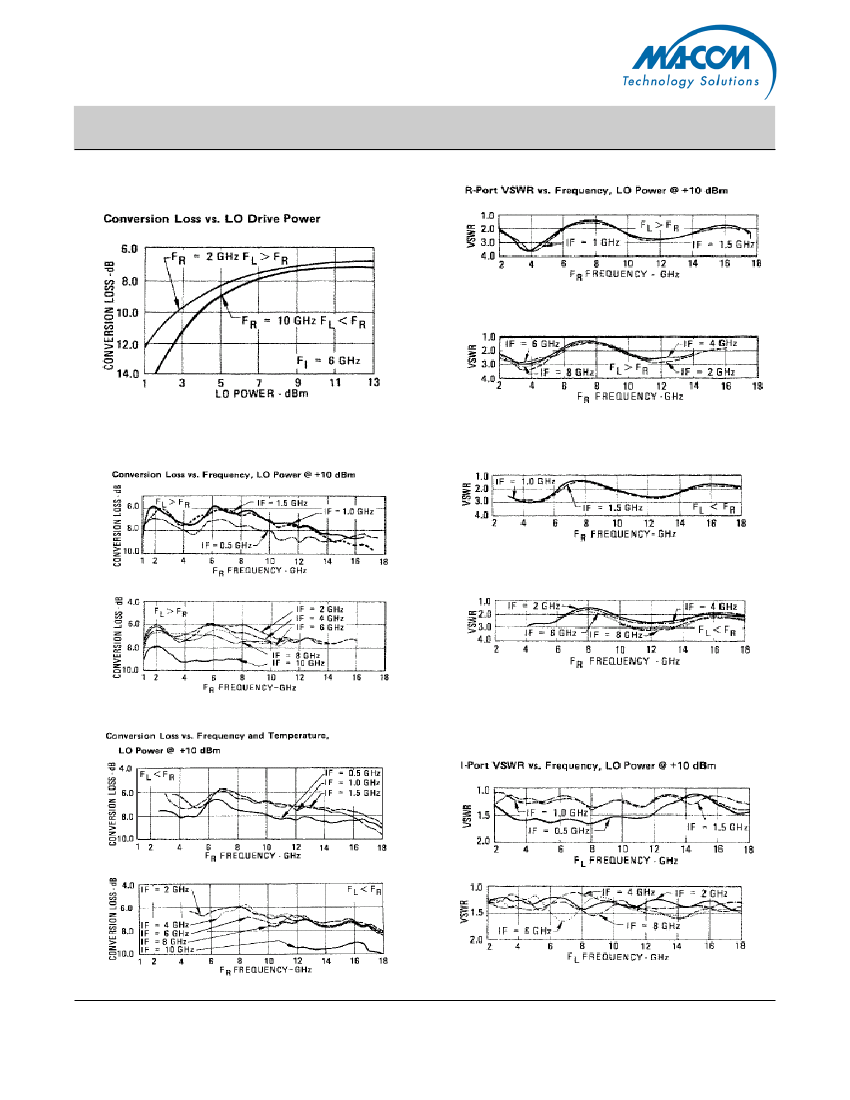

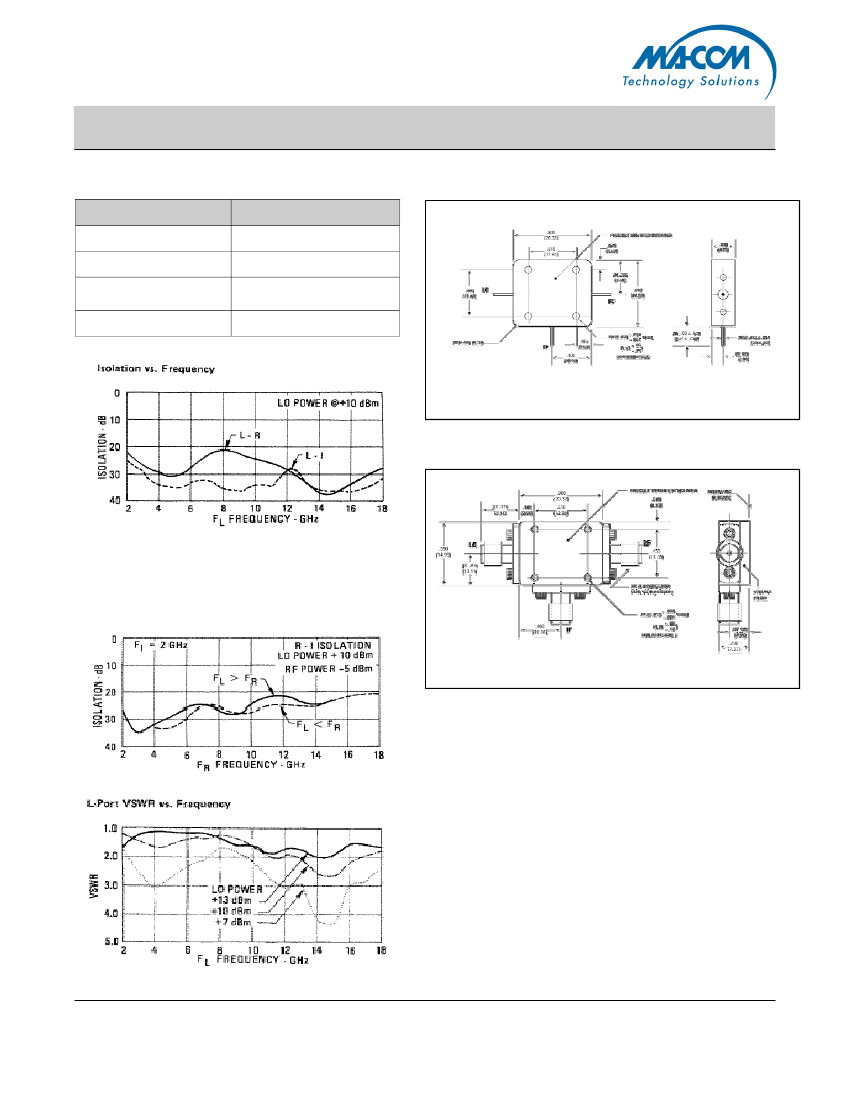

MY89C Related Products

	MY89C	MY89C_15
Description	2000 MHz - 18000 MHz RF/MICROWAVE TRIPLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX	2000 MHz - 18000 MHz RF/MICROWAVE TRIPLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX
structure	COAXIAL	COAXIAL
Maximum operating frequency	18000 MHz	18000 MHz
Maximum operating temperature	100 °C	100 Cel
Minimum operating temperature	-54 °C	-54 Cel
