1159-2-03-2: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1159-2-03-2 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking

1159-2-03-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.136 inch
subject depth	0.185 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	1159
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

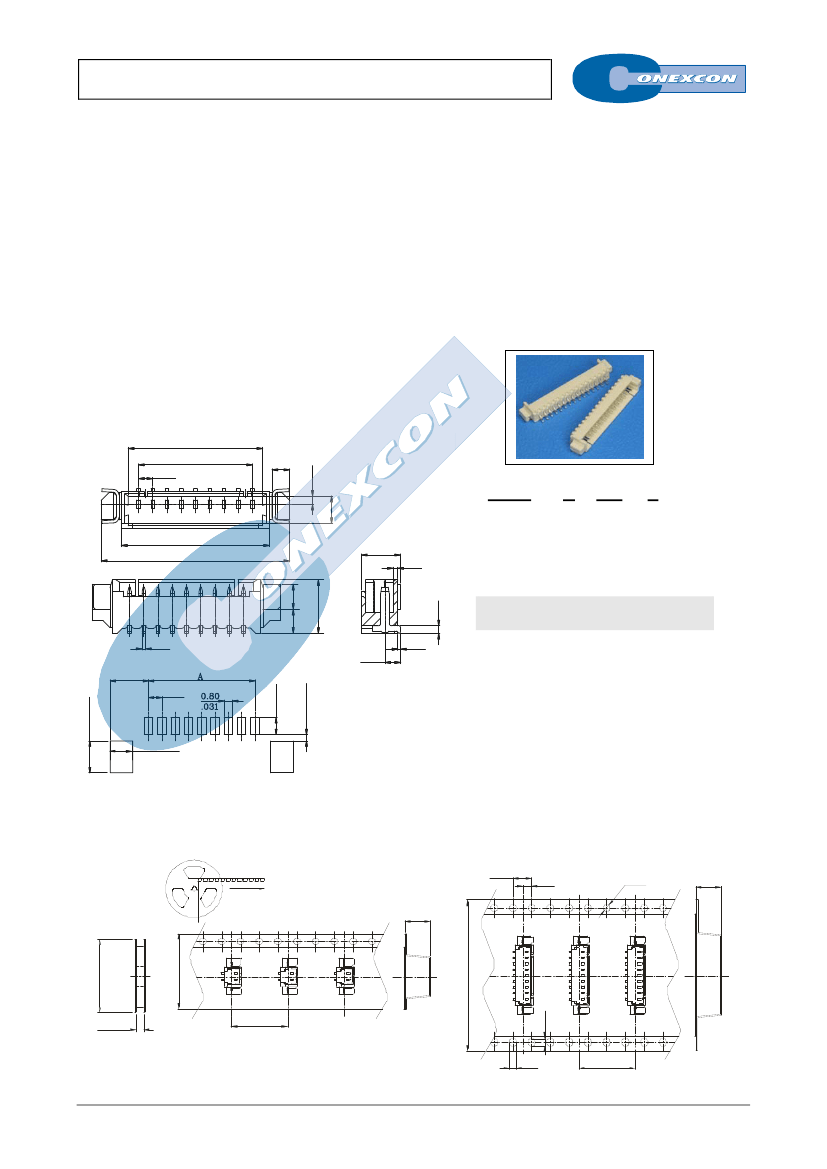

SINGLE ROW SIDE ENTRY SMT HEADER

1159 SERIES.

1.25 (0.049”) mm pitch.

General Features

Electrical Features



Available in 2 through 15 circuits

Mates with 1.25 mm crimp housing 1154 serie

Tin plated pin

Locking slots provide secure mating

Polarization and low profile



Voltage rating: < 125V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 250 V AC/minute

Insulation Resistance: >100 MΩ

Materials

Insulator: Polyester 66 UL 94 V-0

Contact: Tin plated brass

Operating temperature: -25ºC to +85ºC

RoHS Compliant

Mechanical features

Pin retention force to insulator: > 0.80 Kg f

Durability: 25 cycles

Dimension Information

1.25

.049

0 .7 25

.02 9

1.55

.061

2 .4 0

1159 -

.0 94

T- XX- 1

3.45

.136

0.40

.016

1. Connector Serie

2. (T) Contacts Plating

0.65

02 6

2.10 2.20

.083 .0 87

4.70

.18 5



T =

Tin plated.

RECOMMENDED FINISH

0.30

.012

3.6±0.1

1.6 Min.

0.6± 0.1

1.25

.049

.024 ±.004

.0 63

.142±.004

.1 8±.0 04

3± 0.10

1.375

.054

0.25

.010

3. (XX) Number of circuits



Available in 2 through 15 circuits

4. (E) Packing Options



E =

Pad + Tube

E =

Pad + Reel

Dimensions:

(In mm.)

= 1.25 x (XX-1)

= 1.25 x (XX)+1.85

= 1.25 x (XX)+1.90

= 1.25 x (XX)+5.15

(XX) = Number of circuits

2.1±0.1

.083±.004

RECOMMENDED PCB LAYOUT

4.00

.157

Feeding direction

2.00

.078

ø1.50

.060

6.00

.236

6.00

.236

3 30 .0

1 3.0 0

1 .70

W+0.40

W+0.15

DIM. W:

2 and 3 circuits = 16.00 mm

4 to 7 circuits = 24.00 mm

12.00

.472

Connectors 2 to 7 Circuits

8 to 12 circuits = 32.00 mm

13 to 15 circuits = 44.00 mm

1.50

.060

.0 6 7

12.00

.472

Connectors 8 to 15 Circuits

A-XX
