1377-2-21-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1377-2-21-1

1377-2-21-1: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1377-2-21-1 Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

1377-2-21-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.071 inch
subject depth	0.169 inch
body length	1.05 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1377
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	21
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

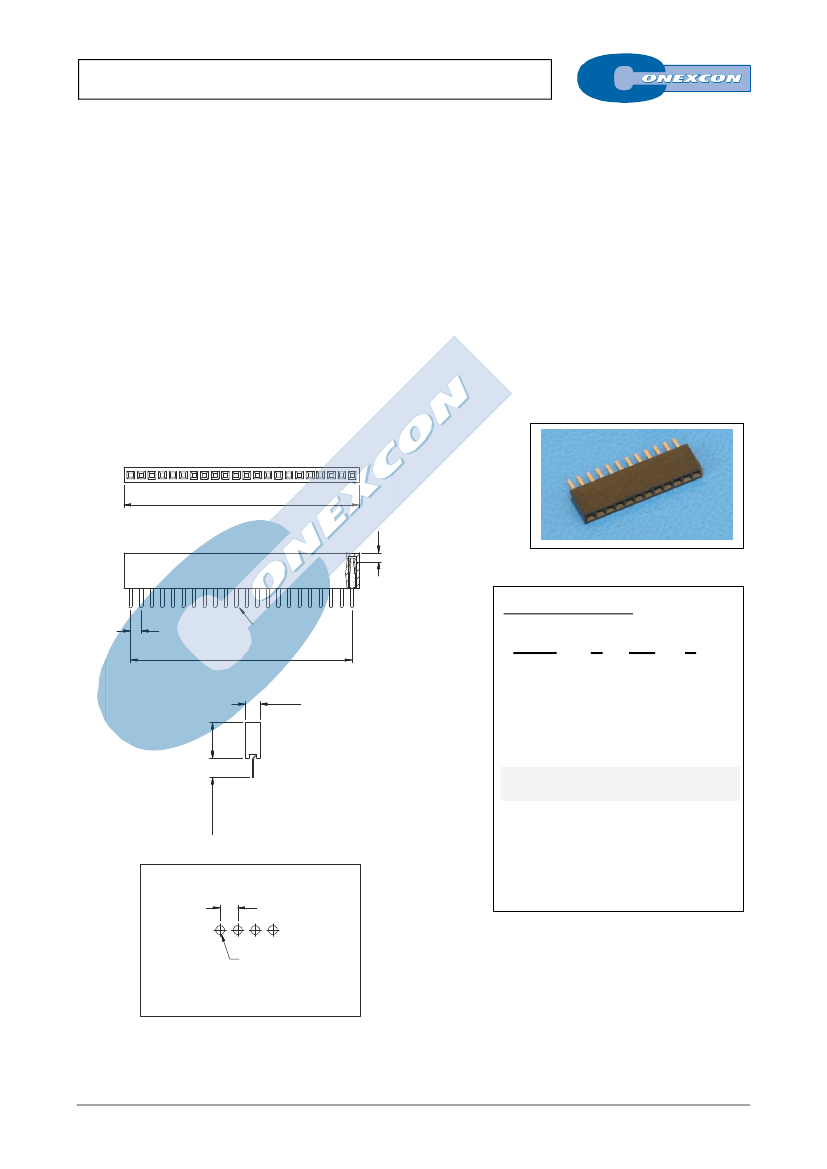

SINGLE ROW VERTICAL SOCKET

1377 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with pin headers 1.27 mm pitch, 1350, 1351,

1352, 1353 and 1374 series

Accept 0.40 square pin

Low profile 4,30 mm hight

Dual beam contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical features

Insertion force receptacle/plug: < 0,20 Kgf/pin

Unmating force receptacle/plug: > 0,015 Kgf/pin

Contact retention force to housing: > 0,15 Kgf/pin

Durability: 50 cycles

Dimension Information

1.12

Ordering Information:

1.27±0.10

Pin 0.42 x 0.15

1377 -

1.80

T-

XX-

1. Connector Series

4.30

2. (T) Contact Plating



2.30±0.20

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



1.27

3. (XX) Number of circuits

Available in 2 through 40 circuits

ø 0.65

Dimensions:

(In mm.)

RECOMMENDED HOLE PATTERN

= 1.27 x (XX*-1)

= 1.27 x (XX)

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE

Recommended Resources

Single power supply and low power consumption instrument amplification circuit diagram with stable performance

Relay power saving circuit 5b

Multiple groups of high-power colored light chain circuits that flash in turn (Part 2)

FET FM wireless microphone circuit

Infinitely dimmable desk lamp circuit

Multi-point motor control circuit diagram

SOPC Beginner's Tutorial: [i=s]This post was last edited by paulhyde on 2014-9-15 09:05[/i] I hope you like it, it's very good!...; altera Electronics Design Contest

MACH3: [align=left] I need help on how to do this, preferably with pictures. A 3-axis milling machine only needs 3 input pins to connect to Mach3 (a gantry machine needs 4 - see slave axis). The two switches...; 陈水鱼 DSP and ARM Processors

GD32307E-START Hardware IIC lights up 0.96'' OLED (05): [i=s]This post was last edited by trucy on 2020-10-22 15:51[/i]In response to everyone's needs, the previous article IO simulated I2C to light up OLED and changed to hardware i2c (i2c0) https://bbs.ee...; trucy GD32 MCU

EDA QQ group (83962599): I have established a logic research and development exchange platform for everyone to communicate together. Welcome everyone to join and work together for the logic cause of the motherland...; SBS FPGA/CPLD

Where can I find the complete version of Keil?: The 2k code limit cannot be used!...; chent1984 Embedded System

How to use the information memory in the MSP430 chip as power-off data storage (EEPROM): [b]How to make good use of the information memory in the MSP430 chip as power-off data storage (EEPROM) Reposted from Deyisupport Author [color=#0000ff]arm999 [/color] Very good, with detailed notes i...; hanskying666 Microcontroller MCU
