2018-3131 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2018-3131

2018-3131: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

2018-3131 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug

2018-3131 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.079 inch
subject depth	0.283 inch
body length	1.031 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	4.8928 N
insulator material	NYLON
Manufacturer's serial number	2018
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
polarization key	POLARIZED KEY
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	13
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

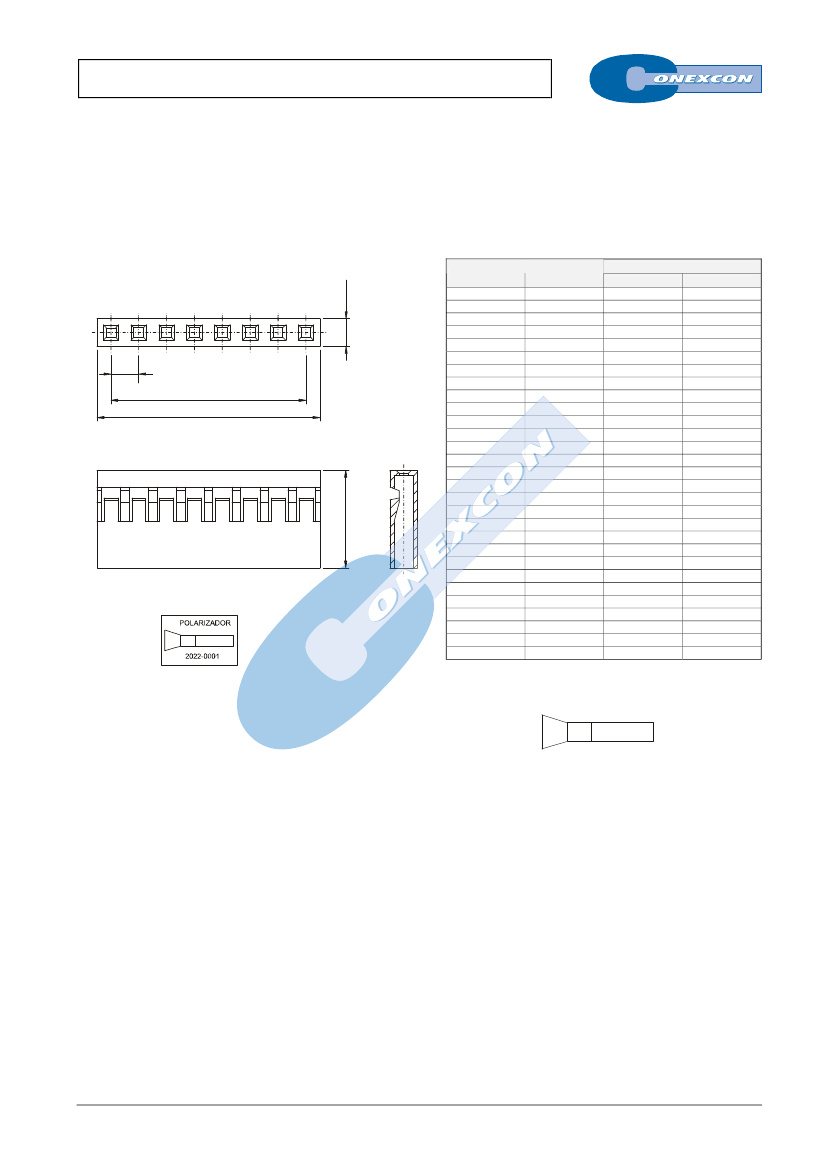

SINGLE ROW CRIMP TYPE SOCKET

2018 SERIES.

2.00mm(0.079”). Crimp Type Socket

Features

Available in 2 through 30 circuits

Material: Nylon UL94V-1

Accepts 2023 crimp terminal

Dimensional Information

Mates with 2.00mm(.079”) single row headers

Low profile

Optional: Polarising key 2022 series

Ordering and Dimensional Information

Circuit Size

Part Number

2018- 3021

2018- 3031

2018- 3041

2018- 3051

2018- 3061

2018- 3071

2018- 3081

2018- 3091

2018- 3101

2018- 3111

2018- 3121

2018- 3131

2018- 3141

2018- 3151

2018- 3161

2018- 3171

2018- 3181

2018- 3191

2018- 3201

2018- 3211

2018- 3221

2018- 3231

2018- 3241

2018- 3251

2018- 3261

2018- 3271

2018- 3281

2018- 3291

2018- 3301

Dimensions

2,00(0,079)

4,00(0,157)

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

30,00(1,181)

32,00(1,260)

34,00(1,339)

36,00(1,417)

38,00(1,496)

40,00(1,575)

42,00(1,654)

44,00(1,732)

46,00(1,811)

48,00(1,890)

50,00(1,969)

52,00(2,047)

54,00(2,126)

56,00(2,205)

58,00(2,283)

4,20(0,165)

6,20(0,244)

8,20(0,323)

10,20(0,402)

12,20(0,480)

14,20(0,559)

16,20(0,638)

18,20(0,717)

20,20(0,795)

22,20(0,874)

24,20(0,953)

26,20(1,031)

28,20(1,110)

30,20(1,189)

32,20(1,268)

34,20(1,346)

36,20(1,425)

38,20(1,504)

40,20(1,583)

42,20(1,661)

44,20(1,740)

46,20(1,819)

48,20(1,898)

50,20(1,976)

52,20(2,055)

54,20(2,134)

56,20(2,213)

58,20(2,291)

60,20(2,370)

2.00

.079

2.00

.079

7.20

.283

POLARISING KEY

P/N. 2022-0001

FULL LINE CATALOGUE

C-XX
