RoHS
Compliant
E-Series I/Q Modulator
935.2 – 959.8 MHz
Features
•
•
•
•
•
•
•
High Carrier Suppression
High 3 I and 5 I Suppression
LO Power + 10 dBm Typical
Surface Mount
Tape and reel packaging available
260°C Reflow Compatible
RoHS* compliant version of the EKIN2-960
MAMO-007252-IN2960
V1

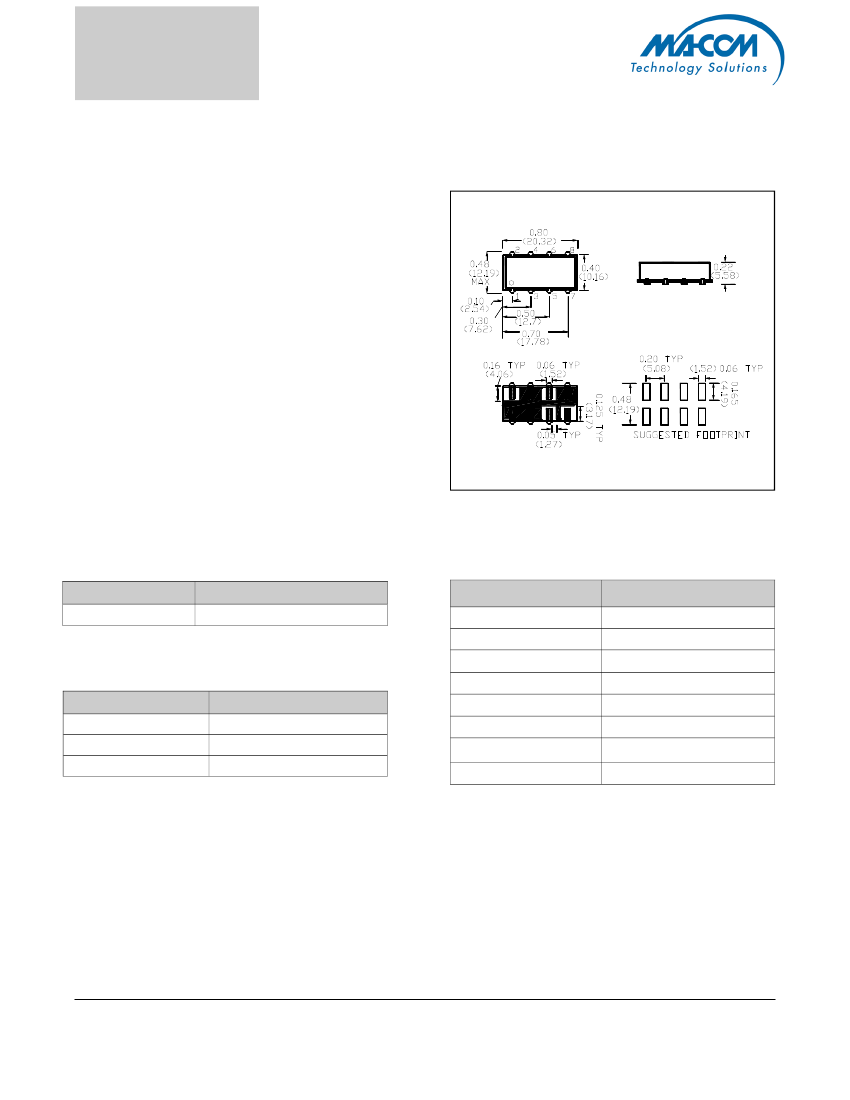

SM - 28 Package
Description
M/A-COM’s MAMO-007252-IN2960 is a RoHS Compli-
ant passive, high performance surface mount Modula-
tor. It is ideally suited for Direct Modulation in GSM / E-
GSM Cellular Base Stations.
The MAMO-007252-IN2960 is available in a SM-28
surface mount package and is designed to be utilized
in both RoHS and standard reflow profiles. Parts are
packaged in tape & reel.
Ordering Information
Part Number
MAMO-007252-IN2960
Pin Configuration
Package
Pin No.
1
2
Function
LO
Case Ground
Case Ground
Case Ground
I
Q
Case Ground
RF
Tape and Reel (300 piece Reel)
Absolute Maximum Ratings
1,2
Parameter
Impedance
Operating Temperature
Storage Temperature
3
4
5
6
7
8
Absolute Maximum
50 Ohms nominal
-55°C to +85°C
-65°C to +125°C
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM does not recommend sustained operation near
these survivability limits.
This PRELIMINARY Data Sheet contains information regarding a product M/A-COM has under development. Performance is based
on measured results and target specifications. Commitment to produce in volume is not guaranteed.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
RoHS
Compliant
E-Series I/Q Modulator
935.2 – 959.8 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω, LO = +10 dBm
Parameter
LO Frequency
I/Q Frequency
LO Carrier Suppression
SSB Rejection
Harmonic Suppression 3
x I/Q
Harmonic Suppression 5
x I/Q
Conversion Loss
(LO) Carrier Power
I/Q Drive Level
—
—
—
When Q = +90 degrees relative to I;
Lower sideband is suppressed. Re-
lated to wanted sideband power.
MAMO-007252-IN2960
V1
Test Conditions
—
—
Frequency
935.2 - 959.8
DC - 0.27
935.2 - 959.8
935.2 - 959.8
935.2 - 959.8
935.2 - 959.8
935.2 - 959.8
935.2 - 959.8
935.2 - 959.8
Units
MHz
MHz
dBc
dBc
dBc
dBc
dB
dBm
dBm
Min
—
—
—
—
—
—
—
—
—
Typ
—
—
27
34
40
55
—
+10 ± 1
-10
Max
—
—
—
—
—
—
10
—
—
Typical Performance Curves
Conversion Loss
