3911-2161 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3911-2161

3911-2161: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3911-2161 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking

3911-2161 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.307 inch
subject depth	0.7 inch
body length	2.496 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3911
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.169 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

FRICTION LOCK RIGHT ANGLE HEADER

3911 SERIES.

Features

3.96 mm. (0.156”). Square Pin Header. For PCB Solder



Mates with female header 3940 and PCB 3970,3971 series

Available with or without locking



Available in 2 through 24 circuits

Material : Polyester glas filled 6/6 UL 94V-0

1.14 mm square pin

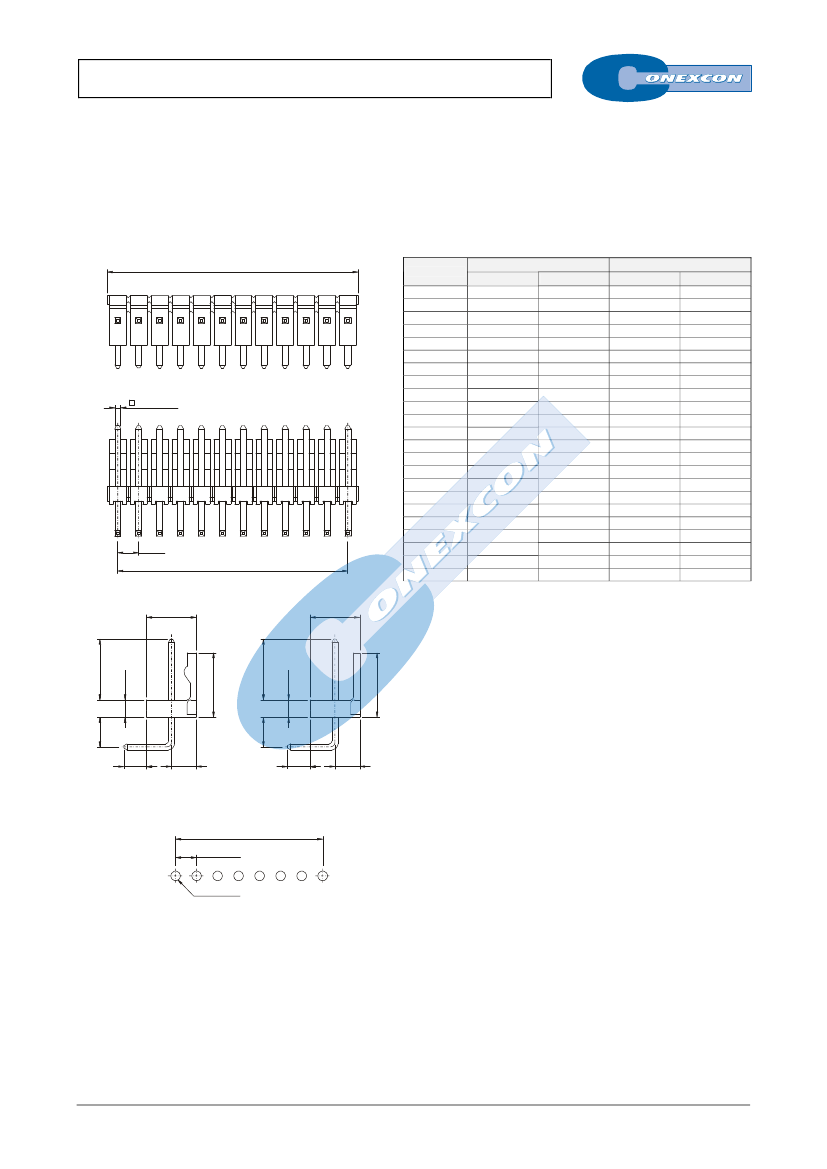

Dimensional information

Ordering and Dimensional Information

Part Number

With Locking

3911- 2021

3911- 2031

3911- 2041

3911- 2051

3911- 2061

3911- 2071

3911- 2081

3911- 2091

3911- 2101

3911- 2111

3911- 2121

3911- 2131

3911- 2141

3911- 2151

3911- 2161

3911- 2171

3911- 2181

3911- 2191

3911-2201

3911-2211

3911-2221

3911-2231

3911-2241

W/O Locking

3911- 2022

3911- 2032

3911- 2042

3911- 2052

3911- 2062

3911- 2072

3911- 2082

3911- 2092

3911- 2102

3911- 2112

3911- 2122

3911- 2132

3911- 2142

3911- 2152

3911- 2162

3911- 2172

3911- 2182

3911- 2192

3911-2202

3911-2212

3911-2222

3911-2232

3911-2242

3,96(0,156)

7,90(0,311)

11,90(0,469)

15,80(0,622)

19,80(0,780)

23,80(0,937)

27,70(1,091)

31,70(1,248)

35,60(1,402)

39,60(1,559)

43,60(1,717)

47,50(1,870)

51,50(2,028)

55,40(2,181)

59,40(2,339)

63,40(2,496)

67,30(2,650)

71,30(2,807)

75,24(2,962)

79,20(3,118)

83,16(3,274)

87,12(3,430)

91,08(3,586)

Dimensions

7,90(0,311)

11,90(0,469)

15,80(0,622)

19,80(0,780)

23,80(0,937)

27,70(1,091)

31,70(1,248)

35,60(1,402)

39,60(1,559)

43,60(1,717)

47,50(1,870)

51,50(2,028)

55,40(2,181)

59,40(2,339)

63,40(2,496)

67,30(2,650)

71,30(2,807)

75,20(2,961)

79,20(3,118)

83,16(3,274)

87,12(3,430)

91,08(3,586)

95,04(3,742)

B±0.38

Circuit Size

1.14±0.02

.045±.001

3.960

.156

A±0.25

9.4

.307

9.4

.307

.449

3.30

.130

12.30

.449

11.4

12.30

4.70

.185

3.30

.484

.130

5.40

.216

4.30

.169

With Locking

4.70

.185

.216

4.30

.169

Without Locking

A±0.1

3.96±0.05

.156±.002

ø1.80±0.05

.071±.002

RECOMMENDED HOLE DE PATTERN

FULL LINE CATALOGUE

.484

F-11
