MC-405307.2000KAG:ROHS datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> MC-405307.2000KAG:ROHS

MC-405307.2000KAG:ROHS: DescriptionQUARTZ CRYSTAL RESONATOR, 0.3072 MHz, ROHS COMPLIANT, J-LEADED, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size146KB，1 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric View All

MC-405307.2000KAG:ROHS Overview

QUARTZ CRYSTAL RESONATOR, 0.3072 MHz, ROHS COMPLIANT, J-LEADED, SMD, 4 PIN

MC-405307.2000KAG:ROHS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Seiko Epson Corporation
package instruction	ROHS COMPLIANT, J-LEADED, SMD, 4 PIN
Reach Compliance Code	unknown
Other features	BULK
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	1 µW
frequency tolerance	100 ppm
JESD-609 code	e3/e6
load capacitance	7 pF
Manufacturer's serial number	MC-405
Installation features	SURFACE MOUNT
Nominal operating frequency	0.3072 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L9.6XB4.06XH3.6 (mm)/L0.378XB0.16XH0.142 (inch)
Series resistance	6000 Ω
surface mount	YES
Terminal surface	TIN/TIN BISMUTH

Preview

Download Datasheet

View All

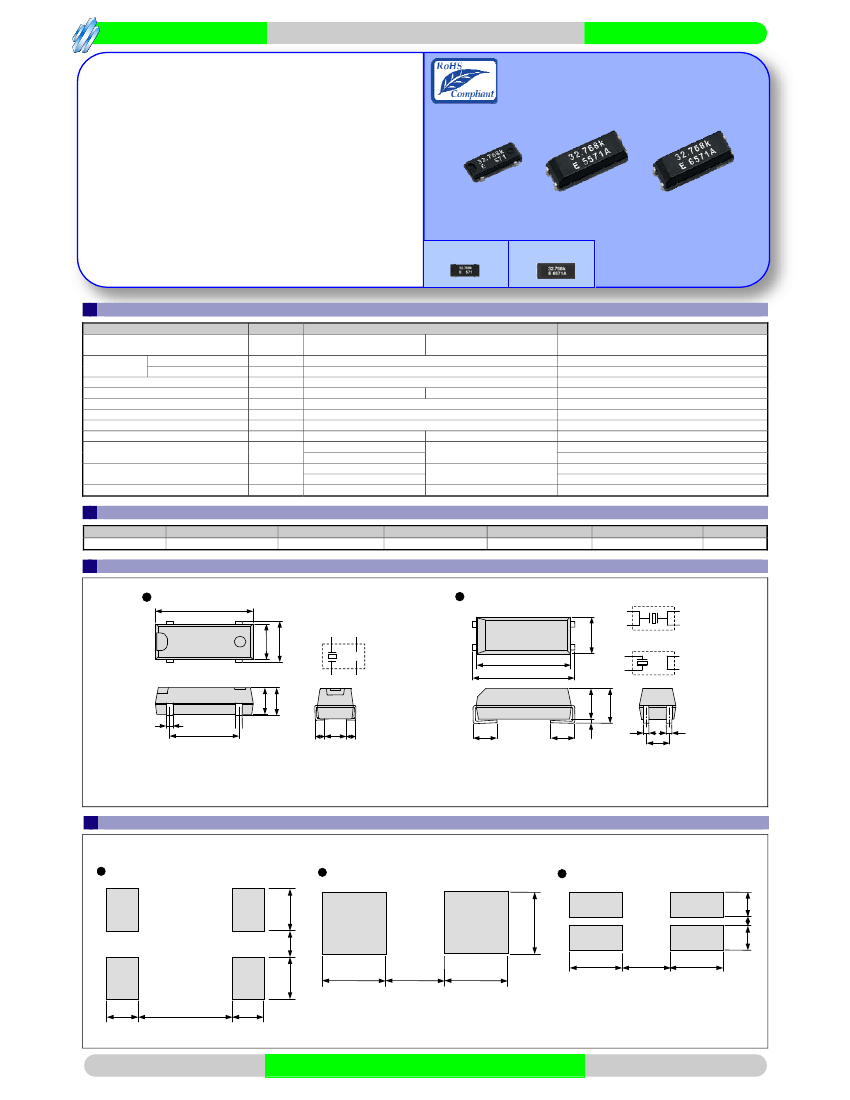

Crystal unit

Epson Toyocom

Product Number (please contact us)

MC-306

: Q13MC3061xxxx00

MC-405

: Q1xMC4051xxxx00

MC-406

: Q1xMC4061xxxx00

kHz RANGE CRYSTAL UNIT

SMD

MC - 306

MC - 405

MC - 406

xFrequency

range

xThickness

xOvertone

order

xApplications

32.768 kHz (20 kHz to 165 kHz)

8.0 × 3.8 × 2.54 t (mm) ···MC-306

10.41 × 4.06 × 3.6 t (mm) ···MC-405

406

Fundamental /Overtone (307.2 kHz)

Clock and Microcomputer

Actual size

MC-306

MC-405

406

Specifications (characteristics)

Item

Nominal frequency range

Temperature Storage temperature

range

Operating temperature

Level of drive

Frequency tolerance (standard)

Turnover temperature

Parabolic coefficient

Load capacitance

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Frequency aging

Symbol

f_nom

T_stg

T_use

f_tol

f_age

Specifications

20 kHz to 165 kHz

32.768 kHz

307.2 kHz(MC-405

406)

-55

to +125

-40

to +85

1.0

Max.

r20 u

-6

r50 u

-6

r50 u

-6

r100 u

-6

+25

qC r5 qC

-0.04

-6

/ °C

Max.

6 pF to

(standard :12.5 pF)

50 k: Max.

55 k: to 6 k:

1.8 fF Typ.

4.0 fF to 0.6 fF

2.0 fF Typ.

0.9 pF Typ.

2.0 pF to 0.6 pF

0.85 pF Typ.

-6

r3 u

10 / year Max.

r5 u

-6

/ year Max.

Remarks

Please contact us regarding available frequencies

Store as bare product after unpacking

+25

qC,

DL=0.1

Please specify

As per below table

MC-306

MC-405

406

MC-306

MC-405

406

+25

qC,

First year

Motional resistance (ESR)

Frequency

20 kHzdf_nom< 31.2 kHz 31.2 kHzdf_nom< 40 kHz 40 kHzdf_nom< 90 kHz 90 kHzdf_nom< 130 kHz 130 kHzdf_nomd165 kHz

Motional resistance

55 k: Max.

35 k: Max.

20 k: Max.

12 k: Max.

10 k: Max.

307.2 kHz

6 k: Max.

External dimensions

MC-306

8.0 Max.

4.06 Max.

Internal connection

(TOP VIEW)

(Unit:mm)

MC-405

406

Internal connection in MC-405

(TOP VIEW)

3.8 Max.

32.768 k

571

32.768 k

6571A

9.60

10.41 Max.

Internal connection in MC-406

(TOP VIEW)

3.2

2.54 Max.

2.38

0.5

5.5

(0.9)

Do not connect #2 and #3 to external device.

Metal may be exposed on the top or bottom of this product.

This will not affect any quality, reliability or electrical spec.

1.9

(0.9)

2.54

0.2 Min.

3.6 Max.

3.15

0.51

2.29

0.51

Do not connect #2 and #3 of MC-406 to external device.

The first digit of No. means:

5××××

6××××

MC-405

MC-406

Footprint (Recommended)

(Unit:mm)

MC-306

MC-405

MC-406

1.52

4.1

3.9

4.1

1.9

1.3

4.2

1.3

1.9

4.1

3.9

4.1

http://www.epsontoyocom.co.jp

1.52

0.8
