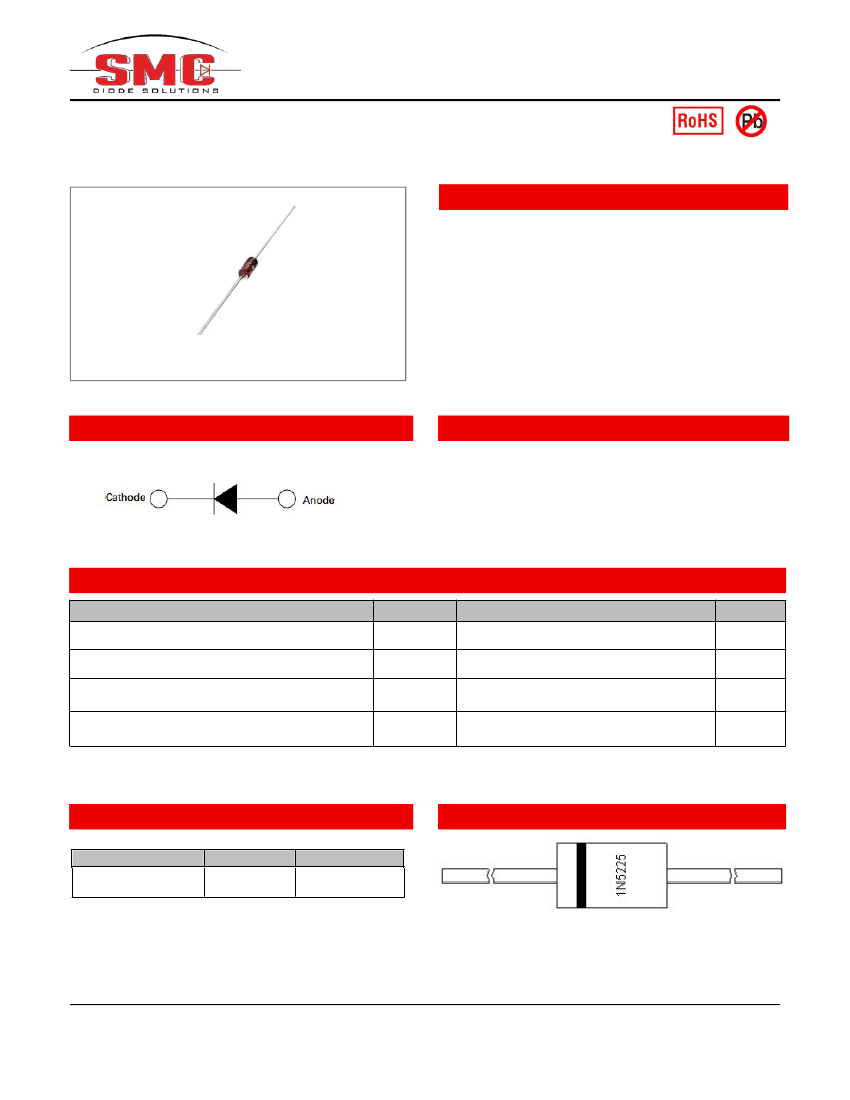

1N5225-1N5267
Technical Data
Data Sheet N0187, Rev. B
1N5225 THRU 1N5267 ZENER DIODES
Features
Silicon Planar Power Zener Diodes
Standard Zener voltage tolerance is ± 5% with a “B” suffix.
Other tolerances are available upon request.
These diodes are also available in Mini-MELF case with
the type designation ZMM5225 ... ZMM5267, SOT-23 case
with the type designation MMBZ5265 ... MMBZ5267 and
SOD-23 case with the types designation
MMSZ5225 ... MMSZ5267.
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DO-35
Circuit Diagram
Mechanical Data
Case: DO-35 Glass Case
Terminals: Plated axial leads, solderable per LIL-
STD 750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: approx. 0.14 grams
Maximum Ratings
@T
A
=25°C unless otherwise specified
Parameter
Power Dissipation
(Note 1)
Forward Voltage
@ I
F
= 200mA
Symbol
P
D
V
F
R
θJA
T
J
,T
STG
Value
500
1.1
3000
-65 to 200
Units
mW
V
°C/W
°C
Typical Thermal resistance junction to Ambient Air
(Note 1)
Operating Junction and Storage
Temperature Range
Notes: 1. Valid provided that leads are kept at ambient temperature at a distance of 8mm from case
Ordering Information
Device
1N5225-1N5267
Marking Diagram
Shipping
5000pcs / tape
Package
DO-35
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
1N5252
= Part Name
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
1N5225-1N5267
Technical Data
Data Sheet N0187, Rev. B

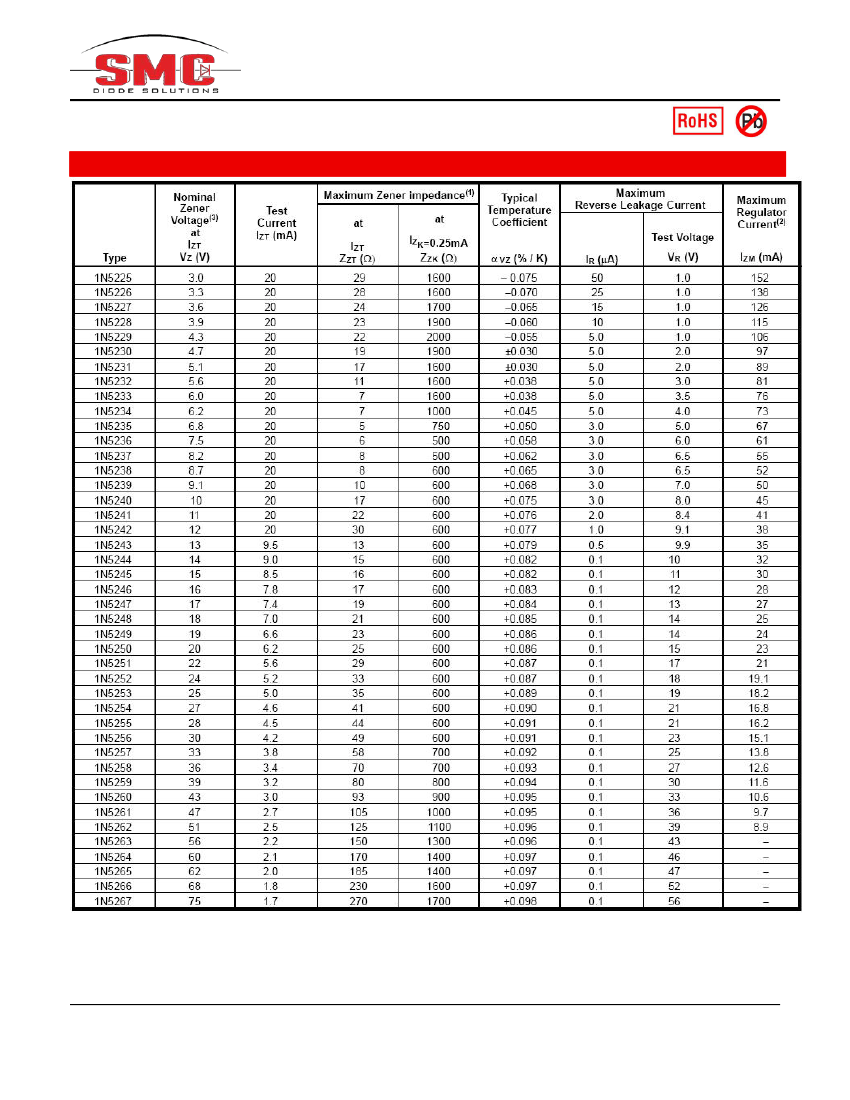

Electrical Characteristic
s @T
A
=25°C unless otherwise specified
Note: (1) The Zener impedance is derived from the 1 kHz AC voltage which results when an AC current having an RMS value equal to 10% of
the Zener current (IZT or IZK) is superimposed on IZT or IZK. Zener impedance is measured at two points to insure a sharp knee on the
breakdown curve and to eliminate unstable units
(2) Valid provided that leads at a distance of 10 mm from case are kept at ambient temperature
(3) Measured with device junction in thermal equilibrium
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
1N5225-1N5267
Technical Data
Data Sheet N0187, Rev. B

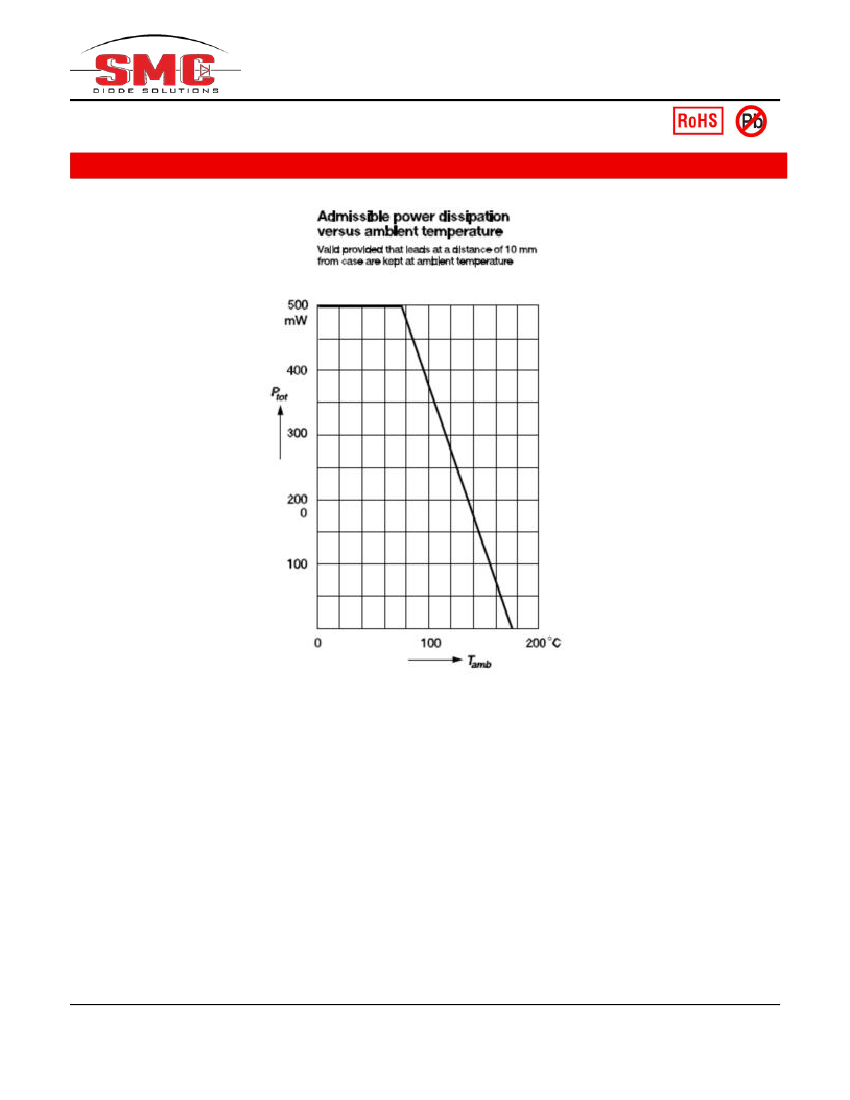

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
1N5225-1N5267
Technical Data
Data Sheet N0187, Rev. B

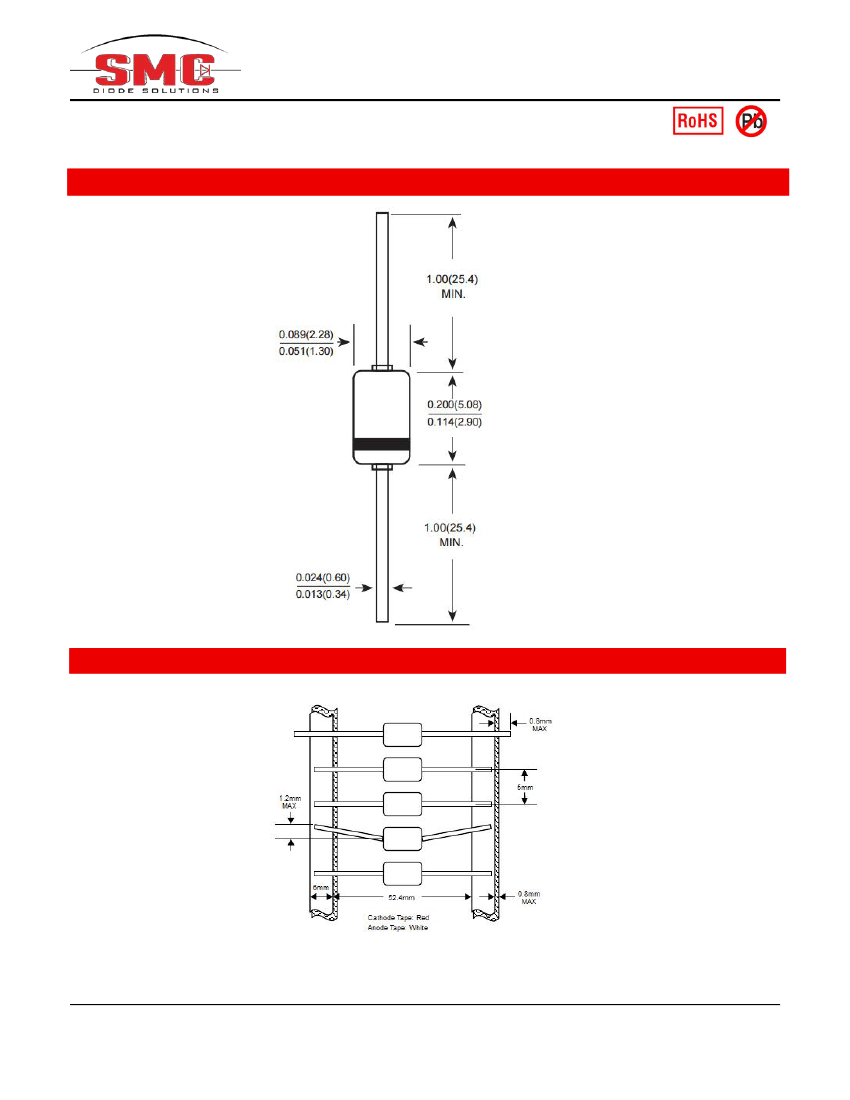

Mechanical Dimensions DO-35(Inches/Millimeters)
Carrier Tape Specification DO-35
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
1N5225-1N5267
Technical Data
Data Sheet N0187, Rev. B
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or
any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd
assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any
secondary damage resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics
(Nanjing) Co., Ltd.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC
- Sangdest Microelectronics (Nanjing) Co., Ltd.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
