TPK15KPXX
Technical Data
Data Sheet N0174, Rev. D
TPK15KPXX TVS Rectifier
Features
Low profile surface mount
Unidirectional and Bidirectional
Fast response
Suppresses transients up to 15kW @ 10/1000µs
Marking : body marked with TPK15KPXX
This is a Pb − Free Device
Open top for heat dissipation and different connection options
All SMC parts are traceable to the wafer lot
All part are 100% tested: electrical, 1x surge test,
visual inspection
Additional testing can be offered upon request
SPD-4

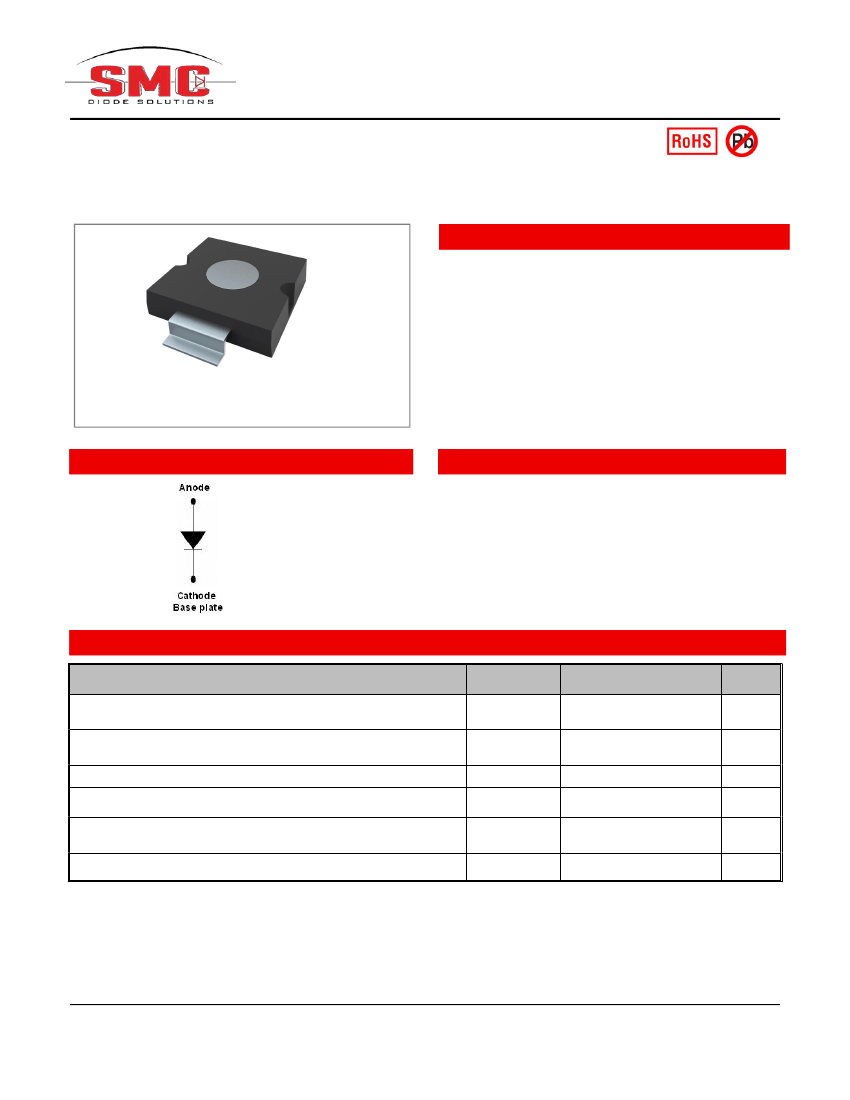

Schematic & Pin Configuration
Applications
Protection from switching transients and induced RF
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Junction and Storage Temperature Range
Thermal Resistance Junction to Ambient (Note 1)
Thermal Resistance Junction to Case
Peak Pulse Power (with 10/1000μs waveform)
(Note 2)
Steady-State Power dissipation
(Note 5)
@T
A
= 25°C
@T
A
= 100°C
Symbol
T
J ,
T
STG
R
θJA
R
θJC
P
PPM
P
D
I
FSM
Value
-55 to +175
50
0.9
15000
2.5 (Note 1)
50 (Note 4)
400.0
Unit
°C
°C/W
°C/W
W
W
A
Peak Forward Surge Current(JEDEC Method)(Note 3)
Note: 1. When mounted on FR4 board with recommended mounting pad(see pad layout).
2. With impulse repetition rate (duty factor) of 0.05% or less.
3. At 8.3ms Single half sine-wave (unidirectional devices only)
4. Case temperature controlled heat sink as specified.
5. See Note 134 for derating when P
PP
also applying steady-state power.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
TPK15KPXX
Technical Data
Data Sheet N0174, Rev. D
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Part Number
(Unidirectional)
Part Number
(Bidirectional)
Stand-off
Voltage
V
wm
(Note 1)
(V)
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
Breakdown
Voltage
V
BR
@ I
BR
(mA)
(V)
Min
Max
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
Test
Clamping
Stand By Peak Pulse Temperatur
Current
Voltage
Current
Current
e
I
BR
(mA) V
c
(10*1000)
I
D
I
pp
Coefficient
@ I
PP
@ V
wm
Max
Of V
BR
(V)
(A)
mV/C
Max
Max
Max
150
5.0
12
3000
1251
5
6.0
12.9
750
1164
5
6.0
13.6
450
1101
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.5
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
150
60
45
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
1141
975
882
822
753
696
645
618
576
543
516
462
423
384
357
330
309
282
258
234
216
207
195
183
171
159
156
147
7.0
8.0
9.0
10
11
12
13
15
16
18
19
22
24
27
29
30
35
38
40
45
49
51
55
60
64
69
70
75
TPK15KP7.0A
TPK15KP7.5A
TPK15KP8.0A
TPK15KP8.5A
TPK15KP9.0A
TPK15KP10A
TPK15KP11A
TPK15KP12A
TPK15KP13A
TPK15KP14A
TPK15KP15A
TPK15KP16A
TPK15KP17A
TPK15KP18A
TPK15KP20A
TPK15KP22A
TPK15KP24A
TPK15KP26A
TPK15KP28A
TPK15KP30A
TPK15KP33A
TPK15KP36A
TPK15KP40A
TPK15KP43A
TPK15KP45A
TPK15KP48A
TPK15KP51A
TPK15KP54A
TPK15KP58A
TPK15KP60A
TPK15KP64A
TPK15KP7.0CA
TPK15KP7.5CA
TPK15KP8.0CA
TPK15KP8.5CA
TPK15KP9.0CA
TPK15KP10CA
TPK15KP11CA
TPK15KP12CA
TPK15KP13CA
TPK15KP14CA
TPK15KP15CA
TPK15KP16CA
TPK15KP17CA
TPK15KP18CA
TPK15KP20CA
TPK15KP22CA
TPK15KP24CA
TPK15KP26CA
TPK15KP28CA
TPK15KP30CA
TPK15KP33CA
TPK15KP36CA
TPK15KP40CA
TPK15KP43CA
TPK15KP45CA
TPK15KP48CA
TPK15KP51CA
TPK15KP54CA
TPK15KP58CA
TPK15KP60CA
TPK15KP64CA
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
TPK15KPXX
Technical Data
Data Sheet N0174, Rev. D
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Part Number
(Unidirectional)
Part Number
(Bidirectional)
Stand-off
Voltage
V
wm
(Note 1)
(V)
70
75
78
85
90
100
110
120
130
150
160
170
180
200
Breakdown
Voltage
V
BR
@ I
BR
(mA)
(V)
Min
Max
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
200
222
86
92.1
95.8
104
111
123
135
147
159
185
197
209
221
245
Test
Clamping
Stand By Peak Pulse Temperature
Current
Voltage
Current
Current
Coefficient
I
BR
(mA) V
c
(10*1000)
I
D
I
pp
Of V
BR
@ I
PP
@ V
wm
Max
mV/C
(V)
(A)
Max
Max
Max
5
5
5
5
5
5
5
5
5
5
5
5
5
5
113
121
126
137
146
162
177
193
209
243
259
275
291
322
10
10
10
10
10
10
10
10
10
10
10
10
10
10
132
123
120
108
402
93
84
78
71
62
58
55
52
47
84
90
94
102
109
122
132
145
157
183
195
207
219
243
TPK15KP70A
TPK15KP75A
TPK15KP78A
TPK15KP85A
TPK15KP90A
TPK15KP100A
TPK15KP110A
TPK15KP120A
TPK15KP130A
TPK15KP150A
TPK15KP160A
TPK15KP170A
TPK15KP180A
TPK15KP200A
TPK15KP70CA
TPK15KP75CA
TPK15KP78CA
TPK15KP85CA
TPK15KP90CA
TPK15KP100CA
TPK15KP110CA
TPK15KP120CA
TPK15KP130CA
TPK15KP150CA
TPK15KP160CA
TPK15KP170CA
TPK15KP180CA
TPK15KP200CA
Note:
1. Transient Voltage Suppressors are normally selected with reverse standoff voltage V
WM
, which should be equal to or greater than the
peak operating voltage.
2. TPK15KPXXXA, “A” Suffix Designates Unidirectional Devices; TPK15KPXXXCA , “CA”Suffix Designates Bidirectional Devices.
SYMBOLS & DEFINITIONS
Symbol
V
WM
V
(BR)
I
D
Definition
Working Peak(Standoff) Voltage
Breakdown Voltage
Standby Current
Symbol
I
PP
V
C
I
(BR)
Definition
Peak Pulse Current
Claming Voltage
Breakdown Current for V
(BR0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com

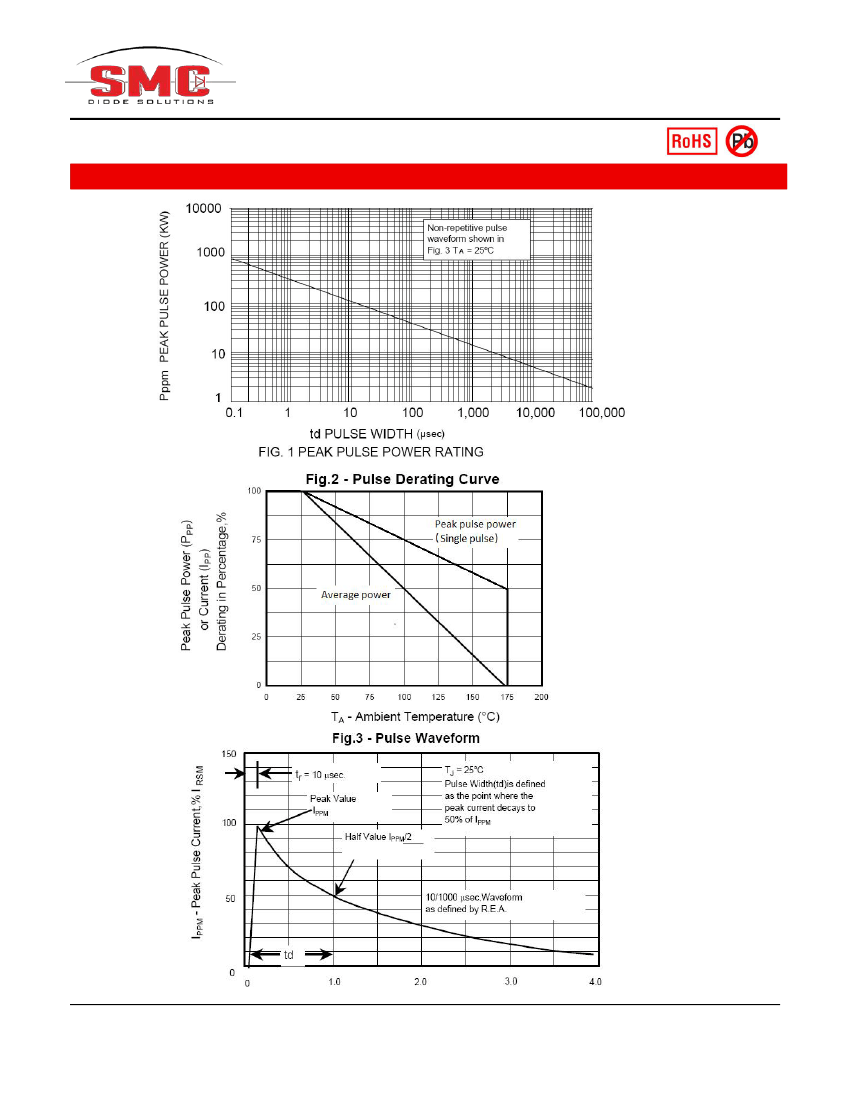

TPK15KPXX
Technical Data
Data Sheet N0174, Rev. D

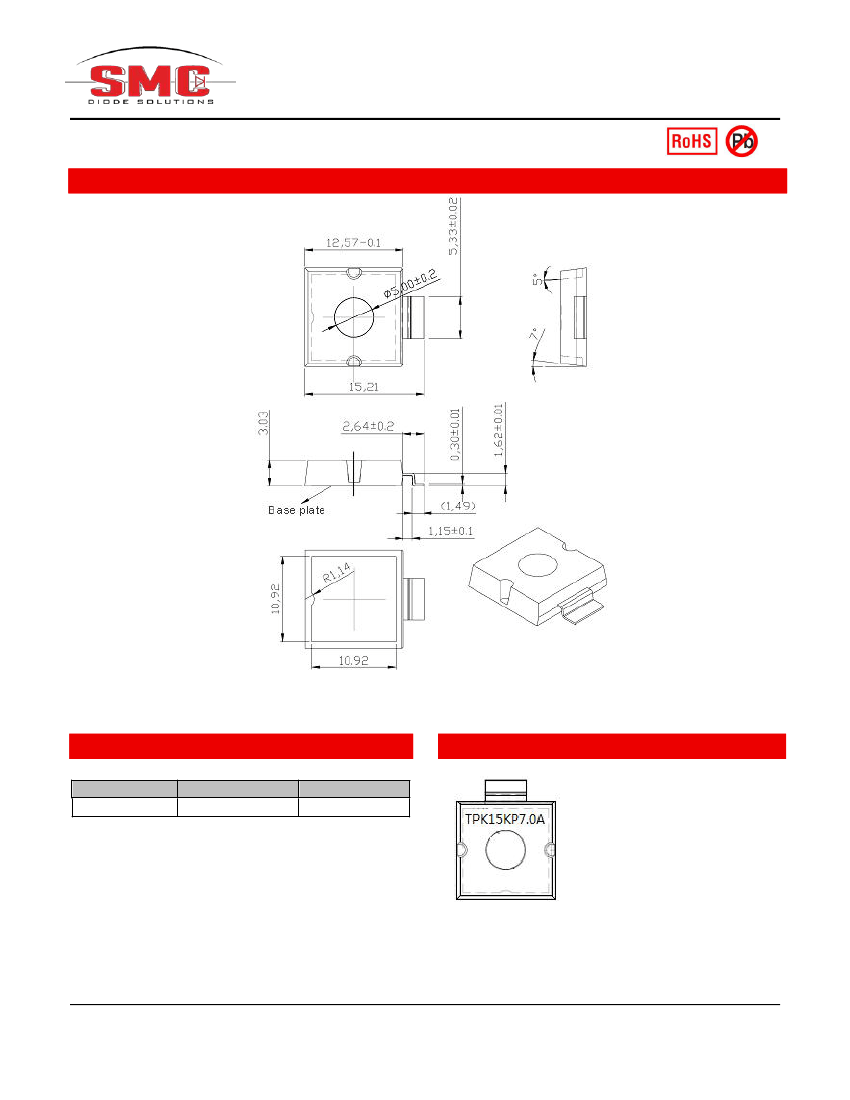

Mechanical Dimensions SPD-4(Inches/Millimeters)
Ordering Information
Device
TPK15KPXX
SPD-4(Pb-Free)
Marking Diagram
64pcs/ bag
TPK15KP7.0A
=
Part Number
Package
Shipping
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
