Laser Diode Incorporated
High Power Pulsed Laser
Diodes
High Efficiency / High Reliability
Stable output from -40
o
C to +85
o
C
Single and stacked devices up to
140Watts
850nm and 905nm wavelengths
Hermetic package
Applications:
Rangefinding / Ceilometers
Weapons simulation
Optical fuses
Surveying equipment
CVD Series Characteristics @ 25
o
C
Parameter
Peak Wavelength
CVD 60 / 160 Series
CVD 90 / 190 Series
Spectral Width
Rise Time - Lasers
Pulse Width = 50% pts
Beam Spread
Storage Temperature
Operating Temperature
Symbol
λ
Min
895
840
Δλ
T
r
T
pw
FWHM
T
s
T
o
-55
-40
Typ
905
850
5.0
1
100
10 x 35
Max
915
860
12
200
+85
+85
Unit
nm
nm
nm
nm
ns
ns
degrees
o
o
C
C
CVD 905nm Series Test Conditions: 100ns, 1Khz, 25
o
C
Parameters
Peak Power
Number of Diodes
Emitting Area Typical
Peak lf
Duty Factor (max)
1
CVD 46
3
1
62 x 2
CVD 60
4
1
76 x 2
CVD 62
8
1
152 x 2
CVD 65
13
1
254 x 2
CVD 68
22
1
381 x 2
CVD 163
35
3
254 x 203
CVD 167
100
5
381 x 406
Units
Watts
um
Amps
%
4
0.1
5
0.1
10
0.1
15
0.1
25
0.1
15
0.08
25
0.04
CVD 850nm Series Test Conditions: 100ns, 1Khz, 25
o
C
Parameters
Peak Power
Number of Diodes
Emitting Area Typical
Peak lf
Duty Factor (max)
1
CVD 90
5
1
76 x 2
CVD 93
10
1
152 x 2
CVD 95
15
1
254 x 2
CVD 97
25
1
381 x 2
CVD 193
40
3
254 x 203
CVD 195
60
3
381 x 203
CVD 197
100
5
381 x 406
Units
Watts
um
Amps
%
7
0.1
14
0.1
20
0.1
30
0.1
20
0.08
30
0.04
30
0.04
Note:
1 Heat sinking required
LDI Document #10-4400-0018 Rev. D 1/16/09

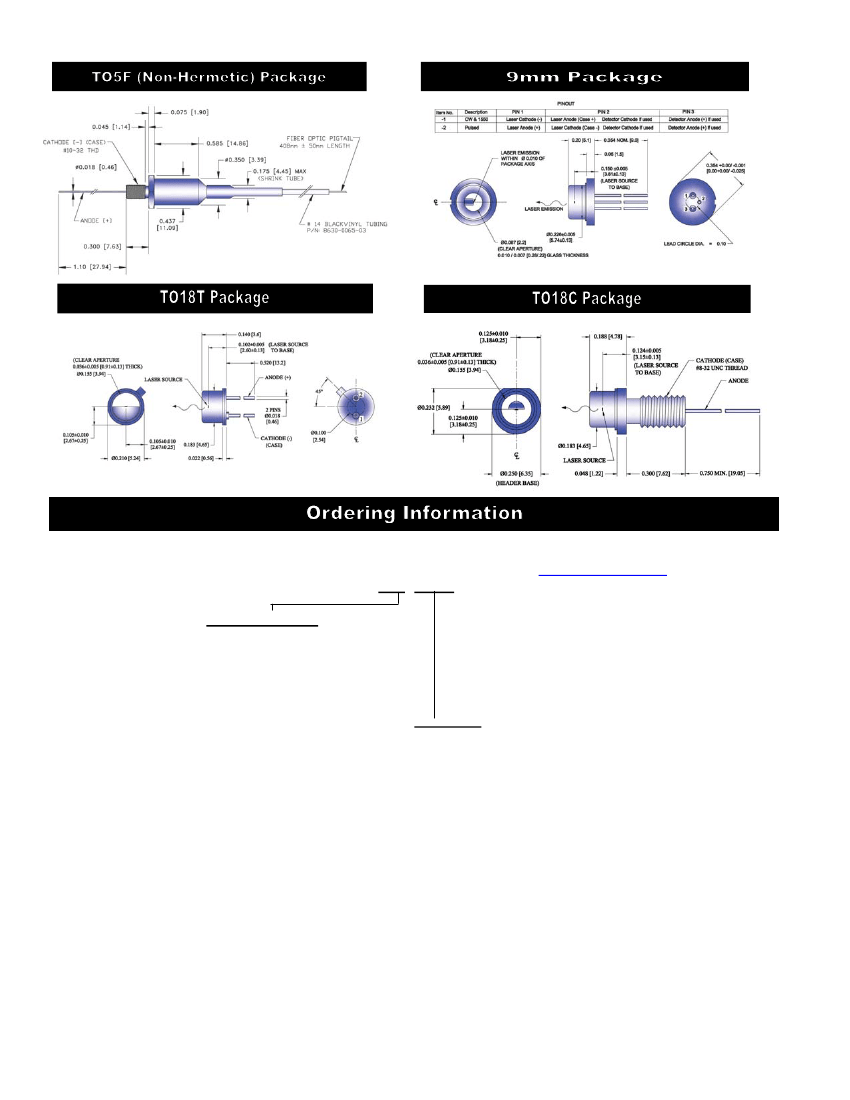

Package Drawings
Other package options available. Dimensions: inches [mm]
Products can be ordered directly from Laser Diode Incorporated or its representatives. When ordering, refer to the
information below. For a complete listing of representatives, visit our website at
www.laserdiode.com
CVD
XX - XXXX
OUTPUT POWER
46 =
3 Watt
60 =
4 Watt
62 =
8 Watt
65 = 13 Watt
68 = 22 Watt
163 = 35 Watt
167 = 100 Watt
90 =
5 Watt
93 = 10 Watt
95 = 15 Watt
97 = 25 Watt
193 = 40 Watt
195 = 60 Watt
197 = 100 Watt
PACKAGE
TO18C =
TO18T =
TO5C =
TO5F =
TO5T =
90 =
TO18 Coax
TO18 Twin Lead
TO5 Coax
TO5 Non-Hermetic (fibered)
TO5 Twin Lead
9mm
NOTE:
Not all options are available for all packages. Other power options are available.
Fiber pigtailed versions of all lasers are available. Output is typically 50% of rated power.
Safety:
Caution: Laser light emitted
from any diode laser may be
harmful to the human eye.
Avoid looking directly into
the diode laser aperture when
the device is in operation.
Class 3B laser
ESD Caution:
Handle diode lasers with
extreme care to prevent
electrostatic discharge.
Follow ESD precautions
when handling devices.
Warranty:
Please refer to your product
purchase agreement for
complete details or check
with your Laser Diode sales
representative.
Notice:
LDI reserves the right to make
changes to the products or
information contained herein
without notice. No Liability is
assumed as a result of their use
or application.
LDI Document #10-4400-0018 Rev. D 1/16/09
