SPE0573
Single-Line ESD Protection Array
DESCRIPTION
The SPE0573 are designed by TVS bi-direction device that
is to protect sensitive electronics from damage or latch-up
due to ESD. They are designed for use in applications
where board space is at a premium. SPE0573 will protect
single line, and may be used on line where the signal
polarities swing above and below ground.
SPE0573 offer desirable characteristics for board level
protection including fast response time, low operating and
clamping voltage, and no device degradation.
SPE0573 may be used to meet the immunity requirements
of IEC 61000-4-2, level 4. The small SOD-723 package
makes them ideal for use in portable electronics such as
cell phones, PDA’s, notebook computers, and digital
cameras.
APPLICATIONS
Cellular Handsets and Accessories
Cordless Phone
PDA
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
MP3 Player
FEATURES
Transient protection for data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
Protects single I/O lines
Working voltage: 5V
Low leakage current
Low operating and clamping voltages

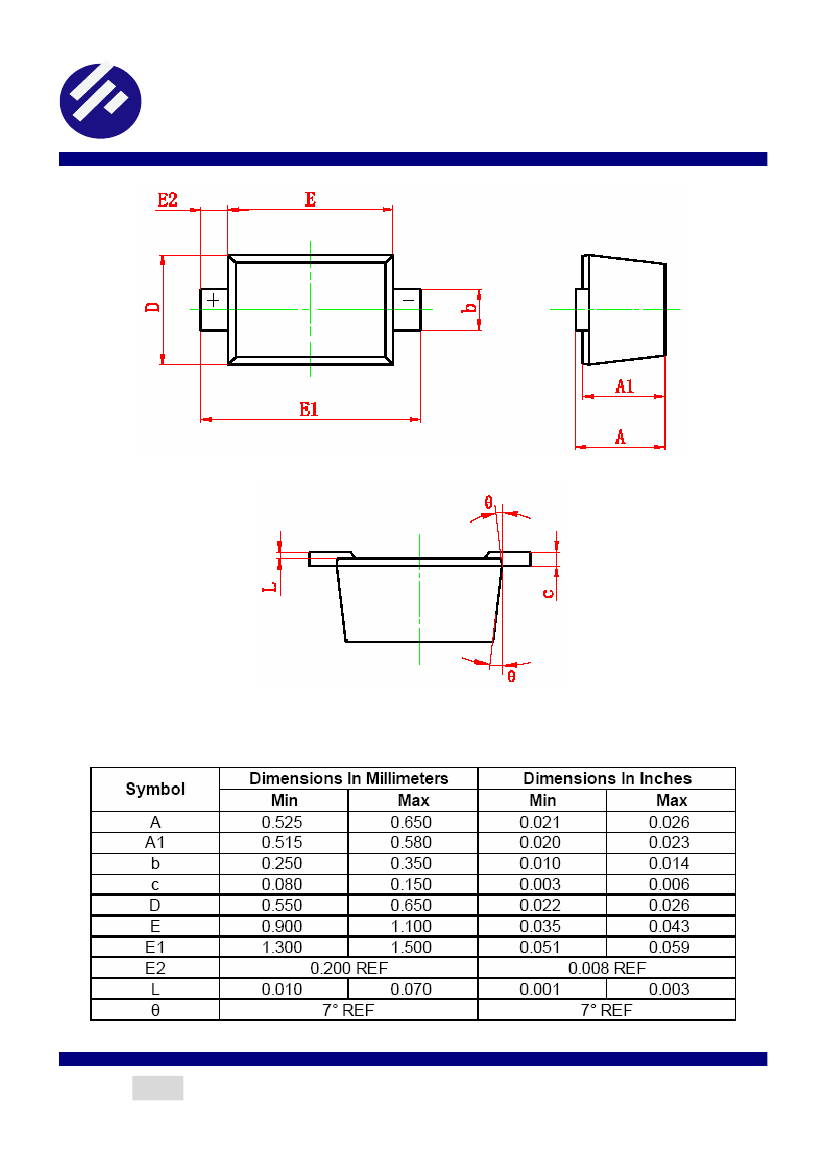

PIN CONFIGURATION ( SOD-723 )
PART MARKING
2008/04/30
Ver.1
Page 1
SPE0573
Single-Line ESD Protection Array
ORDERING INFORMATION
Part Number
SPE0573D72RG
※
SPE0573D72RG : Tape Reel ; Pb – Free
Package
SOD-723
Part
Marking
O
ABSOULTE MAXIMUM RATINGS
(T
A
=25
℃
Unless otherwise noted)
Parameter
Peak Pulse Power ( tp = 8/20
μs
)
Maximum Peak Pulse Current ( tp = 8/20
μs
)
ESD per ICE 61000 – 4 – 2 (Air )
ESD per ICE 61000 – 4 – 2 (Contact )
Operating Junction Temperature
Storage Temperature Range
Lead Soldering Temperature
Symbol
Ppk
Ipp
Vpp
Vpp
T
J
T
STG
T
L
Typical
250
7
±15
±8
-55 ~ 150
-55 ~ 150
260 ( 10sec )
Unit
W
A
KV
KV
℃
℃
℃
ELECTRICAL CHARACTERISTICS
(T
A
=25
℃
Unless otherwise noted)
Parameter
Reverse Stand – Off
Voltage
Reverse Breakdown Voltage
Reverse Leakage Current
Reverse Leakage Current
Clamping Voltage
Clamping Voltage
Junction Capacitance
Symbol
V
RWM
V
BR
I
R
I
R
V
C
V
C
Cj
It = 1mA
V
RWM
= 5V , T=25℃
V
RWM
= 3V , T=25℃
Ipp = 1A , tp = 8/20
μs
Ipp = 7A , tp = 8/20
μs
Between I/O Pin and GND
V
R
= 0V , f = 1MHz
2
6
0.01
0.01
Conditions
Min.
Typ
Max.
5
8.5
1
0.5
11.5
15
3
Unit
V
V
μA
μA
V
V
pF
2008/04/30
Ver.1
Page 2
SPE0573
Single-Line ESD Protection Array

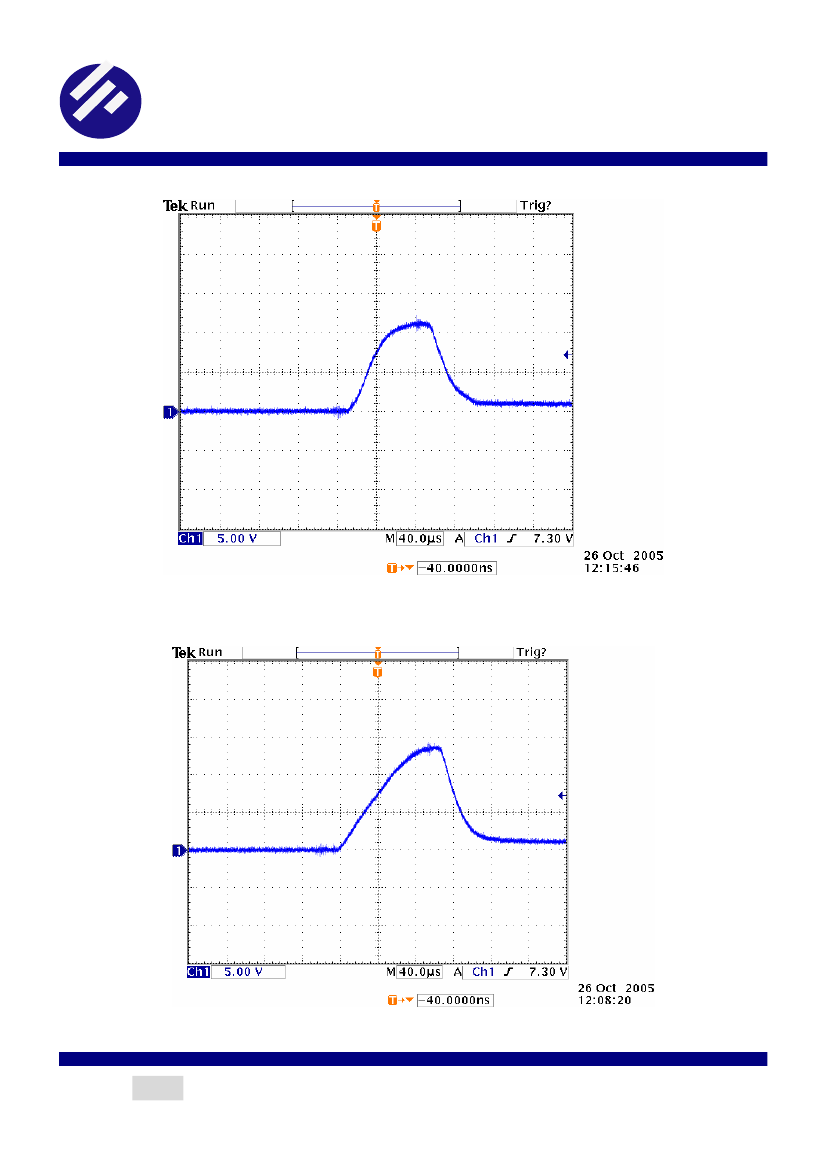

TYPICAL CHARACTERISTICS
Clamping Voltage (Ipp = 1A , tp = 8/20
μs
)
Clamping Voltage (Ipp = 7A , tp = 8/20
μs
)
2008/04/30
Ver.1
Page 3
SPE0573
Single-Line ESD Protection Array
TYPICAL CHARACTERISTICS

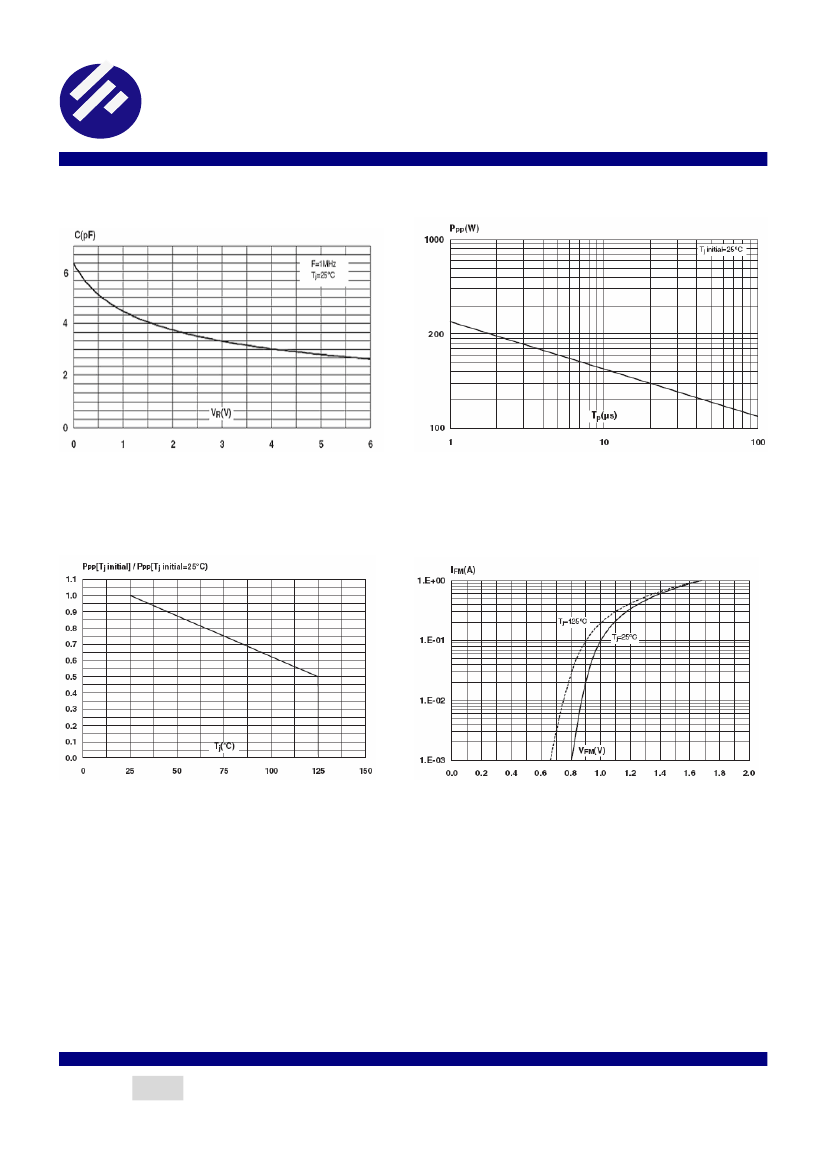

Fig 1 : Junction Capacitance V.S Reverse Voltage Applied
Fig 2 : Peak Plus Power V.S Exponential Plus Duration
Fig 3 : Relative Variation of Peal Plus Power V.S
Initial Junction Temperature
Fig 4 : Forward Voltage Drop V.S Peak Forward Current
2008/04/30
Ver.1
Page 4
