MWDM1L-GS-4J: DescriptionMicro-D Metal Shell MWDM Back-To-Back Unshielded Cable Assemblies; File Size400KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

MWDM1L-GS-4J Overview

Micro-D Metal Shell MWDM Back-To-Back Unshielded Cable Assemblies

Preview

Download Datasheet

View All

Micro-D

Harness

Micro-D Metal shell

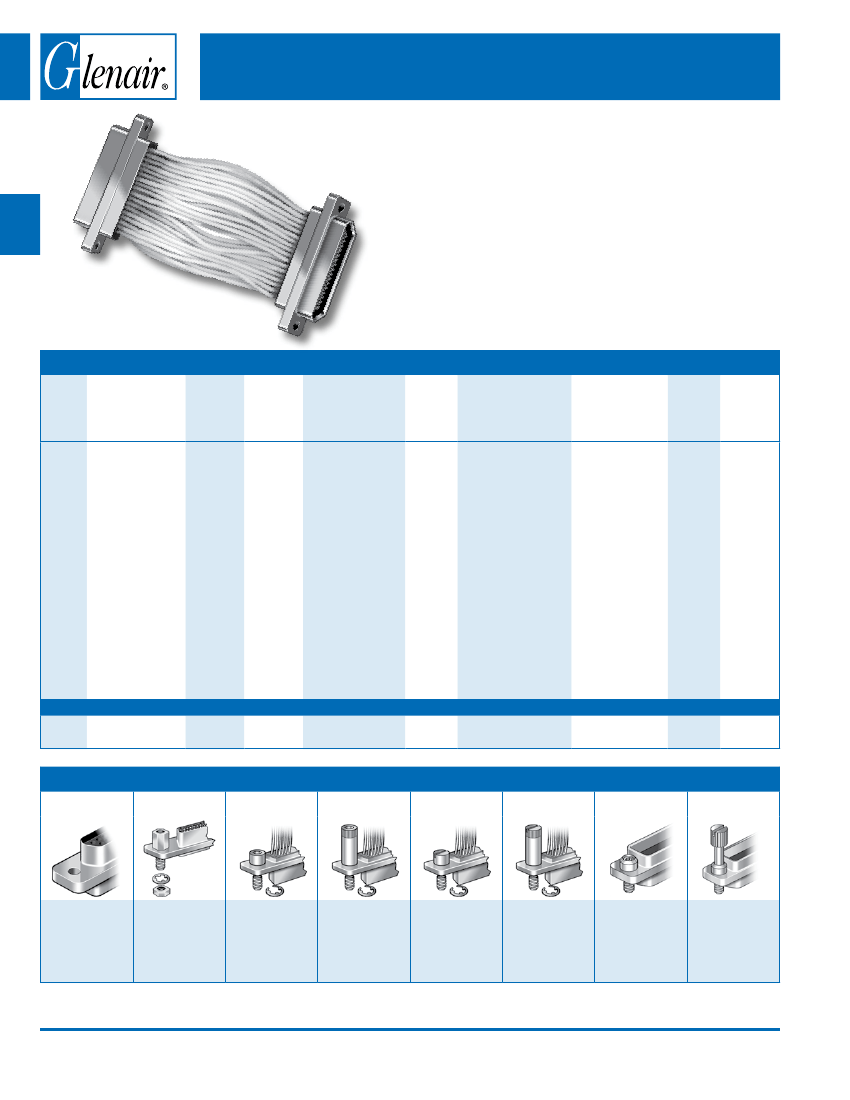

MWDM Back-to-Back unshielded Cable Assemblies

Save Time and Money With Back-To-Back Cables–

These Micro-D connectors feature crimp wire terminations

and epoxy encapsulation. The installed cost is lower than

terminating solder cup connectors.

100% Certified–

all back-to-back assemblies are 100%

checked for continuity, resistance, voltage and insulation

resistance.

Hardware Note–

if jackposts are required on one end and

jackscrews on the other, use hardware designator “B” (no

hardware installed), and order hardware kits separately.

HoW to oRDER BACk-to-BACk uNsHIELDED CABLEs

shell Material Insulator Contact

and Finish

Material Layout

51-2

100

Connect or

type

–

Pin (Plug)

Wire

Gage

(AWG)

–

#24

–

#26

–

#28

–

#30

series

Wire type

–

M22759/11

Wire Color

–

White

–

Yellow

–

Ten Color

total

Length

Inches

Hardware

Total

Length In

Inches.

“18”

Specifies

18 Inches

(2” Min.)

MWDM

Aluminum shell

– LCP

– Cadmium

30% Glass-

Filled Liquid

– Nickel

Crystal

– Black Anodize Polymer

– Gold

– Chem Film

stainless steel

shell

Connector

Both Ends

600 Vrms Teflon

(TFE)

–

Socket

(Receptacle)

Connector

Both Ends

–

Pin Connector

to Socket

Connector

–

M22759/33

Repeating

Stripes Per

MIL-STD-681

600 Vrms

Modified Cross-

Linked Tefzel

(ETFE)

600 VrmsType

E M16878/4

(TFE) (replaced

by M22759/11

for mil spec

applications)

–

Color-Coded

–

NEMA HP3-EB

–

Passivated

(Striped wire not

available on 67,

69 or 100 pin

connectors or for

#28, #30 AWG)

Sample Part Number

MWDM

L –

GP –

7 –

MICRo-D MouNtING HARDWARE

Order Hardware

Separately

thru-Hole

Removable

Includes Nut and

Washer

Jackpost

Jackscrew

Hex Head

Removable

E-ring

Jackscrew

Hex Head

Removable

E-ring

Extended

Jackscrew

Slot Head

Removable

E-ring

Jackscrew

Slot Head

Removable

E-ring

Extended

Hex Head

Non- Removable

Jackscrew

Slot Head

Non-

Removable

Extended

www.glenair.com

CAGE Code 06324/0CA77

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

B-6
