07-1053 datasheet, PDF - EEWORLD Datasheet

07-1053: DescriptionRotary Coded Switch, 16 Positions, Hexadecimal, Latched, Solder Terminal, Shaft Type Actuator, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size281KB，8 Pages; ManufacturerElma Electronic Inc; Environmental Compliance

Download Datasheet Parametric View All

07-1053 Overview

Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, Solder Terminal, Shaft Type Actuator, Through Hole-right Angle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Elma Electronic Inc
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	SHAFT TYPE
Other features	PANEL MOUNTABLE
body width	10.2 mm
body height	10.5 mm
Body length or diameter	11.95 mm
Electrical life	10000 Cycle(s)
Graduation angle	22.5 deg
JESD-609 code	e3
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	16
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
seal	IP60
surface mount	NO
Switch action	LATCHED
switch function	HEXADECIMAL
Switch type	ROTARY CODED SWITCH
Terminal surface	Tin (Sn)
Termination type	SOLDER

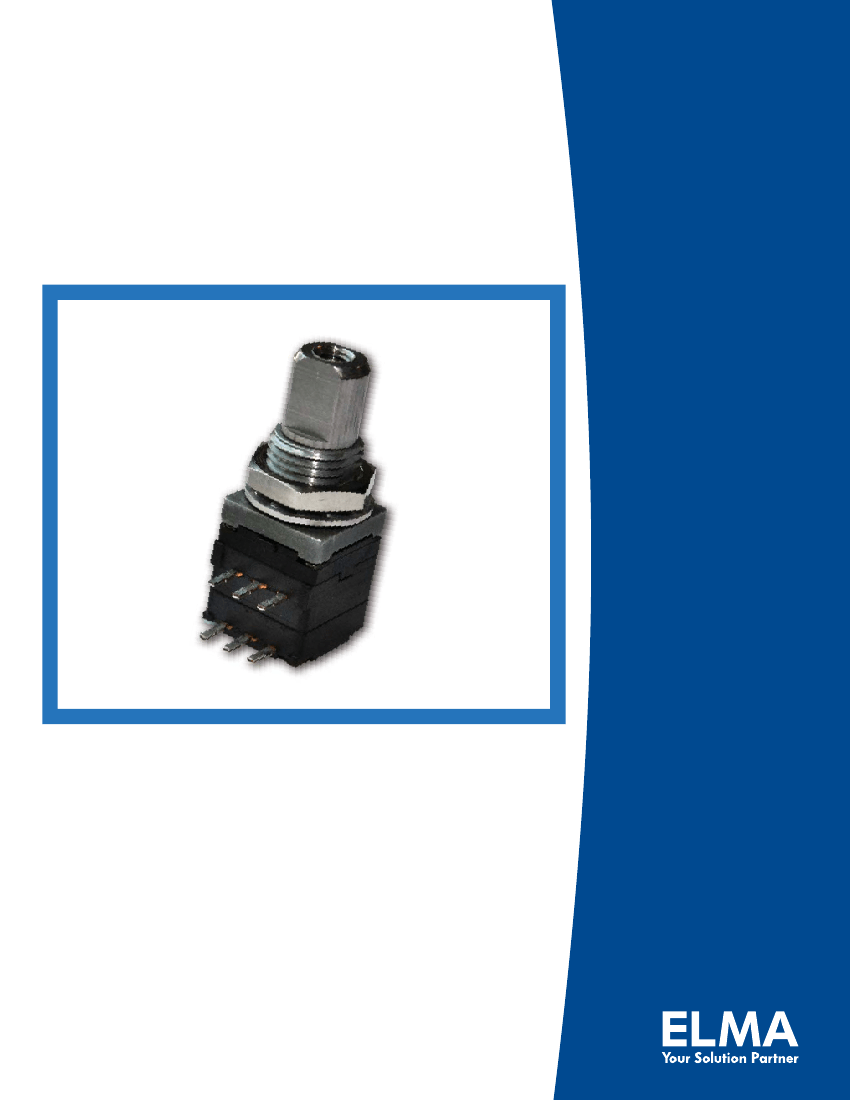

M07 MIL Rugged C d Switches

Coded

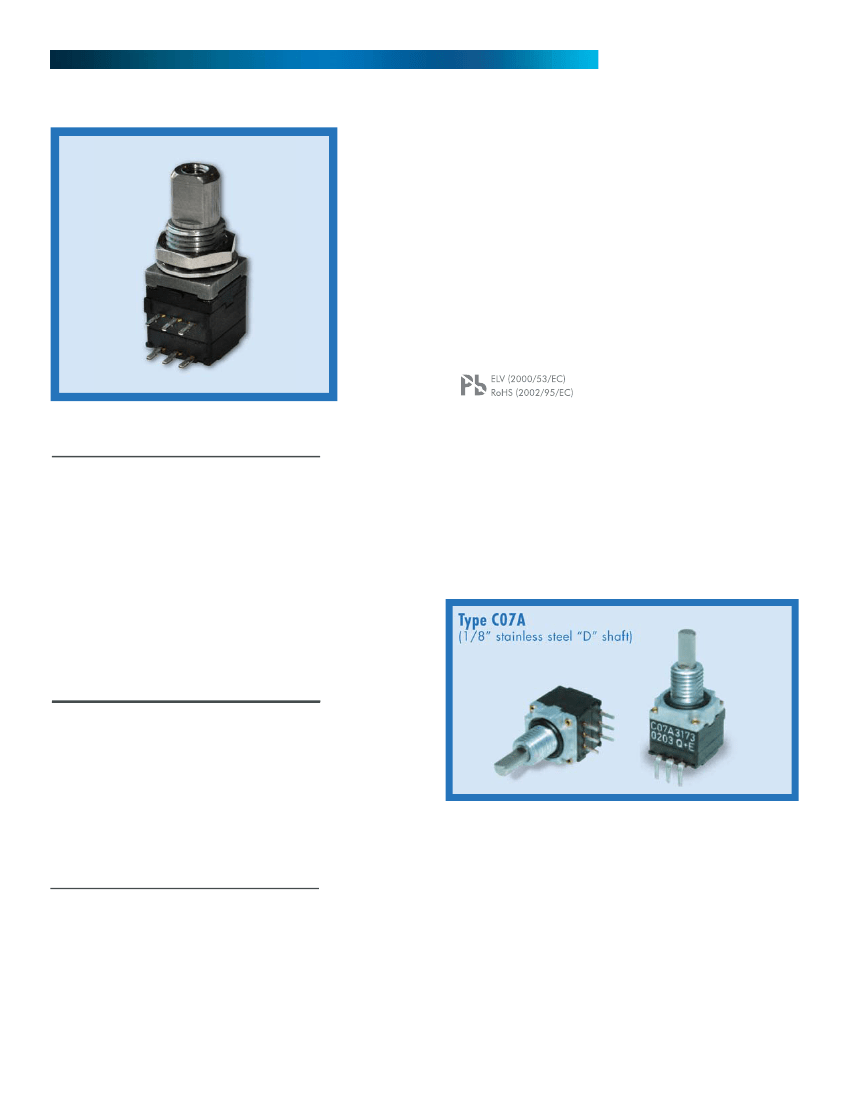

Overview

Elma Electronic

www.elma.com
