5110F5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5110F5

Preview

5110F5: DescriptionSingle Color LED, Green, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size249KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric Compare View All

5110F5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5110F5	-	-	View	Buy Now

5110F5 Overview

Single Color LED, Green, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

5110F5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Chicago Miniature
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	16.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	15.24 mm
method of packing	BULK
peak wavelength	562 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
perspective	55 deg

Preview

Download Datasheet

View All

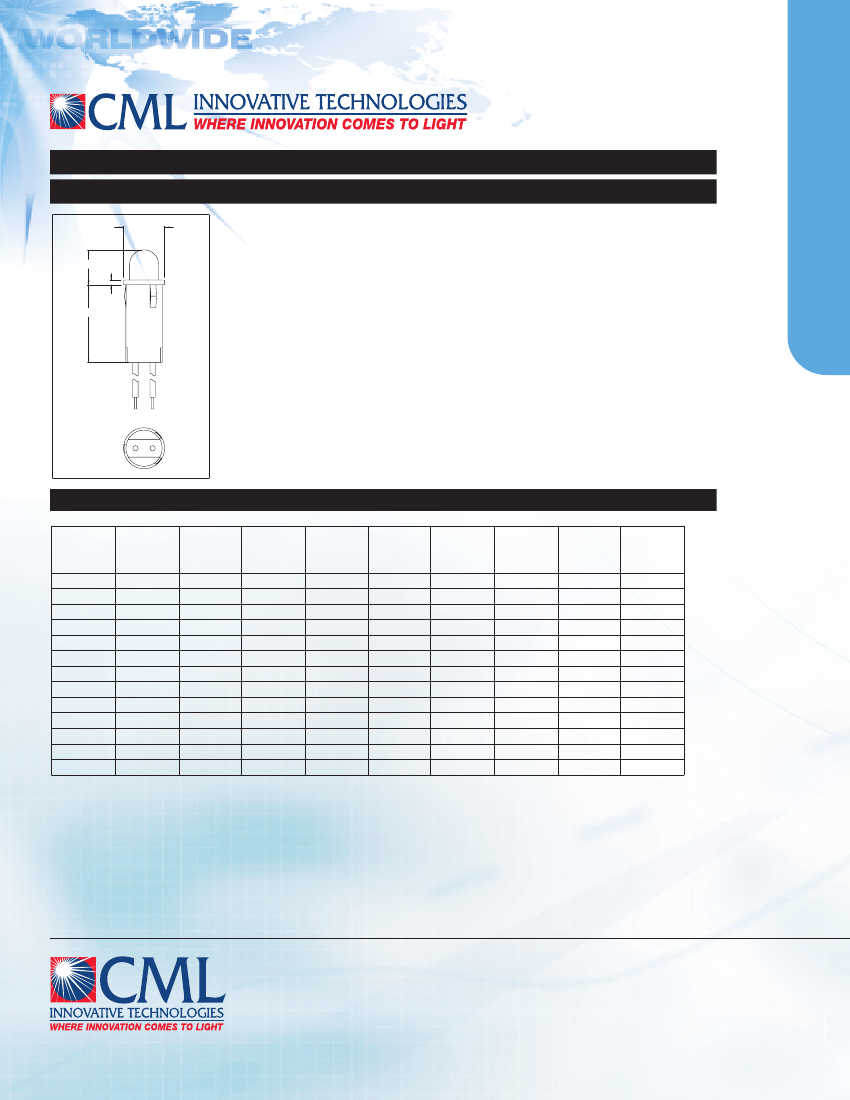

5110F Series Panel Mounted LED Indicator Light

DESCRIPTION AND FEATURES

Ø.190

.190

.030

Features

• Super Brite T-1 LED

• Diffused lens allows wide angle viewing.

• Low current -only 2 mA.

• Built -in chip resistor oper ates directly

off 5 and 12 volt supply , no external

resistor needed.

Mounting: Will snap-fit into Ø.155/.158

in panels .031/.062 thick*

hole

.410

Wire Leads: No.26 AWG, 6" long, stripped .250

Anode(+): Red lead

Housing: Black Nylon

*W e recommend using an installation t ool t o press

against flange of housing rather t han LED.

All dimensions

in inches.

ELECTRO-OPTICAL CHARACTERISTICS

Typ.

Intensity

(mcd)

10

7

16

6.3

2.5

2.1

1.8

8.0

8

Part

Number

5110F1

5110F3

5110F5

5110F7

5110F1LC

5110F5LC

5110F7LC

5110F1-5V

5110F3-5V

5110F5-5V

5110F1-12V

5110F3-12V

5110F5-12V

Color

Red

Amber

Green

Yellow

Red

Green

Yellow

Red

Amber

Green

Red

Amber

Green

Rated

Current

(mA)

10

20

2

10

13

Continuous

Forward

Peak Forward

Forward

Voltage Typ. Voltage Max.

Current @ 1ms-

Current Max.

(V)

300pps (A)

(mA)

30

1.0

2.0

3.0

25

30

7

20

15

20

2.0

2.2

2.1

1.8

1.9

5

12

3.0

2.2

2.7

7.5

15

.09

1.0

.007

-

Reverse

Break-down

Voltage Min.

(V)

5

4

5

Peak

Wavelength

(nm)

635

603

562

585

635

565

583

655

583

565

655

583

565

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5110F Series Panel Mounted LED Indicator Light

5110F5 Related Products

	5110F5	5110F3-12V	5110F5-12V
Description	Single Color LED, Green, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Amber, Diffused, T-1, 3mm	Single Color LED, Green, Diffused, T-1, 3mm
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
color	GREEN	AMBER	GREEN
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.02 A	0.02 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	16.0 mcd	8.0 mcd	8.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	15.24 mm	15.24 mm	15.24 mm
method of packing	BULK	BULK	BULK
peak wavelength	562 nm	583 nm	565 nm
shape	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm
surface mount	NO	NO	NO
T code	T-1	T-1	T-1
perspective	55 deg	60 deg	60 deg
Base Number Matches	-	1	1
