Micro-D

PCB

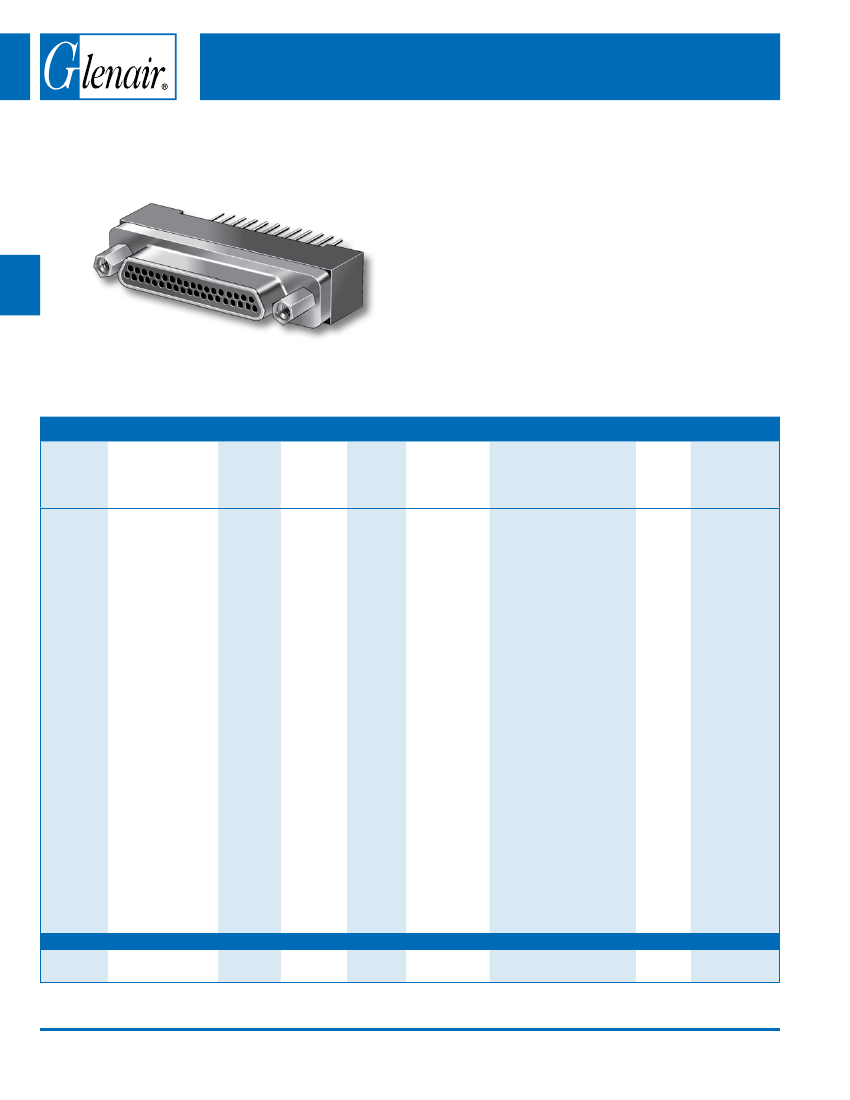

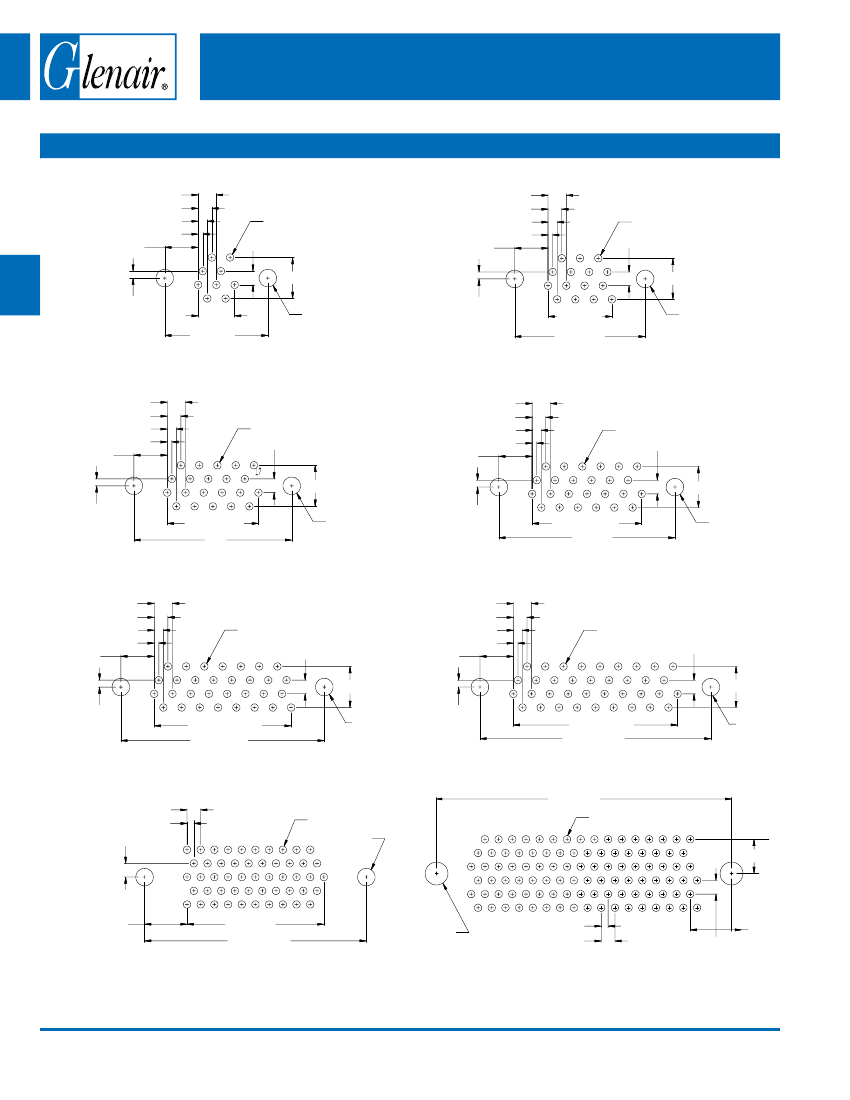

Micro-D Printed Circuit Board Connectors

Condensed Board Straight CBS .075 Inch Spacing

Save Space On Your Circuit Board–These

Micro-D

connectors feature .075 inch row spacing. The board

footprint is reduced to match the size of the connector body.

Designed for Flex Circuits–CBS

COTS connectors are

available with jackscrews for flex circuit compatibility.

Solder-Dipped–Terminals

are coated with SN63/Pb37 tin-

lead solder for best solderability. Optional gold-plated

terminals are available for RoHS compliance.

High Performance–These

connectors meet the

demanding requirements of MIL-DTL-83513. Suitable

for Level 1 NASA reliability.

Series

HoW to oRDER CBS CoNDENSED BoARD StRAIGHt CoNNECtoRS

Shell Material

and Plating

Finish

Aluminum Shell

–

Cadmium

Number

Insulator

Material Contacts

LCP

(Liquid

Crystal

Polymer)

100

Contact

type

Socket

termination

Style

CBS

Condensed

Board

Straight

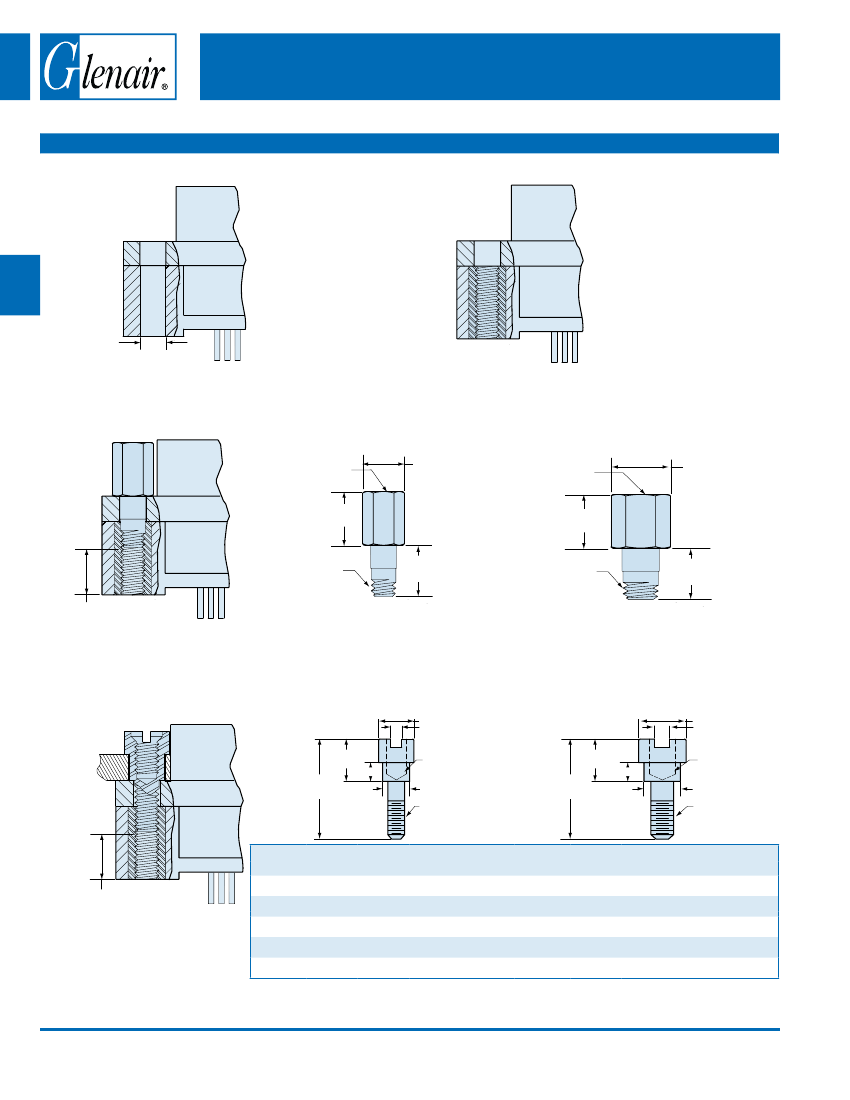

Hardware option

– No Jackpost, No

Threaded Insert

PC tail

Length

.080

.110

.140

.172

.190

.250

Gold-Plated

terminal

Mod Code

These

connectors are

solder-dipped

in 63/37 tin-

lead solder.

MWDM

Micro-D

Metal Shell

–

Nickel

–

Black Anodize

–

Gold

–

Chem Film

– Extended Jackpost for

.062" (1.6) PCB, No

Threaded Insert

– Extended Jackpost for

.196" (5.0) PCB, No

Threaded Insert

No Jackposts

Stainless Steel Shell

–

Passivated

– Threaded Insert Only,

– Short Jackpost and

Threaded Insert

to delete the

solder dip

and change

Length

to gold-plated

terminals,

Inches

add code 513

.015

(0.38)

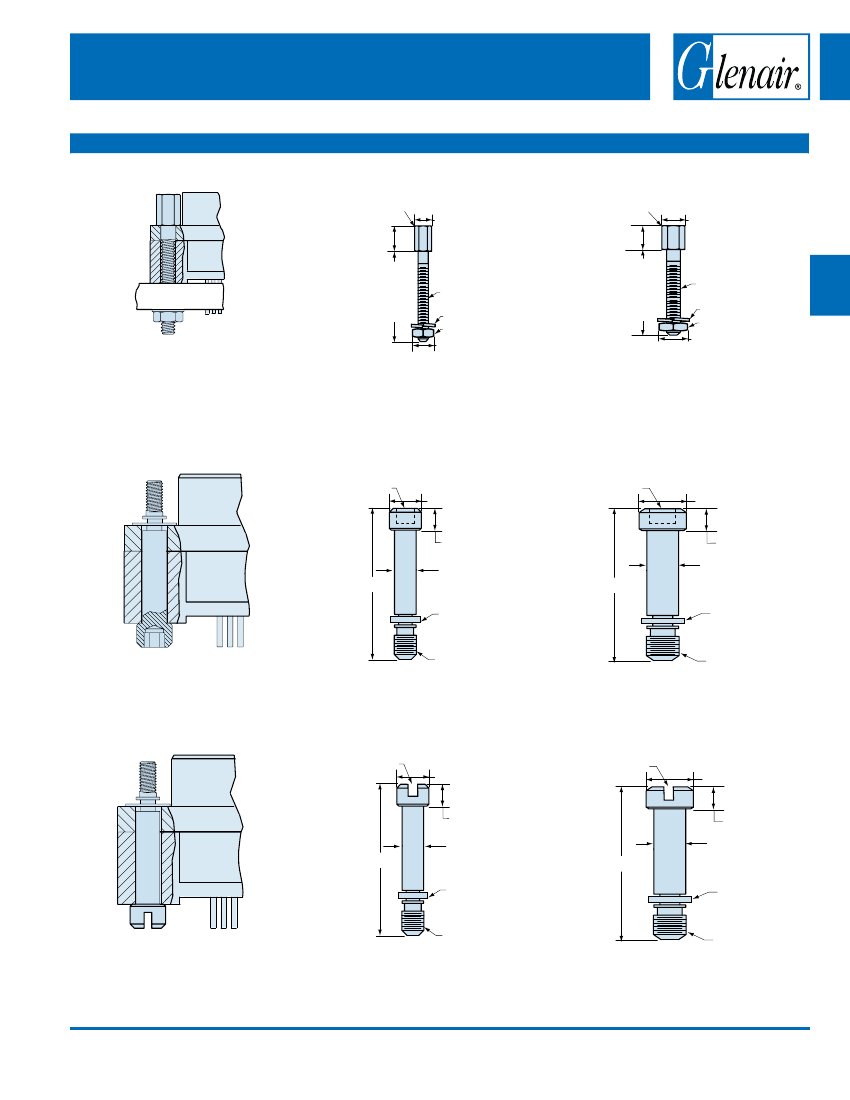

Rear Panel Jackposts

With Threaded Inserts

R6u

R5u

R4u

R3u

R2u

– 0.125" (3.2) Panel

– 0.094" (2.4) Panel

– 0.062" (1.6) Panel

– 0.047" (1.2) Panel

– 0.031" (0.8) Panel

– Hex Head Jackscrews

– Slot Head Jackscrews

Jackscrew options

Sample Part Number

MWDM

L –

CBS

–

.110

www.glenair.com

CAGE Code 06324/0CA77

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

C-14
