CMA-100/391DN10TAF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CMA-100/391DN10TAF

CMA-100/391DN10TAF: DescriptionCAP,CERAMIC,390PF,100VDC,.5PF -TOL,.5PF +TOL,NP0 TC CODE,-30,30PPM TC; CategoryPassive components capacitor; File Size129KB，1 Pages; ManufacturerTecate Group; Environmental Compliance

Download Datasheet Parametric View All

CMA-100/391DN10TAF Overview

CAP,CERAMIC,390PF,100VDC,.5PF -TOL,.5PF +TOL,NP0 TC CODE,-30,30PPM TC

CMA-100/391DN10TAF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Tecate Group
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00039 µF
Capacitor type	CERAMIC CAPACITOR
diameter	2.54 mm
dielectric materials	CERAMIC
JESD-609 code	e3
length	4.32 mm
Manufacturer's serial number	CMA(100V,10,NP0)
multi-layer	Yes
negative tolerance	0.1282%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
method of packing	Ammo Pack; Tape
positive tolerance	0.1282%
Rated (DC) voltage (URdc)	100 V
series	CMA
Temperature characteristic code	NP0
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

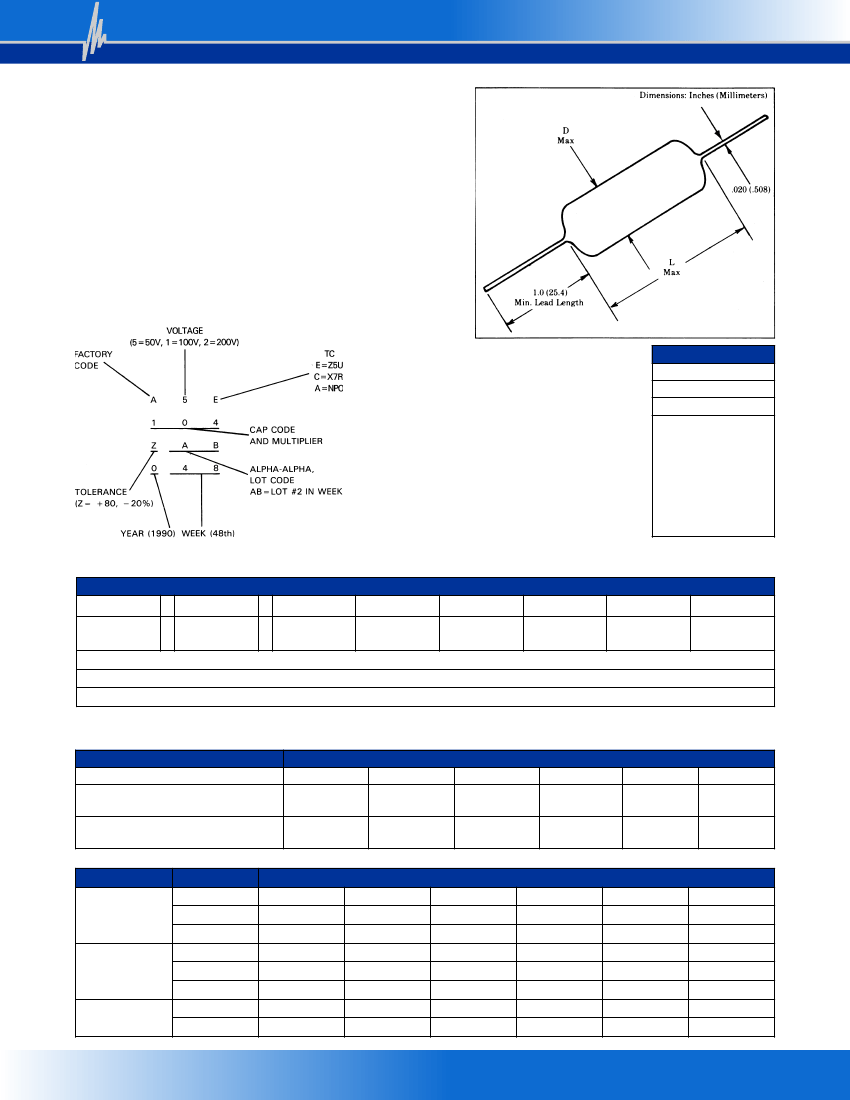

MULTILAYER CERAMIC AXIAL

Tecate Group

TYPE CMA

FEATURES

• NPO (COG), X7R, Z5U: temperature coefficients.

• 50, 100, & 200VDC.

• Lead Material: Solderable.

• Case Material: Epoxy.

• Packaging: Lead Taped and Reeled per EIA RS-296.

Case 10, 20 – 7,500 parts per reel.

Case 30, 40 – 5,000 parts per reel.

MARKING (EXAMPLE)

Tolerances

NPO = D, F, G, J, K

X7R = J, K, M

Z5U = M, Z

D = ±0.5pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Z = +80%, -20%

PART NUMBERING

Part Number Example: CMA-100/103KX10TF

CMA

Type

100

Rated DC

Voltage

103

Capacitance

Code (pF)*

Tolerance

Code

Dielectric

Material**

Case Size

Package

Code***

RoHs

Compliant

* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).

** Dielectric Material: N = NPO, X = X7R, Z = Z5U.

*** Package Code: TR = Tape & Reel, TA = Tape & Ammo, B = Bulk.

SIZE AND CAPACITANCE SPECIFICATIONS

EIA Characteristic

Case

Length

Diameter

EIA/TC

NPO

WVDC

200

100

200

100

0.118

(3.00)

0.090

(2.30)

0.170

(4.32)

0.100

(2.54)

Inches (mm)

0.170

(4.32)

0.120

(3.05)

0.260

(6.60)

0.100

(2.54)

0.290

(7.37)

0.150

(3.81)

0.400

(10.16)

0.150

(3.81)

Capacitance Range (pF EIA)

1R0-121

151-561

221-471

561-682

822-183

103-104

1R0-121

151-102

102-122

221-103

561-153

822-104

103-473

103-224

102 - 272

182 - 392

183 - 393

473 - 104

104

224 - 474

102 - 182

182 - 332

822

273

333

473

333

104

473

224

182 - 392

472 - 562

223

563

683

474

104

334

105

472 - 822

822 - 123

124 - 184

334 - 474

154 - 474

X7R

Z5U

Phone: (619) 398-9700 Fax: (858) 398-9777

Web Site: www.tecategroup.com

Tecate Industries

2007/04/25 Rev.02
