DS58-0001
Low Cost Eight-Way GMIC SMT Power Divider
824 – 960 MHz
Features
•
•
•
•
•
•
•
Small Size, Low Profile
Superior Repeatability (Lot-to-Lot Variation)
Typical Isolation: 30 dB
Typical Insertion Loss: 1.5 dB
Low Cost
1 Watt Power Handling
QSOP-20 Package
Rev. V2

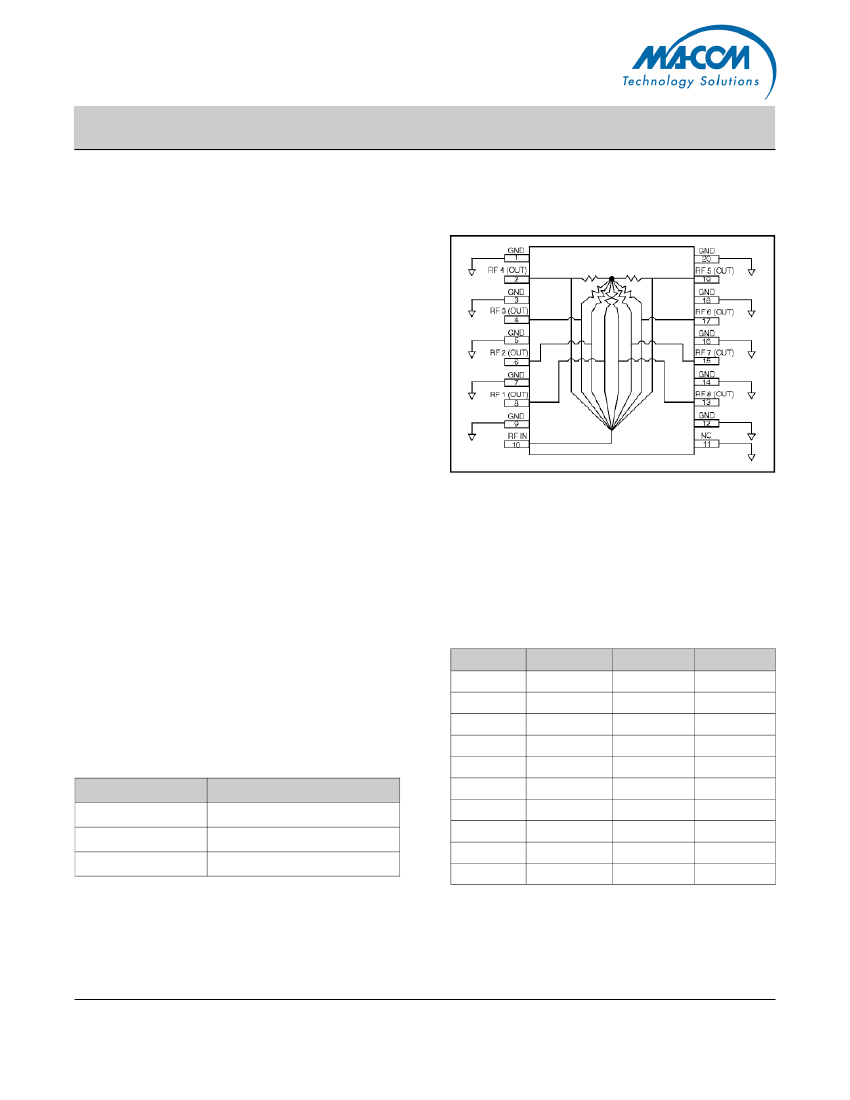

Functional Block Diagram
Description
M/A-COM’s DS58-0001 is an IC-based monolithic
power divider in a low cost QSOP-20 plastic pack-
age. This 8-way power divider is ideally suited for
applications where PCB real estate is at a premium
and part count reduction and cost are critical. Typical
applications include base station switching networks
and other cellular equipment, including subscriber
units. Available in tape and reel.
The DS58-0001 is fabricated using a passive-
integrated circuit process. The process features full-
chip passivation for increased performance and reli-
ability.
1. Pins 1, 3, 5, 7, 9, 12, 14, 16, 18, and 20 should be RF and
DC grounded.
Pin Configuration
Pin No.
1
2
3
Function
GND
RF 4 (OUT)
GND
RF 3 (OUT)
GND
RF 2 (OUT)
GND
RF 1 (OUT)
GND
RF IN
Pin No.
11
12
13
14
15
16
17
18
19
20
Function
NC
GND
RF 8 (OUT)
GND
RF 7 (OUT)
GND
RF 6 (OUT)
GND
RF 5 (OUT)
GND
Ordering Information
Part Number
DS58-0001
DS58-0001-TR
DS58-0001SAM
4
5
Package
Bulk Packaging
1000 piece reel
Sample Test Board
6
7
8
9
10
Note: Reference Application Note M513 for reel size
information.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
DS58-0001
Low Cost Eight-Way GMIC SMT Power Divider
824 – 960 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Parameter
Insertion Loss Above 9.0 dB
Isolation
VSWR
Amplitude Balance
Phase Balance
Rev. V2
Units
dB
dB
—
dB
Deg.
Min
—
20
—
—
—
Typ
1.5
30
1.7:1
0.4
5
Max
2.0
—
2.0:1
0.8
10
Absolute Maximum Ratings
2,3
Parameter
Input Power
4
Operating Temperature
Storage Temperature
2.
3.
4.
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
1W CW
-40°C to +85°C
-65°C to +150°C
Static Sensitivity
GMIC Circuits are sensitive to electrostatic
discharge (ESD) and can be damaged by static
electricity. Proper ESD control techniques should
be used when handling these devices.
Exceeding any one or combination of these limits may cause
permanent damage to this device.
M/A-COM does not recommend sustained operation near
these survivability limits.
With internal load dissipation of 0.125 W maximum.
Typical Performance Curves @ 25ºC
Insertion Loss vs. Frequency
VSWR vs. Frequency
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
DS58-0001
Low Cost Eight-Way GMIC SMT Power Divider
824 – 960 MHz
Typical Performance Curves @ 25ºC

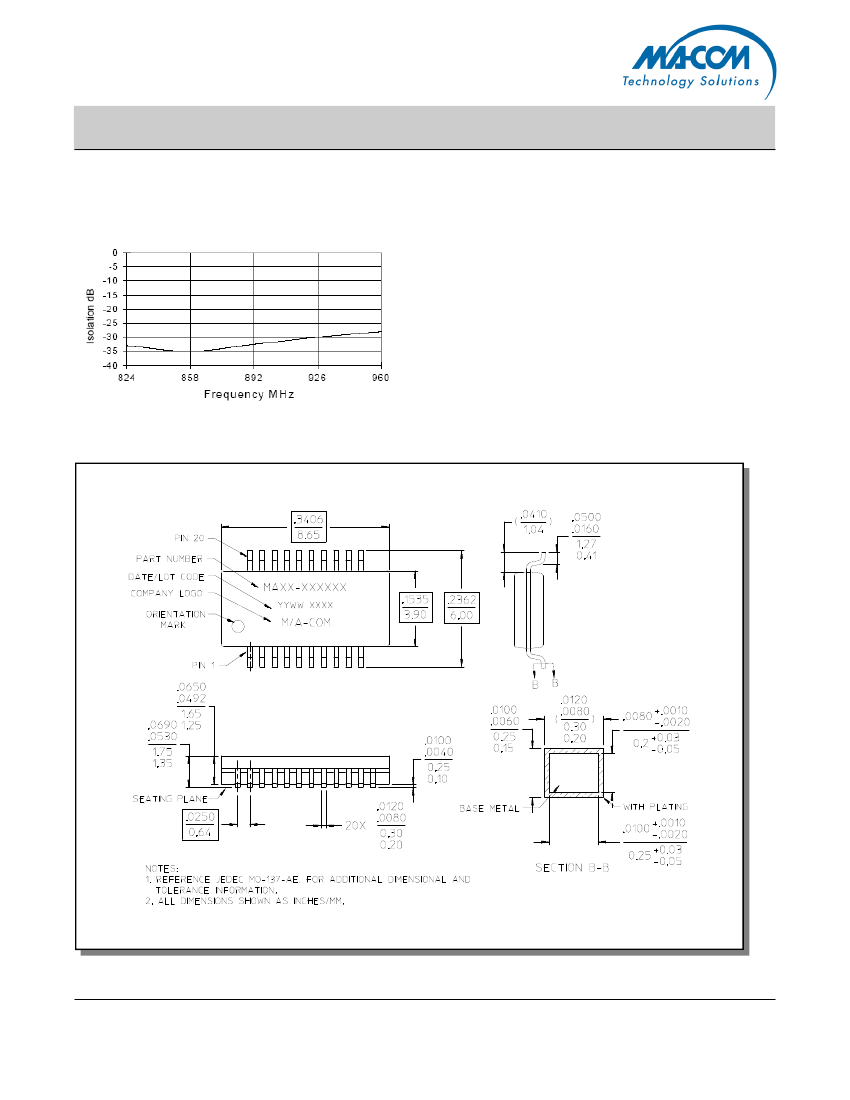

Isolation vs. Frequency
