DU2860T
RF Power MOSFET Transistor
60W, 2-175MHz, 28V
Features
M/A-COM Products
Released;
RoHS Compliant

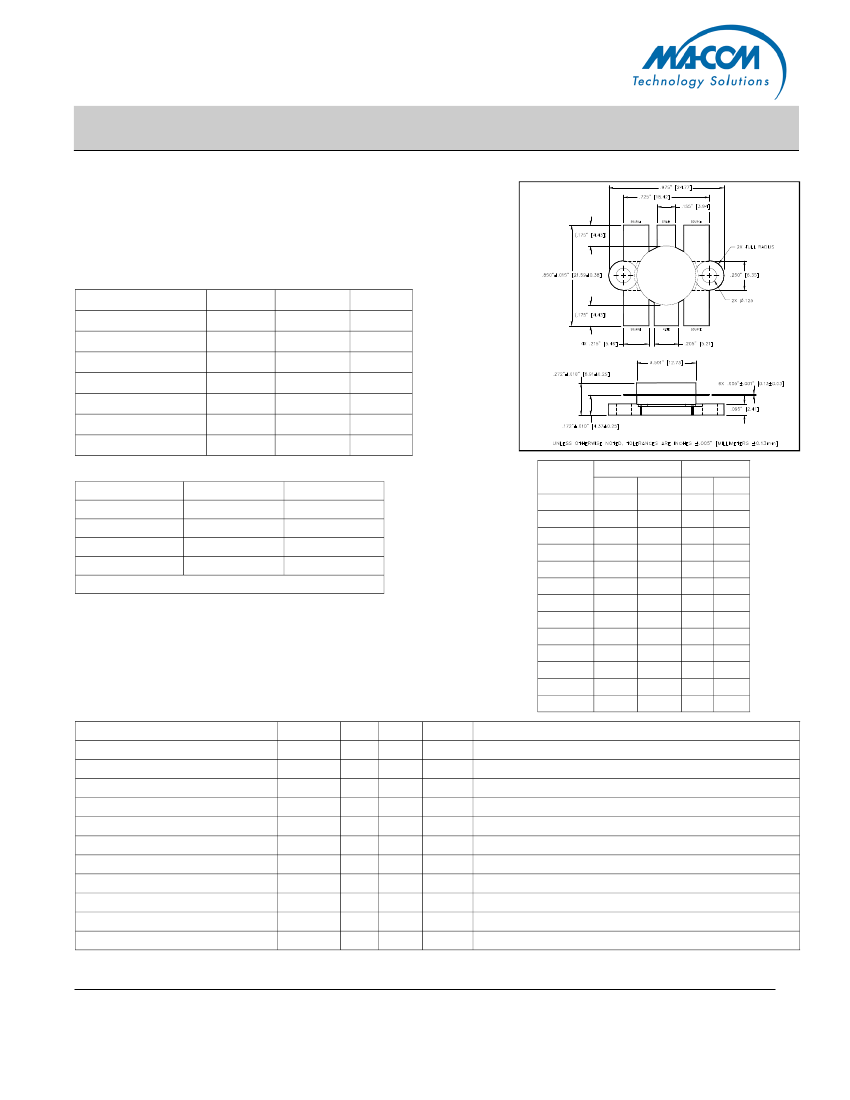

Package Outline
•
•
•
•
•
N-Channel enhancement mode device
DMOS structure
Lower capacitances for broadband operation
High saturated output power
Lower noise figure than bipolar devices
Parameter
Symbol
V
DS
V
GS
I
DS
P
D
T
J
T
STG
θ
JC
Rating
65
20
12
159
200
-65 to +150
1.1
Units
V
V
A
W
°C
°C
°C/W
LETTER
MILLIMETERS
MIN
24.64
18.29
21.21
12.60
6.22
3.81
5.33
5.08
3.05
2.29
4.06
6.68
.10
MAX
24.89
18.54
21.97
12.85
6.48
4.06
5.59
5.33
3.30
2.54
4.57
7.49
.15
INCHES
MIN
.970
.720
.835
.496
.245
.150
.210
.200
.120
.090
.160
.263
.004
MAX
.980
.730
.865
.506
.255
.160
.220
.210
.130
.100
.180
.295
.006
ABSOLUTE MAXIMUM RATINGS AT 25° C
Drain-Source Voltage
Gate-Source Voltage
Drain-Source Current
Power Dissipation
Junction Temperature
Storage Temperature
Thermal Resistance
TYPICAL DEVICE IMPEDANCE
F (MHz)
30
50
100
200
Z
IN
(Ω)
9.0 - j4.0
10.0 - j6.5
6.0 - j5.5
1.1 - j3.0
Z
LOAD
(Ω)
6.0 +j0.0
5.0 + j2.0
4.0 + j3.0
2.0 + j1.9
DIM
A
B
C
D
E
F
G
H
J
K
L
M
V
DD
= 28V, I
DQ
= 300mA, P
OUT
= 60 W
Z
IN
is the series equivalent input impedance of the device
from gate to source.
Z
LOAD
is the optimum series equivalent load impedance as
measured from drain to ground.
ELECTRICAL CHARACTERISTICS AT 25°C
Parameter
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
Gate-Source Leakage Current
Gate Threshold Voltage
Forward Transconductance
Input Capacitance
Output Capacitance
Reverse Capacitance
Power Gain
Drain Efficiency
Load Mismatch Tolerance
Symbol
BV
DSS
I
DSS
I
GSS
V
GS(TH)
G
M
C
ISS
C
OSS
C
RSS
G
P
ŋ
D
VSWR-T
Min
65
-
-
2.0
1.5
-
-
-
13
60
-
Max
-
3.0
3.0
6.0
-
135
120
24
-
-
30:1
Units
V
mA
µA
V
S
pF
pF
pF
dB
%
-
N
Test Conditions
V
GS
= 0.0 V , I
DS
= 15.0 mA
V
GS
= 28.0 V , V
GS
= 0.0 V
V
GS
= 20.0 V , V
DS
= 0.0 V
V
DS
= 10.0 V , I
DS
= 300.0 mA
V
DS
= 10.0 V , I
DS
= 3.0 A ,
Δ
V
GS
= 1.0V, 80
μs
Pulse
V
DS
= 28.0 V , F = 1.0 MHz
V
DS
= 28.0 V , F = 1.0 MHz
V
DS
= 28.0 V , F = 1.0 MHz
V
DD
= 28.0 V, I
DQ
= 300 mA, P
OUT
= 60 W F =175 MHz
V
DD
= 28.0 V, I
DQ
= 300 mA, P
OUT
= 60 W F =175 MHz
V
DD
= 28.0 V, I
DQ
= 300 mA, P
OUT
= 60 W F =175 MHz
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
DU2860T
RF Power MOSFET Transistor
60W, 2-175MHz, 28V
Typical Broadband Performance Curves
GAIN
VS
FREQUENCY
V
DD
=28 V I
DQ
=300 mA P
OUT
=60 W
EFFICIENCY
VS
FREQUENCY
V
DD
=28 V I
DQ
=300 mA P
OUT
=60 W
M/A-COM Products
Released;
RoHS Compliant
25
80
GAIN (dB)
20
EFFICIENCY (%)
70
15
60
10
50
100
150
200
FREQUENCY (MHz)
50
25
50
FREQUENCY (MHz)
100
150
80
POWER OUTPUT (W)
60
40
20
0
0
POWER OUTPUT
VS
POWER INPUT
V
DD
=28 V I
DQ
=300 mA
150MHz
100MHz
200MHz
0.5
1
1.5
2
2.5
2.75
3
POWER INPUT (W)
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
DU2860T
RF Power MOSFET Transistor
60W, 2-175MHz, 28V

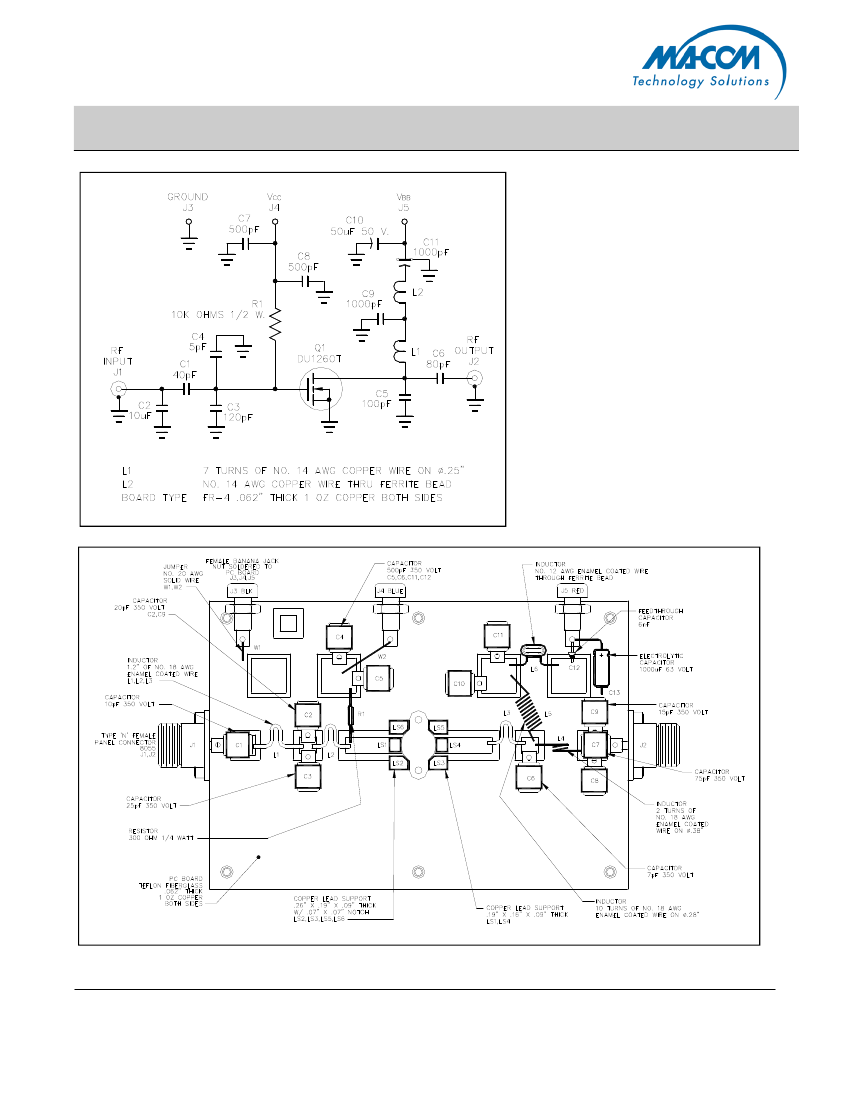

TEST FIXTURE SCHEMATIC
M/A-COM Products
Released;
RoHS Compliant
TEST FIXTURE ASSEMBLY
3
