176008018022-12 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 176008018022-12

176008018022-12: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size89KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

176008018022-12 Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

176008018022-12 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.157 inch
subject depth	0.3 inch
body length	0.882 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	176
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.048 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	22

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

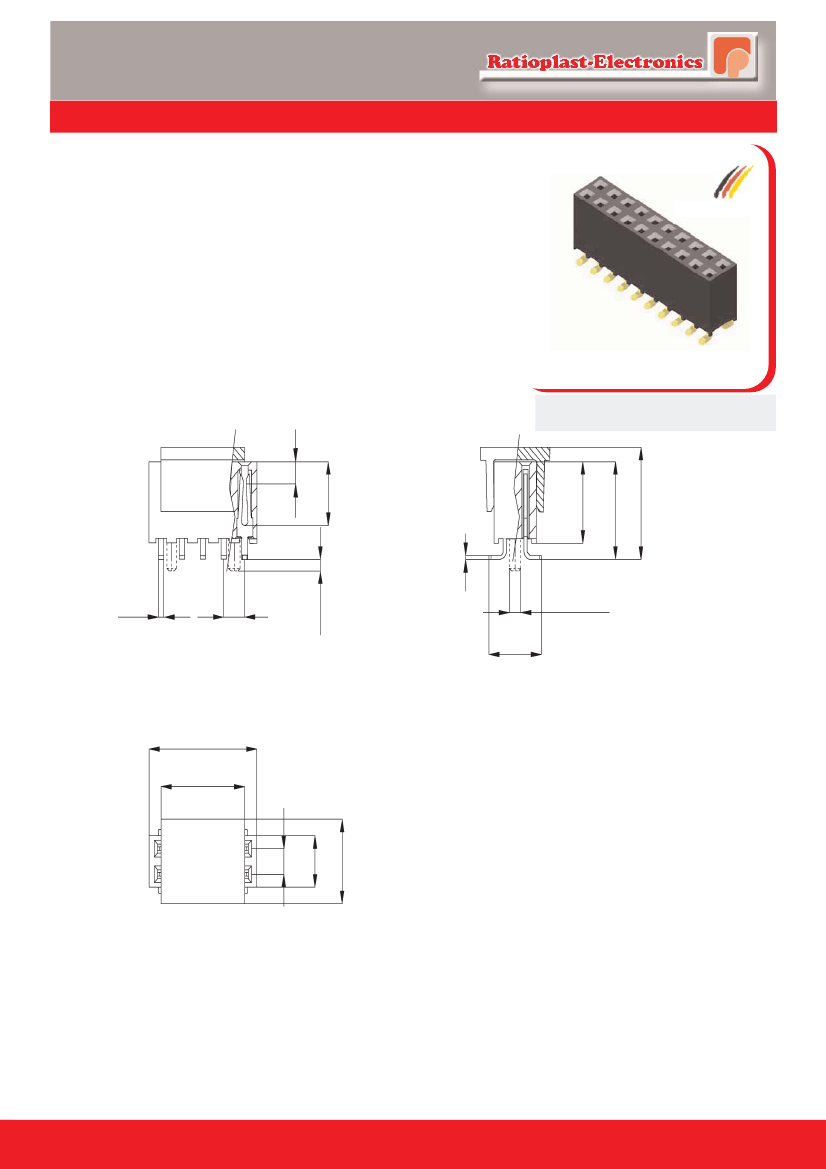

Serie 176

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

SMT BUCHSENLEISTE

SMT FEMALEHEADER

RASTER 2,0mm mit Vierkantstift 0,5mm

PITCH2,0mm with square contact 0,5mm

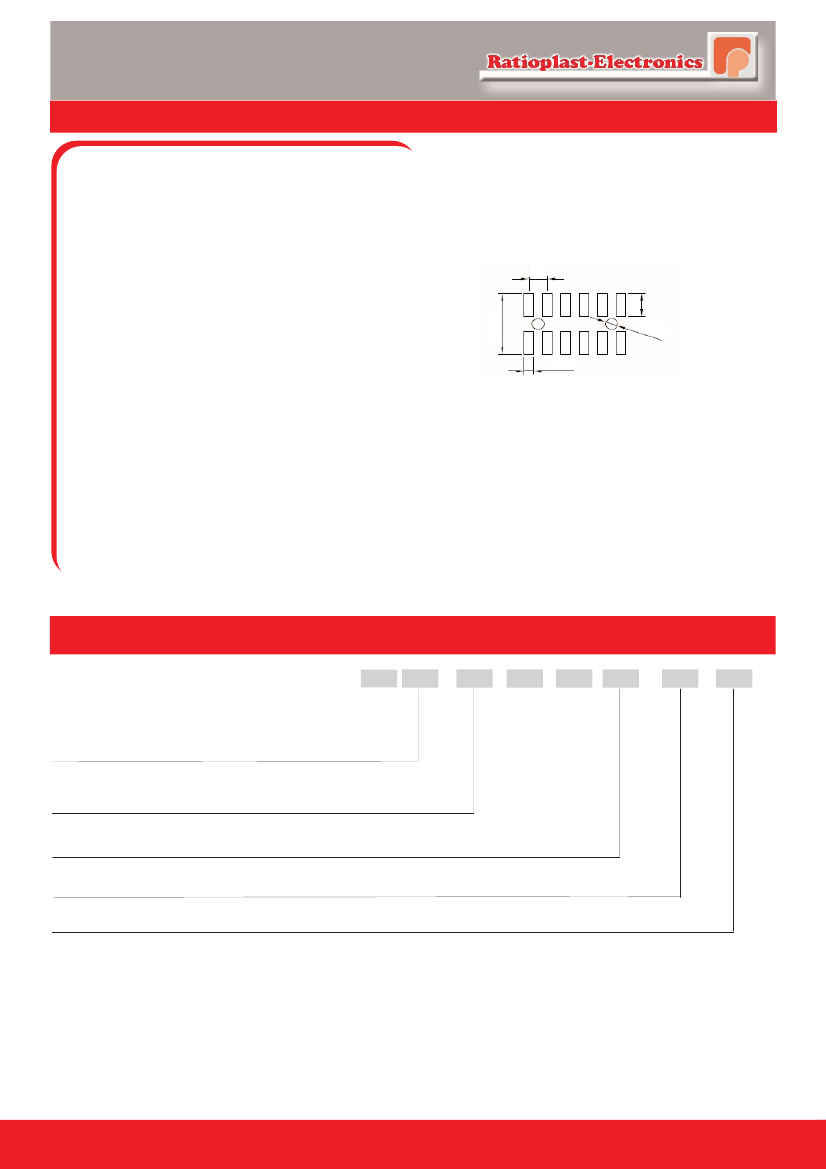

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

Glass fibre reinforced polyamide

High temperature, UL94-V0

Black

CuZn30

250 V AC

- 55°C ... +125°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

5,6

2,54

Ø 1,20

0,89

Glasfaserverstärktes Polyamid

Hochtemperaturfest, UL94-V0

Schwarz

CuZn30

250 V AC

- 55°C ... +125°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

2,00

More technical Information on request

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

176 XX

XXX - XX

00 = Ohne Positionierhilfe - Without locating peg (Standard)

01 = Mit Positinierhilfe - With locating peg

Veredelung - Plating

80 = 0,75μm Selektiv vergoldet - Selective gold plated

(Au/Sn) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

8 = 2,0 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (010, 014, 020, 022, 024, 034)

(andere Polzahlen auf Anfrage -Other number of contacts on request)

12 = Verpackt auf Rolle mit PP-Pad - Reel packing with PP-Pad (Standard)

Seite: 144

Version 1 / 2011

www.ratioplast.com
