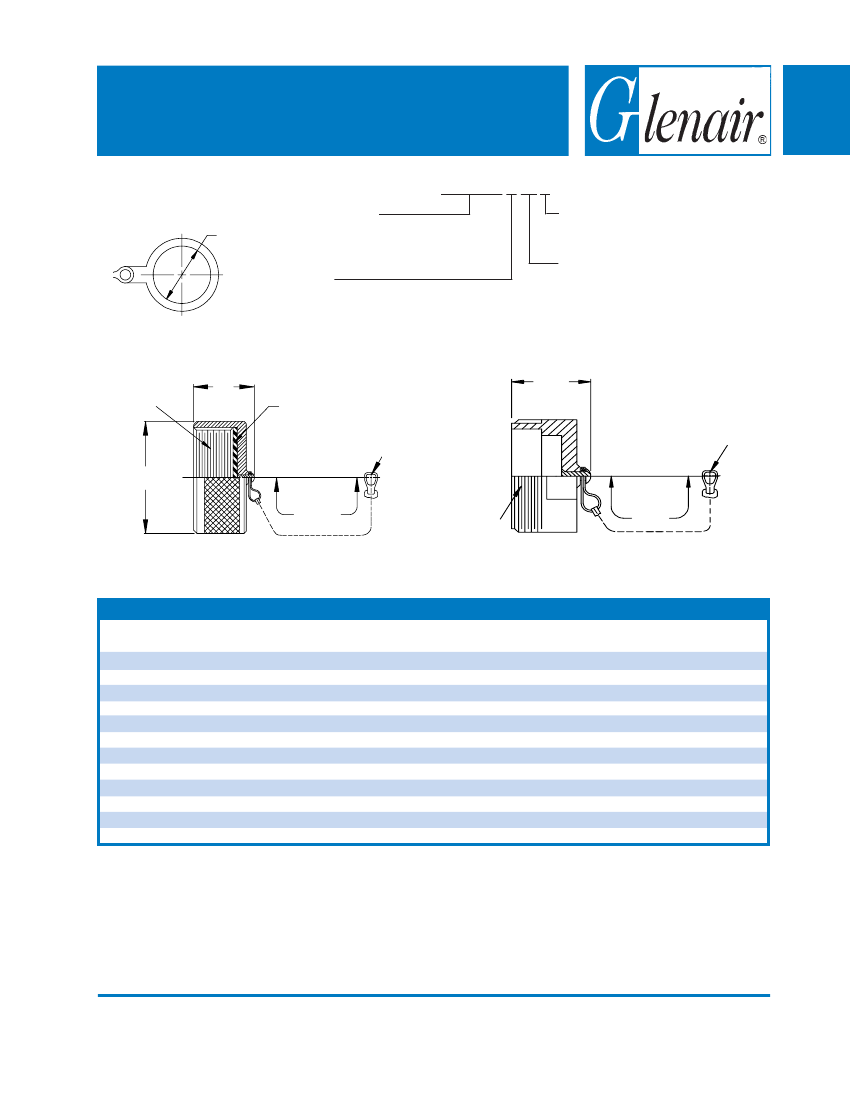

MS17349 and MS17350
Protective Covers
MS17349 C 28 A
MIL-C-22992
L
Basic Part No.
MS17349 = Receptacle Cover
MS17350 = Plug Cover
Finish
C = Conductive
N = Non-Conductive
Attachment Type
(MS17349 Only)
Dash No.
MS17349
Attachment Type A
E Thread
H
Gasket
Attachment
(Type B)
M Dia
1.500
(38.1)
Max
Attachment
M Dia
G
J
J
E Thread
MS17349 Receptacle Cover
TABLE I
Dash
No.
12
14
16
18
20
22
24
28
32
36
40
44
E
Thread
.8750-0.1P-0.2L-DS
1.0000-0.1P-0.2L-DS
1.1250-0.1P-0.2L-DS
1.2500-0.1P-0.2L-DS
1.3750-0.1P-0.2L-DS
1.5000-0.1P-0.2L-DS
1.7500-0.1P-0.2L-DS
2.0000-0.1P-0.2L-DS
2.2500-0.1P-0.2L-DS
2.5000-0.1P-0.2L-DS
2.7500-0.1P-0.2L-DS
3.0000-0.1P-0.2L-DS
G
Max
1.094 (27.8)
1.219 (31.0)
1.344 (34.1)
1.469 (37.3)
1.562 (39.7)
1.688 (42.9)
1.938 (49.2)
2.219 (56.4)
2.469 (62.7)
2.719 (69.1)
2.969 (75.4)
3.219 (81.8)
H
Max
.765 (19.4)
.765 (19.4)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
MS17350 Plug Cover
J Chain
Length
5.00 (127.0)
5.00 (127.0)
5.00 (127.0)
5.00 (127.0)
5.00 (127.0)
6.00 (152.4)
6.00 (152.4)
6.00 (152.4)
6.00 (152.4)
6.00 (152.4)
6.00 (152.4)
6.00 (152.4)
L
Min.
1.016 (25.8)
1.141 (29.0)
1.266 (32.2)
1.391 (35.3)
1.516 (38.5)
1.641 (41.7)
1.891 (48.0)
2.141 (54.4)
2.391 (60.7)
2.641 (67.1)
2.891 (73.4)
3.141 (79.8)
M Dia
Min.
.150 (3.8)
.150 (3.8)
.150 (3.8)
.177 (4.5)
.177 (4.5)
.177 (4.5)
.177 (4.5)
.177 (4.5)
.199 (5.1)
.199 (5.1)
.199 (5.1)
.199 (5.1)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
66-3
Protective
Covers
