LCB1806-151 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LCB1806-151

LCB1806-151: DescriptionData Line Filter, 0.2A; CategoryAnalog mixed-signal IC filter; File Size15KB，1 Pages; ManufacturerInductor Supply Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

LCB1806-151 Overview

Data Line Filter, 0.2A

LCB1806-151 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Inductor Supply Inc
package instruction	1806
Reach Compliance Code	unknown
ECCN code	EAR99
shell code	1806
structure	Multilayer Chip
Maximum DC resistance	0.2 Ω
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.6 mm
length	4.5 mm
Material	Ferrite
method of packing	TR
physical size	L4.5XB1.6XH1.6 (mm)/L.1772XB.063XH.063 (inch)
Rated current	0.2 A
series	LCB1806
width	1.6 mm

Preview

Download Datasheet

View All

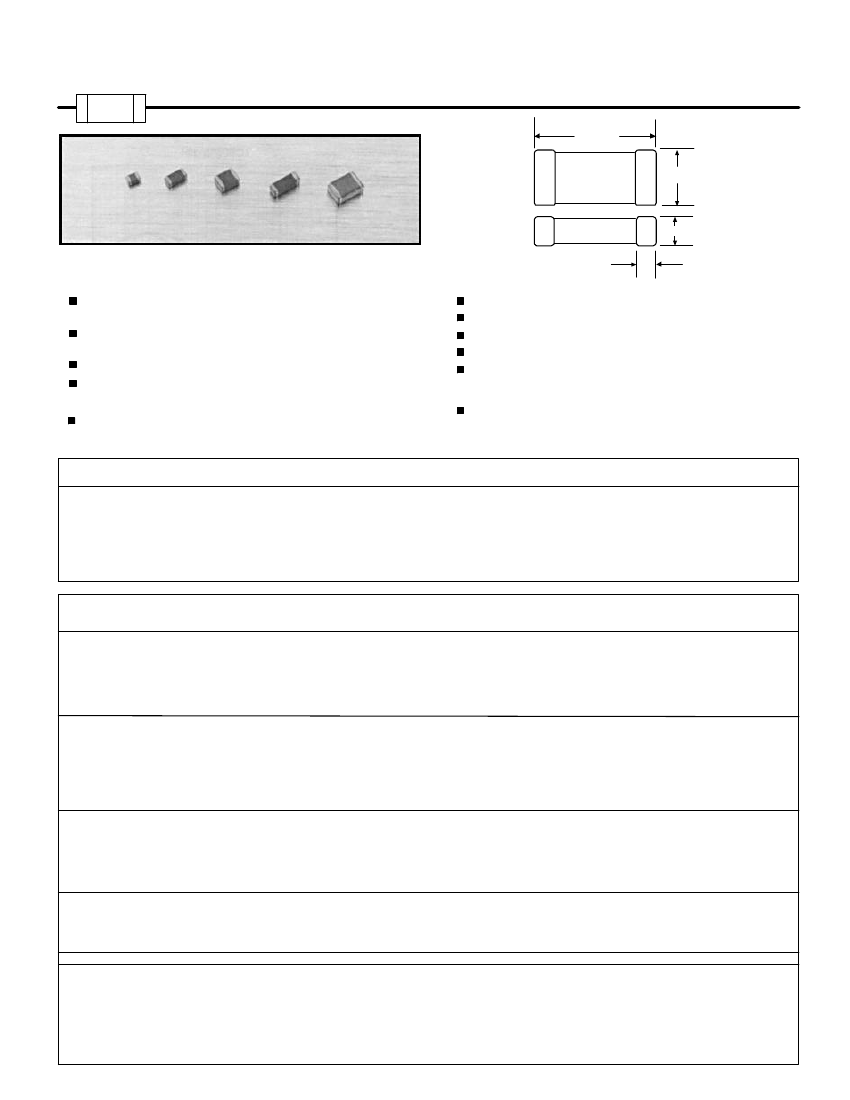

LCB

Multi-Layer

Chip Beads

Length

Width

Thickness

LCB0603, LCB0805, LCB1206, LCB1210, LCB1806, LCB1812

APPLICATIONS

To eliminate EMI/RFI attenuation and suppression

on electr onic pr oducts

Small VCRs , video cameras, hand-held TVs , DAT

(digital audio tape)

Communication devices

Portable electronic products

PACKAGING

Tape and Reel only.

Note: Currentrating based on maxim um ± 35°C rise f or High Current Beads .

Terminal

FEATURES

High inherent Q

Grea ter impedance per unit volume

Lower DC resistance

Can be mounted with surface mounting equipment

Available in 6 different sizes and 3 different

ma ter ials tha t will permit their use in a wide range

of applications

Suitable f or flow and re-f low soldering systems

PART

NUMBER

LCB0603

LCB0805

LCB1206

LCB1210

LCB1806

LCB1812

LENGTH

.063” (1.6 mm)

.079” (2.0 mm)

.126” (3.2 mm)

.120” (3.2 mm)

.180” (4.5 mm)

WIDTH

.032” (0.79mm)

.049” (1.20mm)

.063” (1.60mm)

.100” (2.50mm)

.060” (1.60mm)

.120” (3.20mm)

THICKNESS

.032” (0.79mm)

.034” (0.80mm)

.044” (1.10mm)

.050” (1.30mm)

.060” (1.60mm)

.050” (1.50mm)

TERMINAL

.02” ± .001” (.5mm)

PART

NUMBER

LCB0603-800

LCB0603-121

LCB0603-301

LCB0805-070

LCB0805-100

LCB0805-170

LCB0805-400

LCB0805-800

LCB0805-121

LCB0805-301

LCB1206-190

LCB1206-260

LCB1206-310

LCB1206-600

LCB1206-900

LCB1206-601

LCB1206-102

LCB1210-310

LCB1210-520

LCB1210-600

LCB1210-101

LCB1806-600

LCB1806-800

LCB1806-101

LCB1806-151

LCB1812-700

LCB1812-121

LCB0805H-110

LCB0805H-500

LCB1206H-310

LCB1206H-601

LCB1210H-600

LCB1806H-800

LCB1806H-151

LCB1812H-121

Z @ 100 MHz

120

300

120

300

600

1000

100

150

120

600

150

120

TOLERANCE

±25%

HIGH CURRENT MULTILAYER BEADS

±25%

DC RESISTANCE

OHMS

MAXIMUM (Ω )

.20

.35

0.1

0.3

0.4

0.5

0.9

0.2

0.3

0.9

0.2

0.3

0.2

0.3

0.2

0.4

.03

.04

.50

.10

.15

.30

.10

RATED DC

CURRENT MAX

(mA)

200

100

600

500

400

300

200

500

200

400

200

300

400

200

300

1500

3000

2000

1000

2000

LCB1806-151 Related Products

	LCB1806-151	LCB1206-900	CF-1215/8/5/9	LCB1206-600	LCB1206H-601	LCB1206-310	LCB1206-260	LCB1206H-310
Description	Data Line Filter, 0.2A	Passive Filter	Analog Circuit	Data Line Filter, 0.2A	Data Line Filter, 1A,	Data Line Filter, 0.5A	Data Line Filter, 0.5A	Passive Filter
package instruction	1806	1206	,	1206	1206	1206	1206	1206
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	-
shell code	1806	1206	-	1206	1206	1206	1206	1206
structure	Multilayer Chip	Multilayer Chi	-	Multilayer Chip	Multilayer Chip	Multilayer Chip	Multilayer Chip	Multilayer Chip
Maximum DC resistance	0.2 Ω	0.3 Ω	-	0.2 Ω	0.5 Ω	0.2 Ω	0.2 Ω	0.04 Ω
maximum frequency	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
minimum frequency	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
high	1.6 mm	1.1 mm	-	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
length	4.5 mm	3.2 mm	-	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Material	Ferrite	Ferrite	-	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
method of packing	TR	TR	-	TR	TR	TR	TR	TR
physical size	L4.5XB1.6XH1.6 (mm)/L.1772XB.063XH.063 (inch)	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)	-	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)	L3.2XB1.6XH1.1 (mm)/L.126XB.063XH.0433 (inch)
Rated current	0.2 A	0.2 A	-	0.2 A	1 A	0.5 A	0.5 A	2 A
series	LCB1806	LCB1206	-	LCB1206	-	LCB1206	LCB1206	LCB1206
width	1.6 mm	1.6 mm	-	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Base Number Matches	-	1	-	1	1	1	1	1
