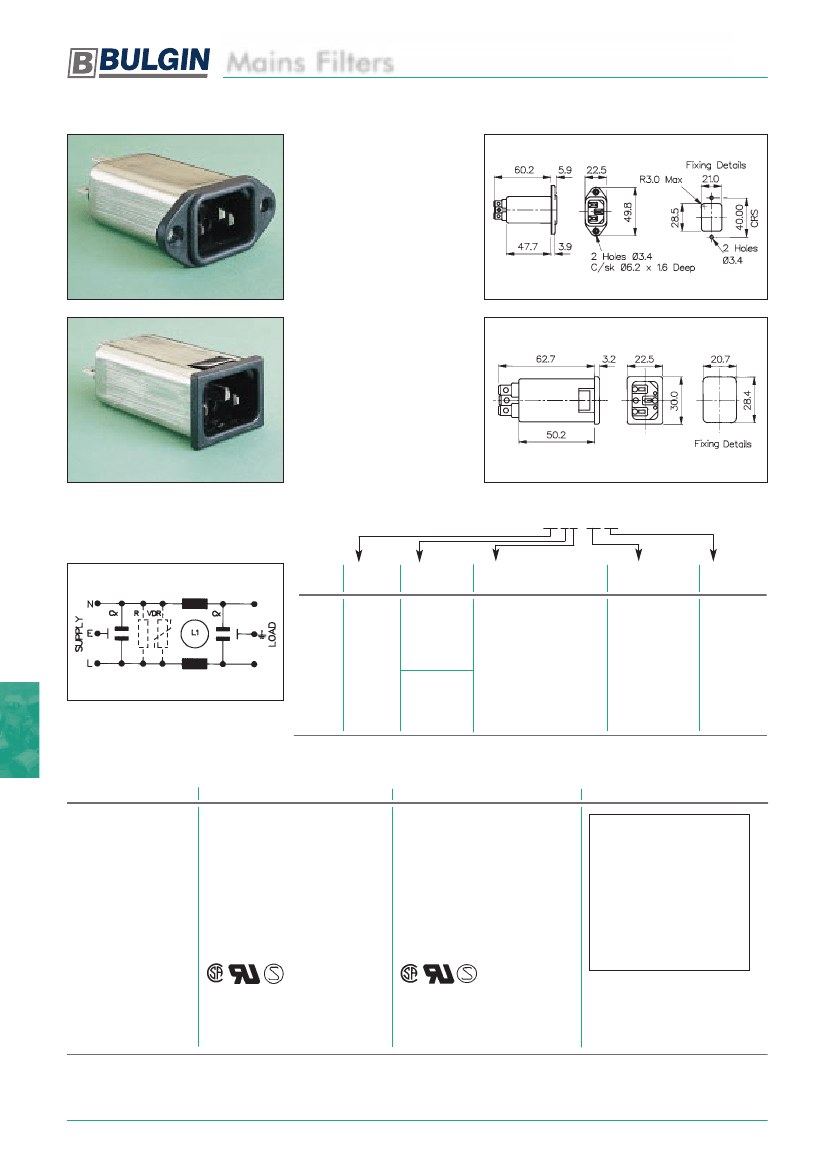

Mains Filters
Medical High Performance IEC Power Inlets Flange and Snap Fit
Panel Mounting
1, 3, 6 or 10 Amp Current
Rating
Medical High Performance
2 Alternative Circuits
Optional Additional
Components
Flange PS06/B
2.8 or 6.3mm tabs
Snap Fit for 1, 1.5, 2 or
3mm Panels
1, 3, 6 or 10 Amp Current
Rating
Medical High Performance
2 Alternative Circuits
Optional Additional
Components
Snap Fit PS07/B
2.8 or 6.3mm tabs
PS06 or PS07/Bxx x x /xx xx
Series
PS06/B
PS07/B
Rating
01 = 1A
03 = 3A
06 = 6A
L/C Circuit
1 = Version 1
3 = Version 3
Additional
Components
0 = None
1 = Bleed (R) Resistor
2 = Surge (VDR) Protection
3 = “R” plus “VDR”
Tag Type and
Configuration
28 = 2.8mm
Panel
Thickness
00 = Flange
63 = 6.3mm tabs 10 = 1.0mm
15 = 1.5mm
20 = 2.0mm
30 = 3.0mm
10 = 10A 3 = Version 3
Filters
Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
Max. Ambient Temp.:
(@ Full Load)
Test Voltage:
Approvals:
PS06/Bxxxx/xx00
250V a.c. 50-400Hz
<100µA (typically 5µA 250V. 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
PS07/Bxxxx/xxxx
250V a.c. 50-400Hz
<100µA (typically 5µA 250V. 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Example
PS07/B0330/6320 =
PS07 series, snap to panel fitting,
filtered IEC power inlet, for
medical applications, rated at 3
amperes. L/C circuit version 3,
i.e. L1 = 2 x 3mH, Cx = 2 x
47nF, without bleed resistor or
surge protection device fitted,
panel thickness 2.0mm, with
6.3mm tabs.
Mating Connectors:
PX0587, PX0587/SE, PX0588
PZ0100, PZ0200
PX0587, PX0587/SE, PX0588
PZ0100, PZ0200
