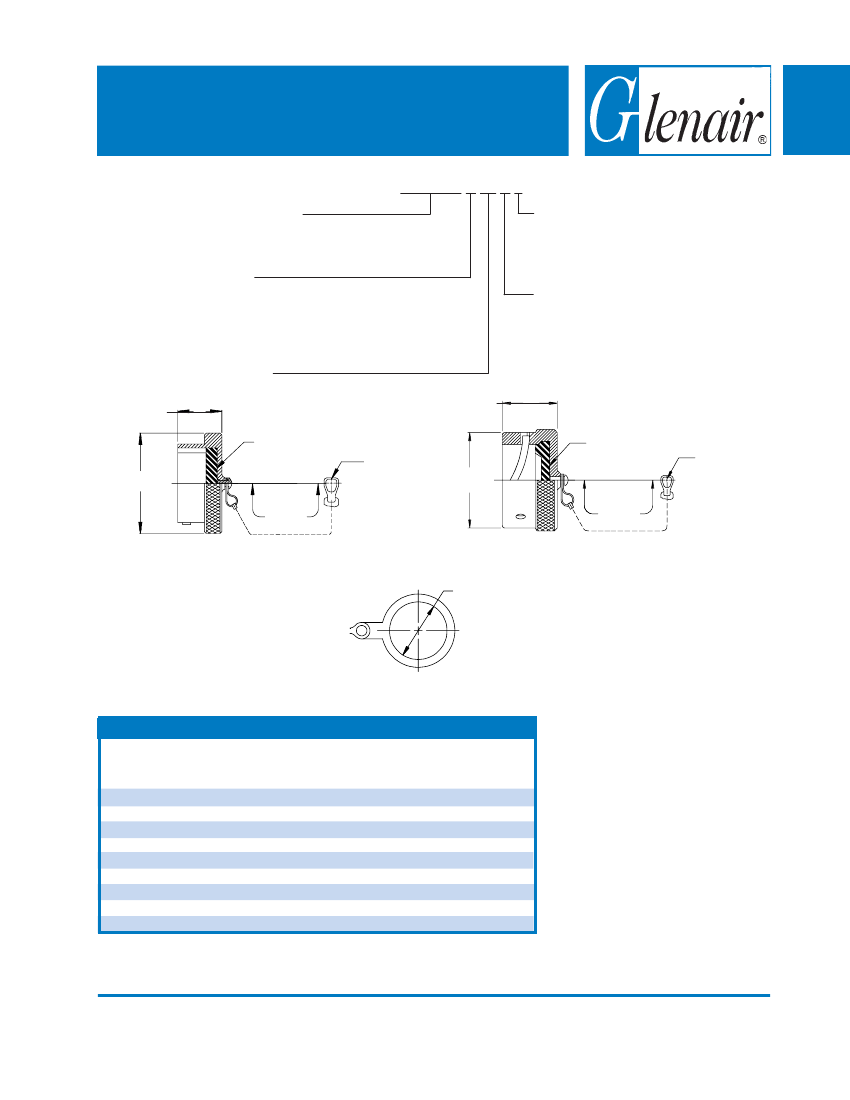

MS27501 and MS27502
Protective Covers
MS27501 B 19 C L
MIL-DTL-38999
Series I
Basic Part No.
MS27501 = Plug Cover
MS27502 = Receptacle Cover
Finish
A = Gold Iridite Over Cadmium Over Nickel
B = 500 Hour Cadmium Olive Drab
C = Anodize
F = Electroless Nickel
Dash No.
.90 (22.9)
Max
Gasket
G
J
Length (Omit for Standard)
L = 5.0 (127.0)
M = 6.0 (152.4) MS27501 Only
N = 7.0 (177.8) MS27501 Only
Attachment Style
A = No Attachment
C = Chain
N = Chain with Ring (MS27502 Only)
.82 (20.8)
Max
Gasket
Attachment
.167 (4.2)
Dia
H
J
Attachment
Style C
.167 (4.2)
Dia
MS27501 Plug Cover
MS27502 Receptacle Cover
K
MS27502 Attachment Type N
TABLE I
Shell
Size
9
11
13
15
17
19
21
23
25
G Dia
Max
.820 (20.8)
.940 (23.9)
1.070 (27.2)
1.190 (30.2)
1.320 (33.5)
1.440 (36.6)
1.570 (39.9)
1.690 (42.9)
1.820 (46.2)
H
Max
.82 (20.8)
.94 (23.9)
1.10 (27.9)
1.22 (31.0)
1.34 (34.0)
1.46 (37.1)
1.58 (40.1)
1.70 (43.2)
1.83 (46.5)
J Nom
Length
3.00 (76.2)
3.00 (76.2)
3.50 (88.9)
3.50 (88.9)
3.50 (88.9)
3.50 (88.9)
4.00 (101.6)
4.00 (101.6)
4.00 (101.6)
K Dia
Min
.70 (17.8)
.84 (21.3)
1.01 (25.7)
1.14 (29.0)
1.26 (32.0)
1.39 (35.3)
1.51 (38.4)
1.64 (41.7)
1.76 (44.7)
1. For complete dimensions see
applicable Military Specification.
2. Metric dimensions (mm) are
indicated in parentheses.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
66-5
