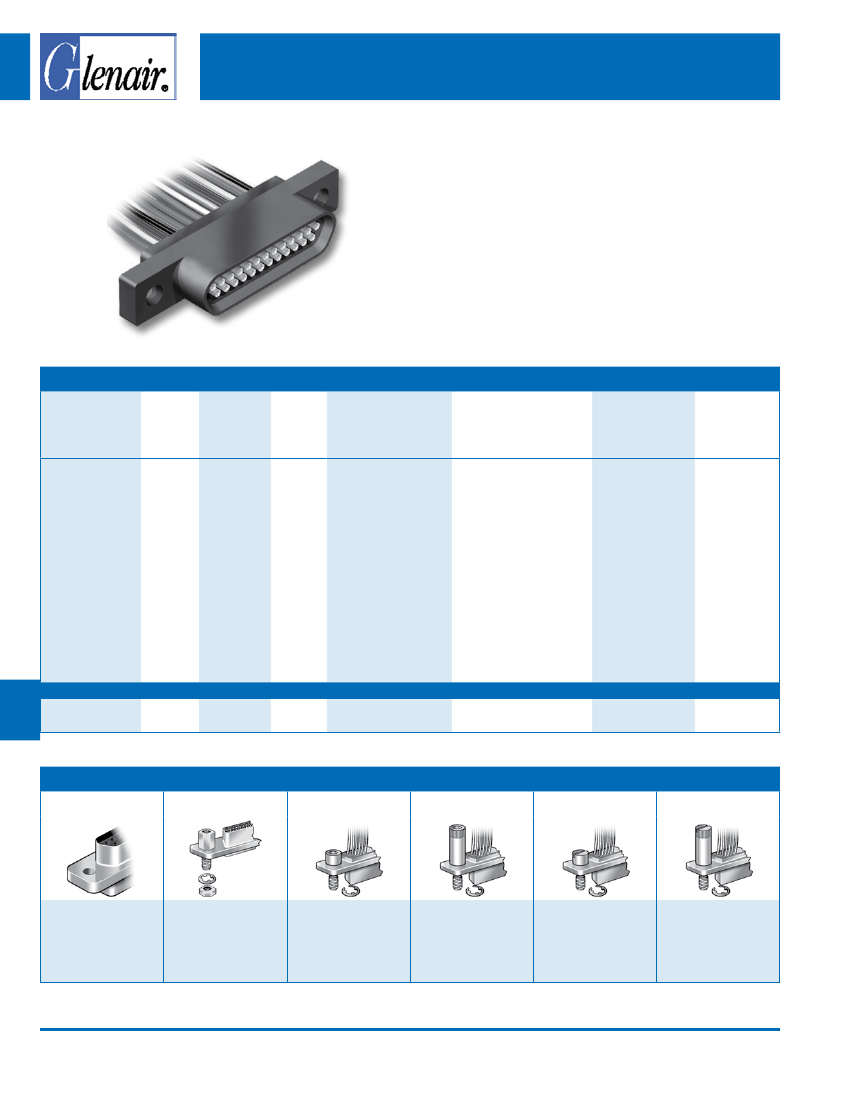

MWDL-15P-4K2-18: DescriptionMicro-D Plastic Shell; File Size383KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

MWDL-15P-4K2-18 Overview

Micro-D Plastic Shell

Preview

Download Datasheet

View All

Micro-D

Plastic

Micro-D Plastic Shell

Pre-Wired Pigtails, Insulated Wire

Micro-D Pre-Wired Pigtails

– These connectors feature gold

plated TwistPin contacts and mil spec crimp termination.

High temperature liquid crystal polymer (LCP) housings

are 30% glass-filled.

Choose the Wire Type and Size To Fit Your Application

– If

on-hand availability is most important, choose #26 AWG

Type K mil spec Teflon

wire.

MWD Low-Profile Plastic Micro-D’s

are non-environmental

and are smaller and lighter weight than metal shell

versions.

MWDL

– 25

– 4

Series

MWDL

MWD Series

(“L” designates

LCP thermoplastic

housing)

HOW TO ORDER MWD PLASTIC SHELL PRE-WIRED MICRO-D CONNECTORS

Contact

Layout

Contact

Type

– Pin

– Socket

Wire

Gage

(AWG)

– #24

– #26

– #28

– #30

Wire Type

–

M22759/11

600 Vrms Teflon

(TFE)

Wire Color

–

White

–

Yellow

–

Color-Coded Stripes

Per MIL-STD-681

Wire Length

Inches

Hardware

ire Length In Inches.

–

M22759/33

“18” Specifies 18

Inches.

600 Vrms

Modified Cross-

Linked Tefzel

(ETFE)

600 VrmsType

E M16878/4

(TFE) (replaced

by M22759/11

for mil spec

applications)

–

Ten Color Repeating

–

NEMA HP3-EB

Sample Part Number

– 18

MICRO-D MOUNTING HARDWARE

Thru-Hole

Jackpost

Jackscrew

Hex Head

Removable

E-ring

Order Hardware

Separately

Removable

Includes Nut and

Washer

Jackscrew

Hex Head

Removable

E-ring

Extended

Jackscrew

Slot Head

Removable

E-ring

Jackscrew

Slot Head

Removable

E-ring

Extended

CAGE Code 06324/0CA77

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

www.glenair.com

• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

K-4
