LFAE50230045100 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> LFAE50230045100

Preview

LFAE50230045100: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size117KB，1 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

LFAE50230045100 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

LFAE50230045100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	5000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	45 mm
dielectric materials	ALUMINUM (WET)
ESR	16 mΩ
length	100 mm
Manufacturer's serial number	LFAE50230045100
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
Package form	Panel Mount
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	300 V
series	LFAE50230045100
Terminal pitch	10 mm

Preview

Download Datasheet

View All

LeclanchÄ Capacitors

48, av. de Grandson

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

capinfo@Lcap.ch

www.Lcap.ch

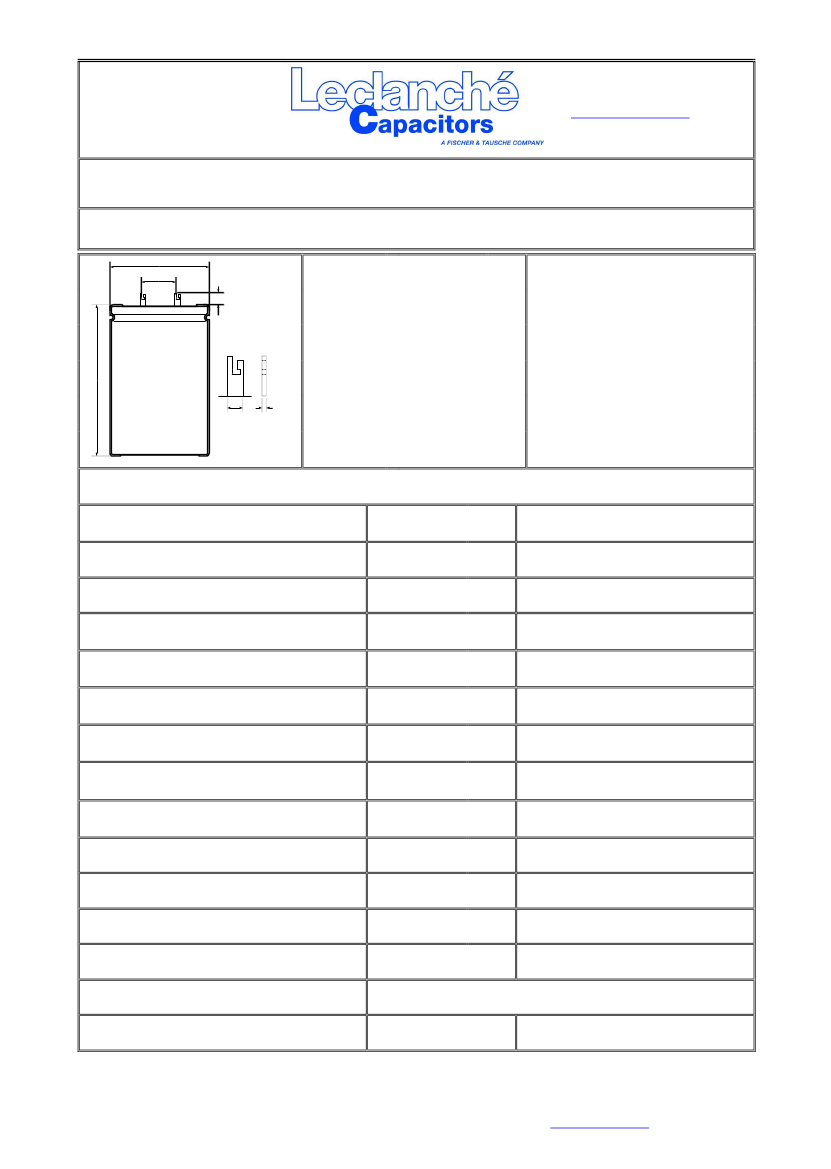

Drawing No. : 100010998

created from : hm 19/03/2013 11:27:00

Part Number : LFAE50230045100

D

+1

a

Ä 0,5

€

D :

h

Ä 1,5

45 mm

100 mm

10 mm

L :

a :

h :

0,8

Ä 0,1

4,0

L

Ä1

Terminals

: solder lugs

Electrical Parameter

Rated Capacitance ( C

R

)

@ 100 Hz / 20 ÅC

5000

Ä10

300

330

2

9000

16

5

14

20

ÇF

%

V

ÇA

m•

%

m•

nH

Tolerance

Rated Voltage ( U

R

)

Surge Voltage ( U

S

)

max. 5 x 1 min / h

Reverse Voltage ( U

U

)

max. 1 s

Leakage Current ( I

L

)

@ U

R

/ 5 min / 20 ÅC

ESR typ.

@ 100 Hz / 20ÅC

Tan

‚

typ.

@ 100 Hz / 20ÅC

Z max.

@ 10 kHz / 20ÅC

ESL typ.

IEC Climatic category / Standards

Applications

Your article No. / Project

40/065/56

photo flash

IEC 60384-4

LeclanchÄ Capacitors for Critical Applications and Extreme Environments

1400 Yverdon, Switzerland Tel +41 24 445 66 88 Fax +41 24 445 66 89 E-mail

capinfo@Lcap.ch

www.Lcap.ch
