Fil. A
20
15
ØB
Accessories

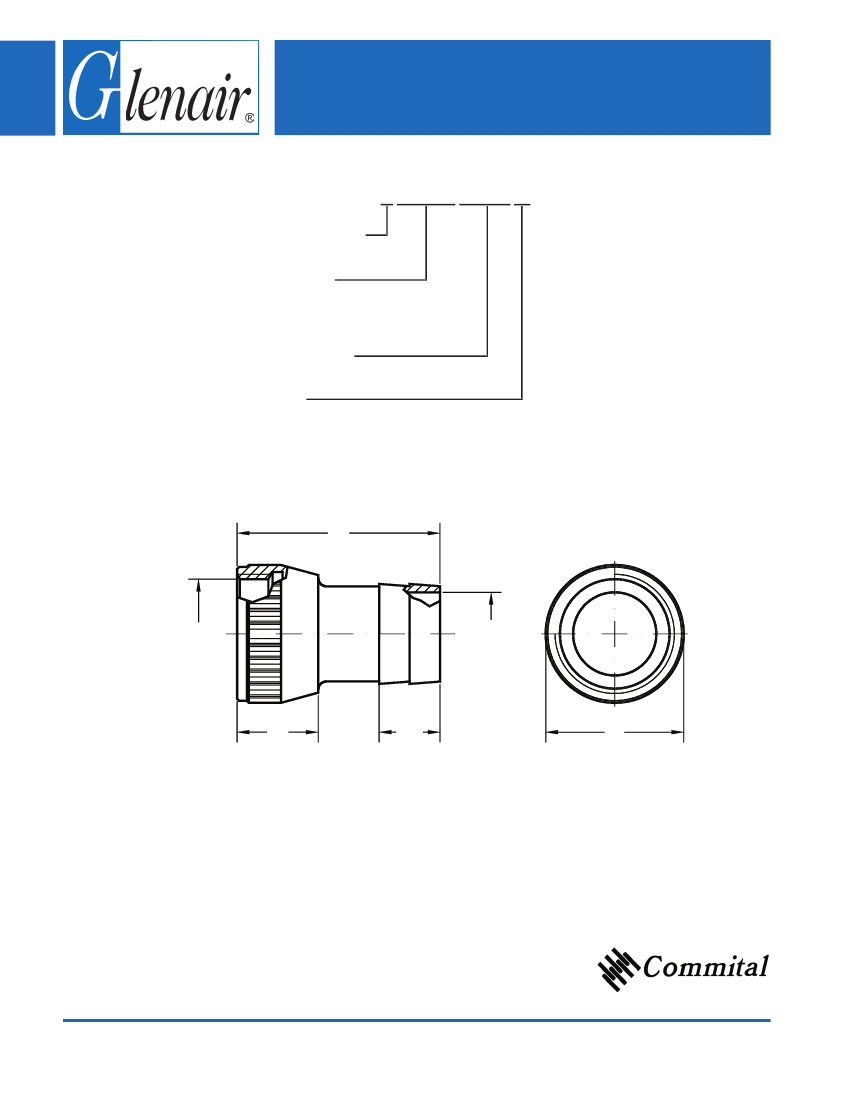

Reverse Bayonet
Assemblies
for Termination of UNI4883 Rubber Conduit
IT 37267-XXBRXX
BR Adapter
IT 37267-32 BR4035 F2
MIL-C-5015 Compatible
Accessory
Basic Part Number
and Shell Size
Designator
(Table I)
Nipple End Dimension
Designator
Finish Options
(Table II)
50
ØQ
Application Notes:
1. Backshell for the attachment of UNI4883 type rubber conduit.
2. Standard materials configuration consists of aluminum alloy with cadmium olive drab finish.
3. Other types of front and rear connector accessories are available.
See our website and/or contact the factory for complete information.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-4
for Termination of UNI4883 Rubber Conduit
TABLE I: ADAPTER PART NUMBERS, SHELL SIZE, THREAD AND DIMENSIONS
Pa rt N umbe r
37267-10BR 1712
37267-18BR 2722
37267-20BR 1712
37267-20BR 2722
37267-20BR 2833
37267-28BR 2520
37267-28BR 2722
37267-28BR 3126
37267-28BR 3328
37267-28BR 3530
37267-28BR 3833
37267-28BR 5045
37267-32BR 3126
37267-32BR 3328
37267-32BR 3833
37267-32BR 4035
37267-32BR 5045
37267-36BR 3530
37267-36BR 3833
37267-36BR 4035
37267-36BR 5045
37267-40BR 4136
37267-40BR 4540
37267-40BR 5045
37267-40BR 5550
S he ll size
10SL
18
20 - 22
20 - 22
20 - 22
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
32
32
32
32
32
36
36
36
36
40
40
40
40
A T hre a d
0.6250 - 24UNEF
1.0000 - 20UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.2500 - 16UN
2.2500 - 16UN
2.2500 - 16UN
2.2500 - 16UN
ØB
±0.1
10.5
20.5
10.5
20.5
31.5
16.5
20.5
22.5
26.5
26.5
31.5
36.2
24.5
26.5
31.5
31.5
40.0
26.5
31.5
31.5
43.5
31.5
38.5
43.5
48.5
ØQ
±0.2
20.0
30.0
34.0
34.0
42.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
53.0
53.0
53.0
53.0
53.0
57.4
57.4
57.4
57.4
63.0
63.0
63.0
63.0
IT 37267-XXBRXX
BR Adapter
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
TABLE II: MODIFICATION CODES
FINISH OPTIONS
Sym Description
F2
F6
F7
F8
Bright Nickel Plating
Black Electrodeposited Paint
Black Zn-Co Plating
Olive Drab Zn-Co Plating
Omit for standard version (see note 2)
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-5
