IT 90376-XX (R)

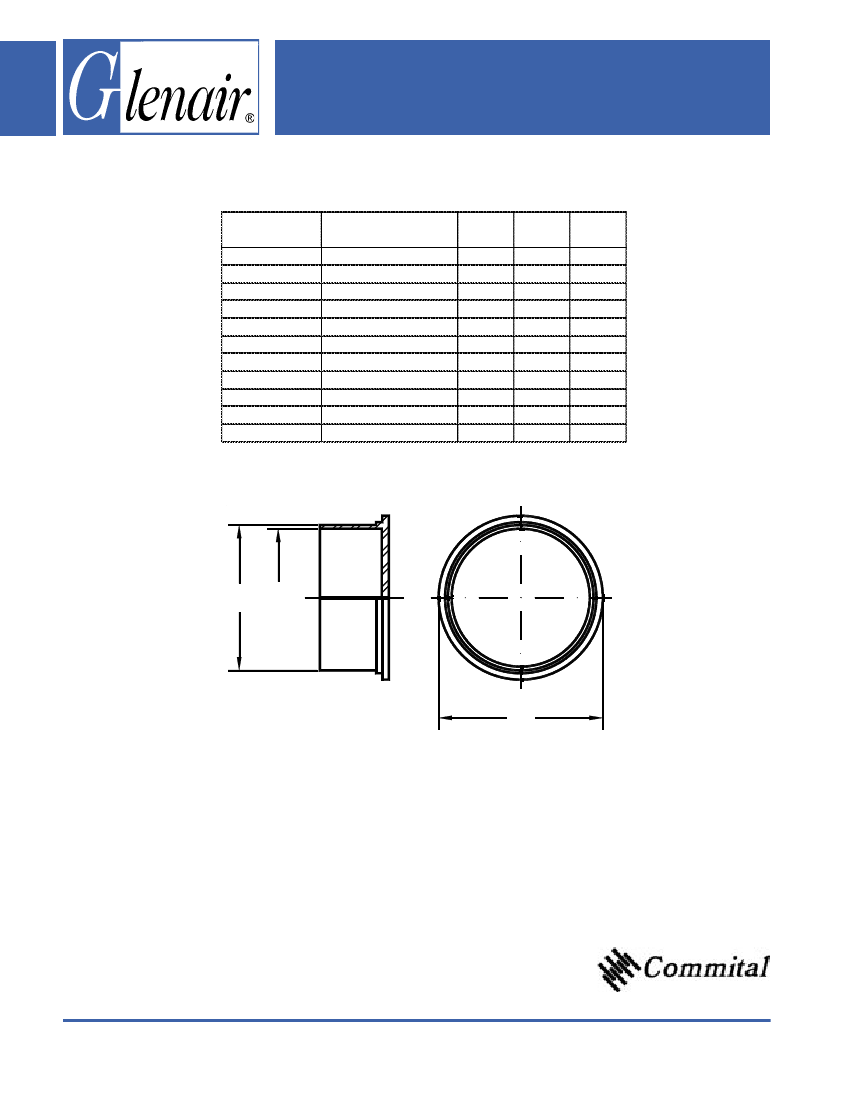

Plug Connector Protective Plastic Dust Cap
TABLE I: PLUG PLASTIC DUST CAP
PART NUMBERS, SHELL SIZE AND DIMENSIONS
P a rt N umbe r
IT 90376-10R
IT 90376-14R
IT 90376-16R
IT 90376-18R
IT 90376-20R
IT 90376-22R
IT 90376-24R
IT 90376-28R
IT 90376-32R
IT 90376-36R
IT 90376-40R
S he ll Size
Plug 10SL
Plug 14S
Plug 16S - 16
Plug 18
Plug 20
Plug 22
Plug 24
Plug 28
Plug 32
Plug 36
Plug 40
ØA
±0.25
15.37
21.59
23.80
27.76
31.28
34.04
37.16
43.56
49.91
56.26
61.98
ØB
±0.25
16.89
22.99
26.29
29.34
33.04
35.81
38.94
45.46
51.82
58.16
64.26
ØC
±0.78
21.33
28.57
30.99
33.78
37.21
40.38
43.18
49.53
56.39
61.85
67.56
ØB
ØA
ØC
Application Notes:
1. Plastic cap for plug connectors for protection against dust and mechanical damage.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-16
IT 90376-XX (Y/R) and TP02-XX

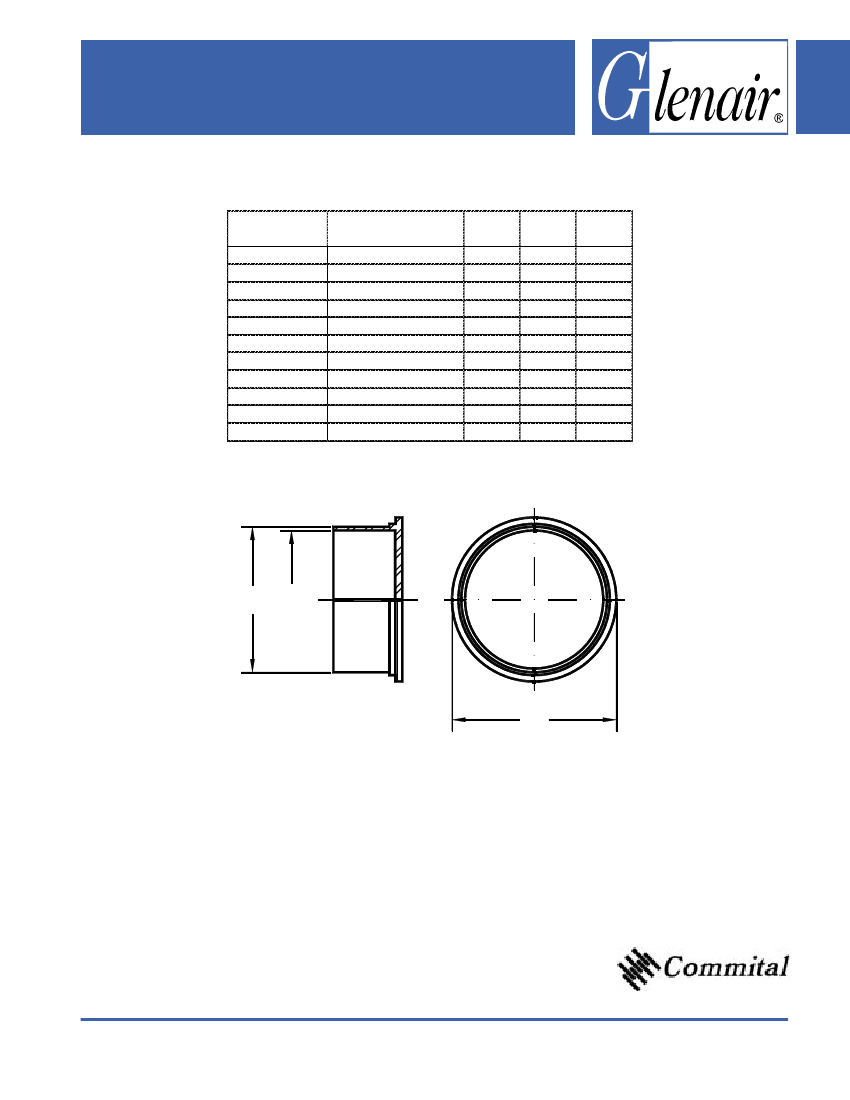

Receptacle Connector Protective Plastic Dust Cap
TABLE II: RECEPTACLE PLASTIC DUST CAP
PART NUMBERS, SHELL SIZE AND DIMENSIONS
ØA
ØB
ØC
P a rt N umbe r
She ll size
±0.25 ±0.25 ±0.78
Receptacle 10SL
18.00
20.60
25.00
T P02-10S L
Receptacle 14S
24.40
27.05
30.00
T P02-14S
27.63
31.75
IT 90376-18Y
Receptacle 16S - 16 26.11
Receptacle 18
30.40
33.15
37.00
T P 02-18
Receptacle 20
34.04
35.81
40.38
IT 90376-22R
Receptacle 22
37.16
38.94
43.18
IT 90376-24R
Receptacle 24
40.65
43.20
47.00
T P 02-24
Receptacle 28
46.45
49.05
52.00
T P 02-28
Receptacle 32
53.15
55.75
60.00
T P 02-32
Receptacle 36
59.35
61.95
66.00
T P 02-36
Receptacle 40
65.25
67.85
72.00
T P 02-40
ØB
ØA
ØC
Application Notes:
1. Plastic cap for receptacle connectors for protection against dust
and mechanical damage.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-17
