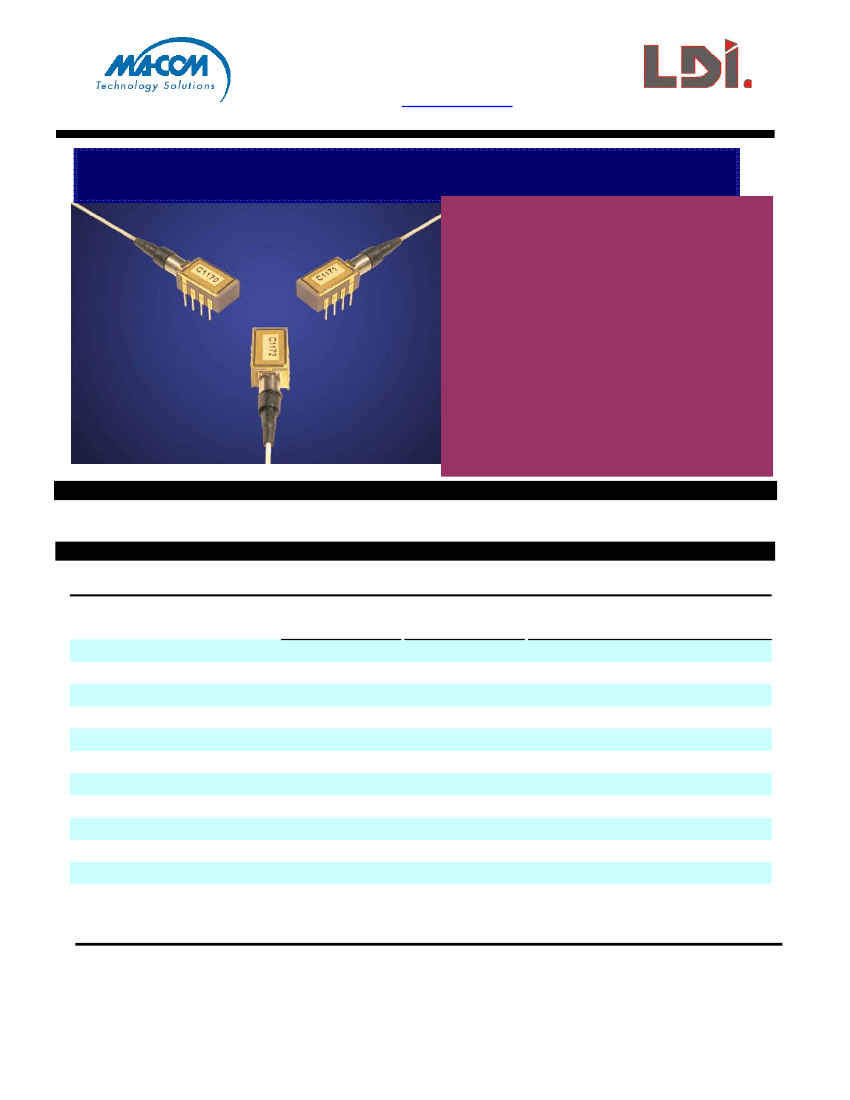

PINAMP Mini-DIL Optical Receivers
4Mb/s, 52Mb/s, 155Mb/s & 622Mb/s
High sensitivity/Wide dynamic
range
High responsivity and low dark
current InGaAs pin detector
Single Supply Capable
Hermetic Package
GR-468-CORE Telcordia Qualified
Applications Include: Supervisory channel, Long haul transmission networks, Short haul transmission networks,
DWDM transponders, SDH/SONET single mode applications, Instrumentation and testing, Data communications.
Specifications and Limits
Performance @ 25
o
C (+ / - 5.0 VDC)
PARAMETER
UNIT
min
Data Rate
Sensitivity @ 10 (BER)*
Overload @ -5 VDC
Transfer Gain @ 1310nm
Dark Current @ -5 VDC
Responsivity @ -5 VDC
@1310 nm
@1550 nm
Output Impedance
Supply Voltage
Supply Current
-9
4 Mb/s
typ
4
-50
-4
40K
0.5
-48
max
min
52Mb/s
typ
52
-43
0
25K
0.5
-41
max
min
155 Mb/s
typ
155
-39
0
12K
0.5
-37
max
min
622 Mb/s
typ
622
-33
0
4K
0.5
-31
max
Mb/s
dBm
dBm
V/W
nA
A/W
A/W
A/W
Ohms
V
mA
30
4.75
0.85
0.9
60
5.25
30
o
0.85
0.9
30
4.75
30
60
5.25
30
4.75
0.85
0.9
60
5.25
30
30
4.75
0.85
0.9
60
5.25
30
*Sensitivity is calculated using the noise voltage measured at 25 C at the output of a 3-pole Butterworth filter.
Sensitivity is specified as the average optical power in dBm measured at 1310nm and T
a
= 25
o
C for a BER of 10
-9
.
Fiber Specifications
Fiber Type
Index
Profile
N/A
Nominal Size
(um)
50/125/245/900
Cladding
Tolerance
(um)
125 +/-2.0
900 um Buffer
Material
Fiber Yield
Strength
(N)
10
Fiber Bend
Radius min.
(mm)
30
Multimode tight buffer
Graded
0.2
Hytrel
Other fiber types are available. Please contact the Laser Diode Sales Department or your local LDI representative.
LDI Document #10-4400-0003 Rev. C 1/12/09

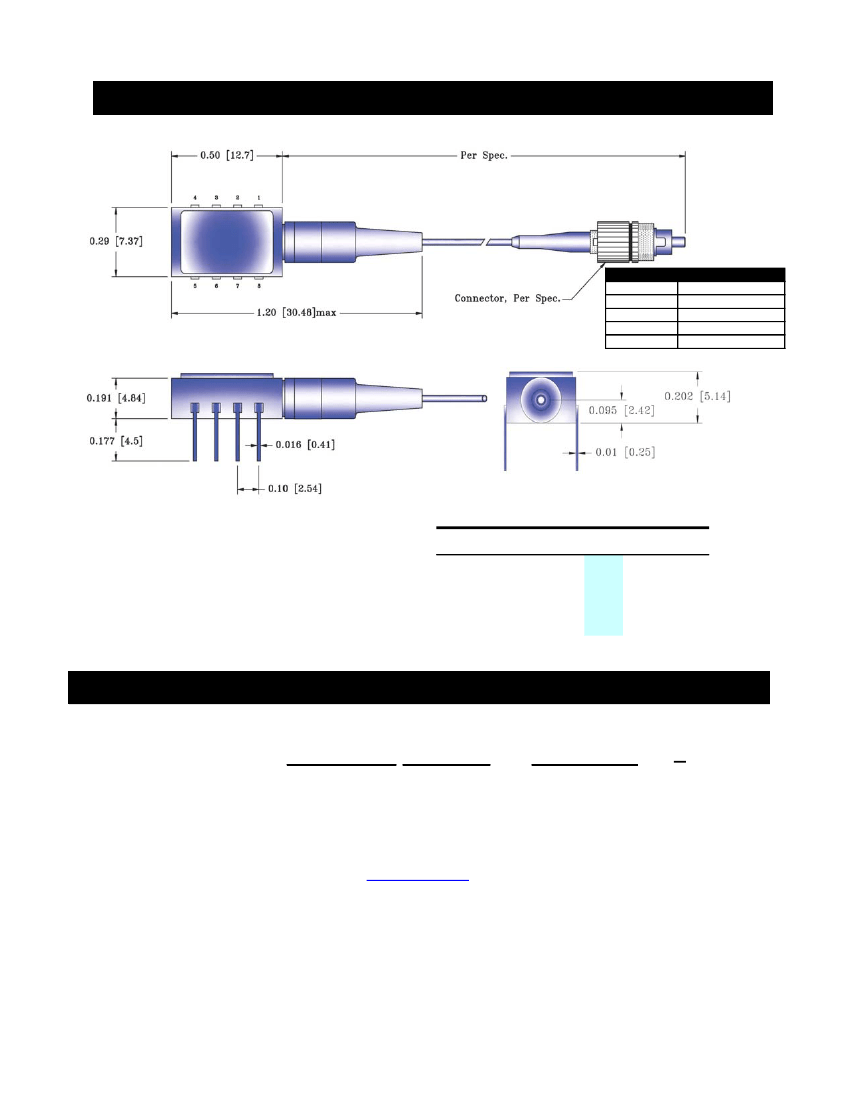

Outline Drawing
Outline
PIN ASSIGNMENT
Pin No.
Description
1
-5 Volt Det Bias*
2, 3, 5, 6, 8
Gnd
4
Output
7
+5 Volts
*0V Det Bias Capable
Dimensions: inches [mm]
Detailed package drawing is available upon request
Absolute Maximum Ratings
Units
Operating Temperature
Storage Temperature
Positive Supply Voltage
Detector Bias
Soldering time at 260°C
LPAD Series
°C
°C
V
V
secs
-40 to +85
-40 to +85
+5.5
-10
10
Part Numbering Diagram
Mini-DIL Pinamps
4Mb/s, 52Mb/s, 155Mb/s, 622Mb/s
LPAD
Package Type
EXAMPLE: LPAD 0622-FC
0XXX
Data Rate
-
XX
Connector Type
R
RoHS Designator
Mini-DIL Pinamp at 622 Mb/s with FC connector
Products can be ordered directly from Laser Diode Inc. or its representatives.
For a complete listing of representatives, visit our website at
www.laserdiode.com
Personal Hazard and Handling Precautions:
Handle optical fiber with normal care, avoiding
stretch, tension, twist, kink or bend abuse.
ESD
precautions apply.
When ordering, refer to the numbering diagram above.
Warranty:
Please refer to your product purchase
agreement for complete details or check
with your Laser Diode sales representative.
Notice:
Laser Diode Inc. reserves the right
to make changes to the products or
information contained herein without
notice. No liability is assumed as a
result of their use or application.
LDI Document #10-4400-0003 Rev. C 1/12/09
