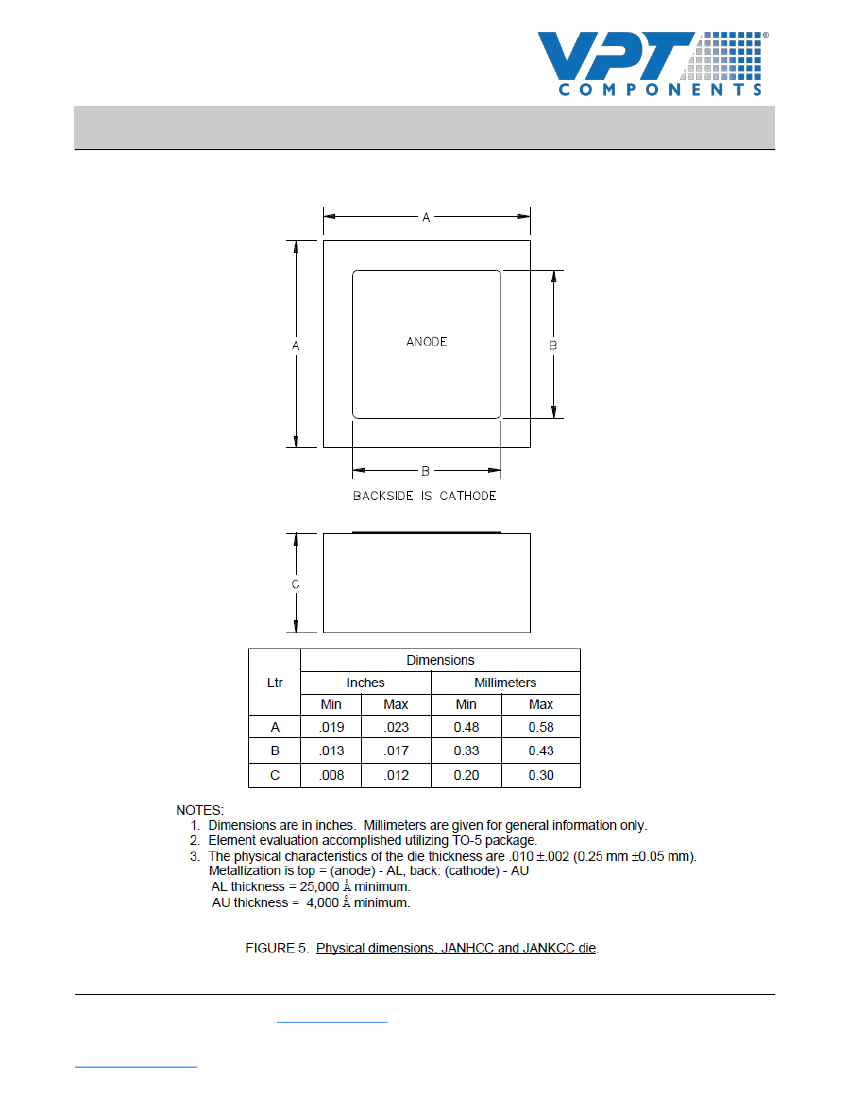

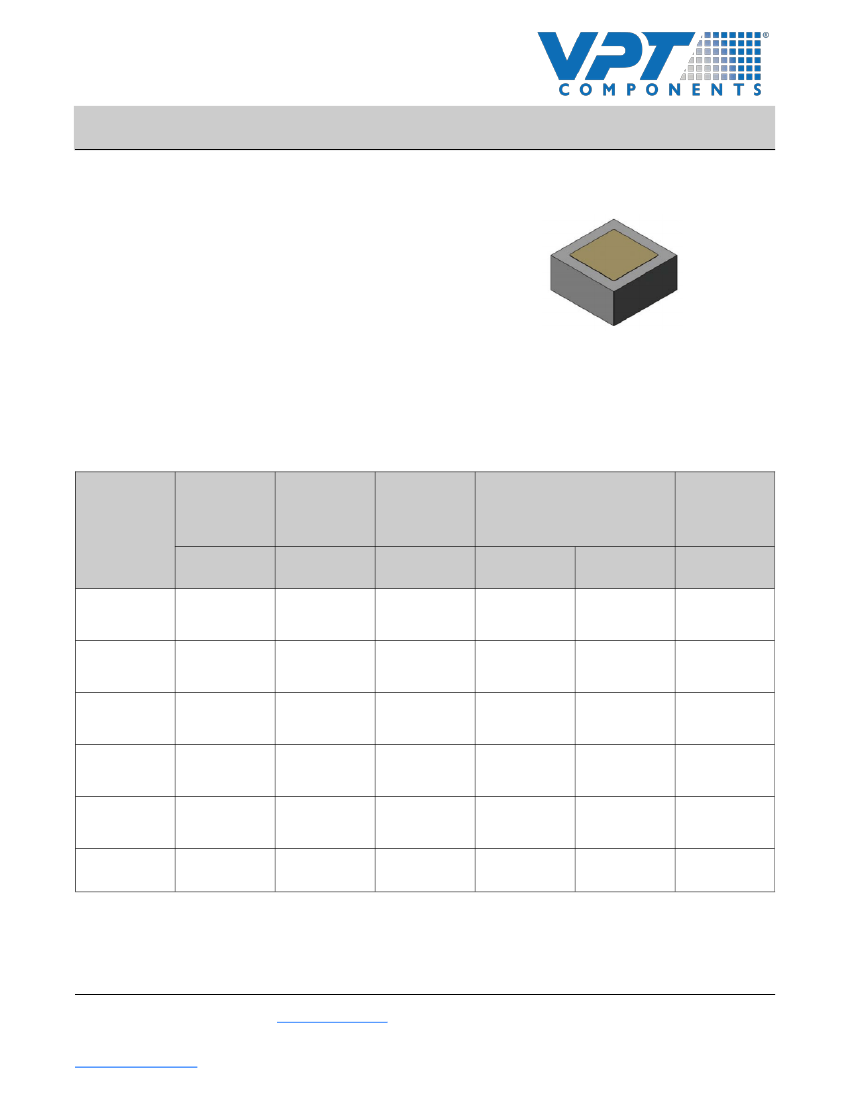

JANHCC & JANKCC1N746A thru 1N759A
JANHCC & JANKCC1N4370A thru 1N4372A
Zener Diode Chip Series
Rev. V1
Features
•
Qualified to MIL-PRF-19500/127
•
0.5 W Capability with Proper Heat Sinking
•
Electrically Equivalent to 1N4370A
-
1N4372A,
1N746A
-
1N759A
Description
These 0.5 W zener chips are electrically equivalent
to industry standard 1N4370A
-
1N4372A, 1N746A
-
1N759A series diodes. They are compatible with all
wire bonding and die attach techniques with the
exception of solder reflow.
These diodes are also available in commercial
versions using prefix CD.
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
Nominal
Zener
Voltage
V
Z
@ I
ZT1
V
4370A
4371A
4372A
746A
747A
748A
749A
750A
751A
752A
753A
754A
755A
756A
757A
758A
759A
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
12.0
Zener
Test
Current
I
ZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Maximum
Zener
Impedance
2
Z
ZT
@ I
ZT
Ω
30
30
29
28
24
23
22
19
17
11
7
5
6
8
10
17
30
µA
100
60
30
5
3
2
2
5
5
5
5
2
2
1
1
1
1
Maximum
Reverse
Voltage
I
R
@ V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.0
2.5
3.5
4.0
5.0
6.0
7.0
8.0
9.0
Maximum
Zener
Current
I
ZM
mA
155
140
125
120
110
100
90
85
75
70
85
60
55
50
45
40
35
Part #
1. Zener voltage range equals nominal voltage ±5% for “A” suffix. No suffix denotes ±10%, “C” suffix = ±2% and “D” suffix = ±1%.
2. Zener impedance is derived by superimposing on I
ZT
at 60 HZ RMS AC current equal to 10% of I
ZT
.
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
JANHCC & JANKCC1N746A thru 1N759A
JANHCC & JANKCC1N4370A thru 1N4372A
Zener Diode Chip Series
Rev. V1
Absolute Maximum Ratings
3,4
Forward Voltage
Operating Temperature
Storage Temperature
1.5 V @ 200 mA
-65°C
to +175°C
-65°C
to +175°C

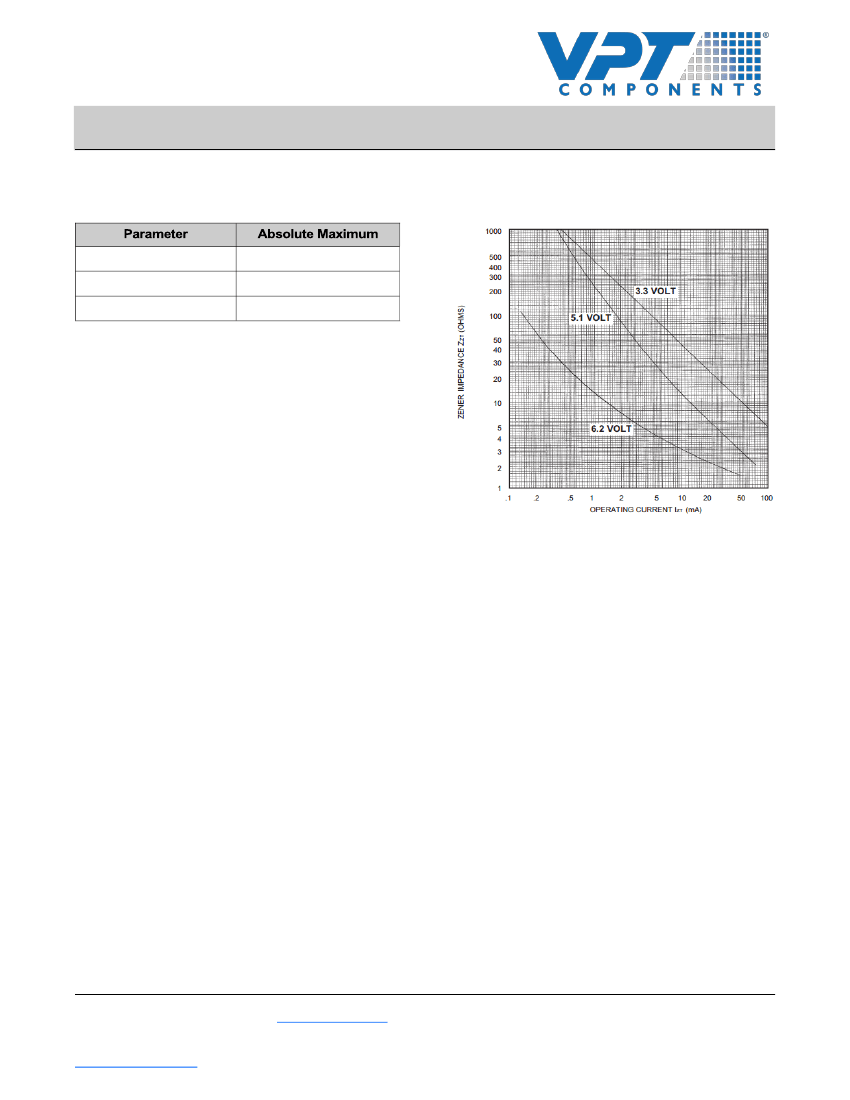

Zener Impedance vs. Operating Current
