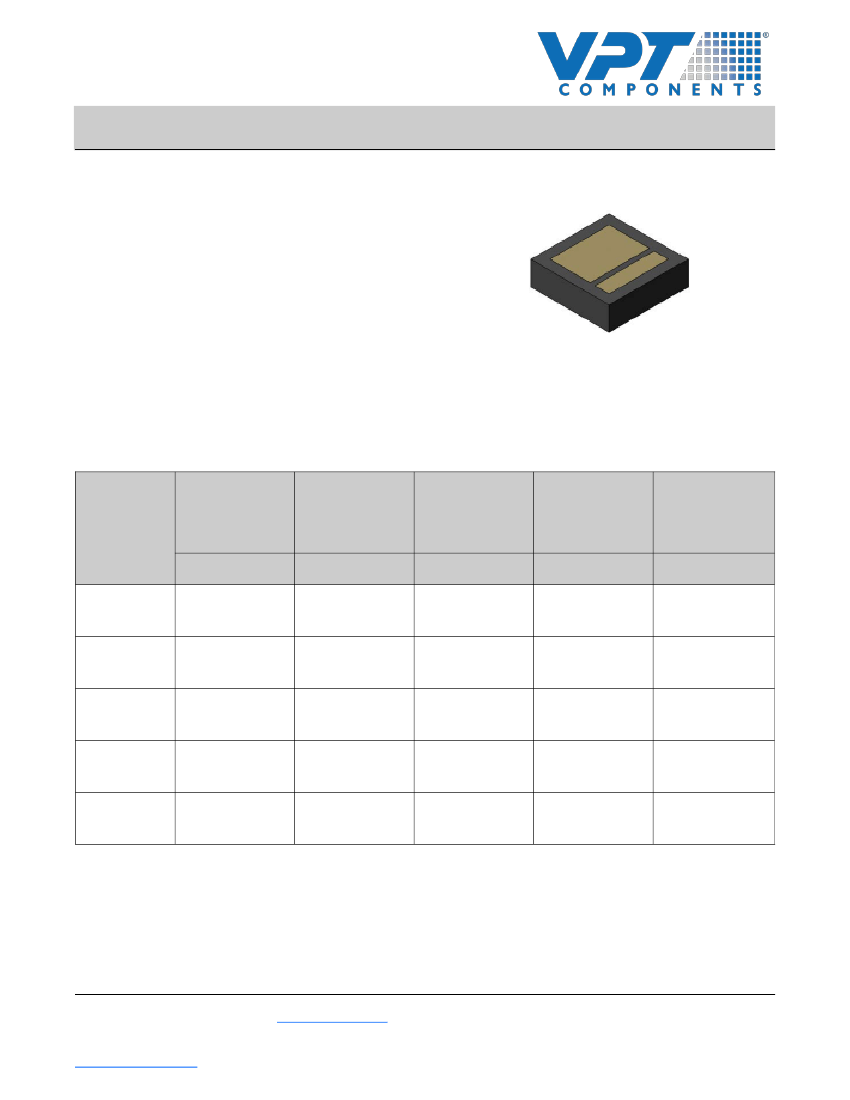

JANHCD1N821 - JANHCD1N829
JANKCD1N821 - JANKCD1N829
TC Zener Diode Chip Series
Features
•
Monolithic Temperature Compensated Zener
Reference Chips
•
Qualified to MIL-PRF-19500/159
•
Electrically Equivalent to 1N821
-
1N829
Rev. V1

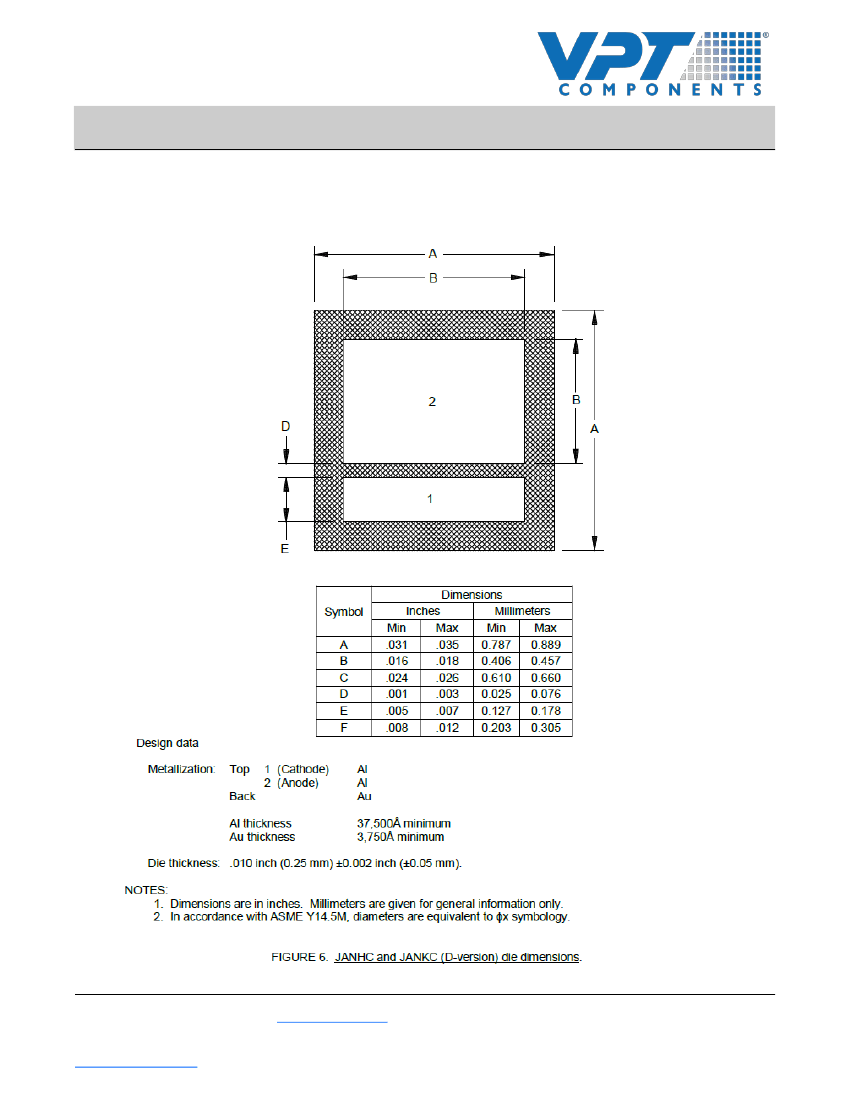

Die
Description
These 0.5 W zener diodes are electrically equivalent
to the 1N821
-
1N829 series diodes. All junctions are
completely protected with silicon dioxide. They are
compatible with all wire bonding and die attach
techniques with the exception of solder reflow.
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
Nominal
Zener
Voltage
V
ZT
@ I
ZT1
V
1N821
5.89
-
6.51
Zener
Test
Current
I
ZT
mA
7.5
Maximum
Zener
Impedance
1
Z
ZT
@ I
ZT
Ω
15
-55°C
to +100° C
Voltage
Temperature
Stability
2
3V
ZT
@ I
ZT
mV
96
Effective
Temperature
Coefficient
% / °C
0.01
Part #
1N823
5.89
-
6.51
7.5
15
48
19
0.005
1N825
5.89
-
6.51
5.89
-
6.51
7.5
15
0.002
1N827
7.5
15
9
0.001
1N829
5.89
-
6.51
7.5
15
5
0.0005
1. Zener impedance is derived by superimposing on I
ZT
at 60 HZ RMS AC current equal to 10% of I
ZT
.
2. The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specialized mV at
any discrete temperature between the established limits, per JEDEC standard No.5.
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
JANHCD1N821 - JANHCD1N829
JANKCD1N821 - JANKCD1N829
TC Zener Diode Chip Series
Absolute Maximum Ratings
5,6
Reverse Leakage Current
Operating Temperature
Storage Temperature
I
R
= 2 µA, V
R
= 3 Vdc
-55°C
to +175°C
-55°C
to +175°C
Rev. V1

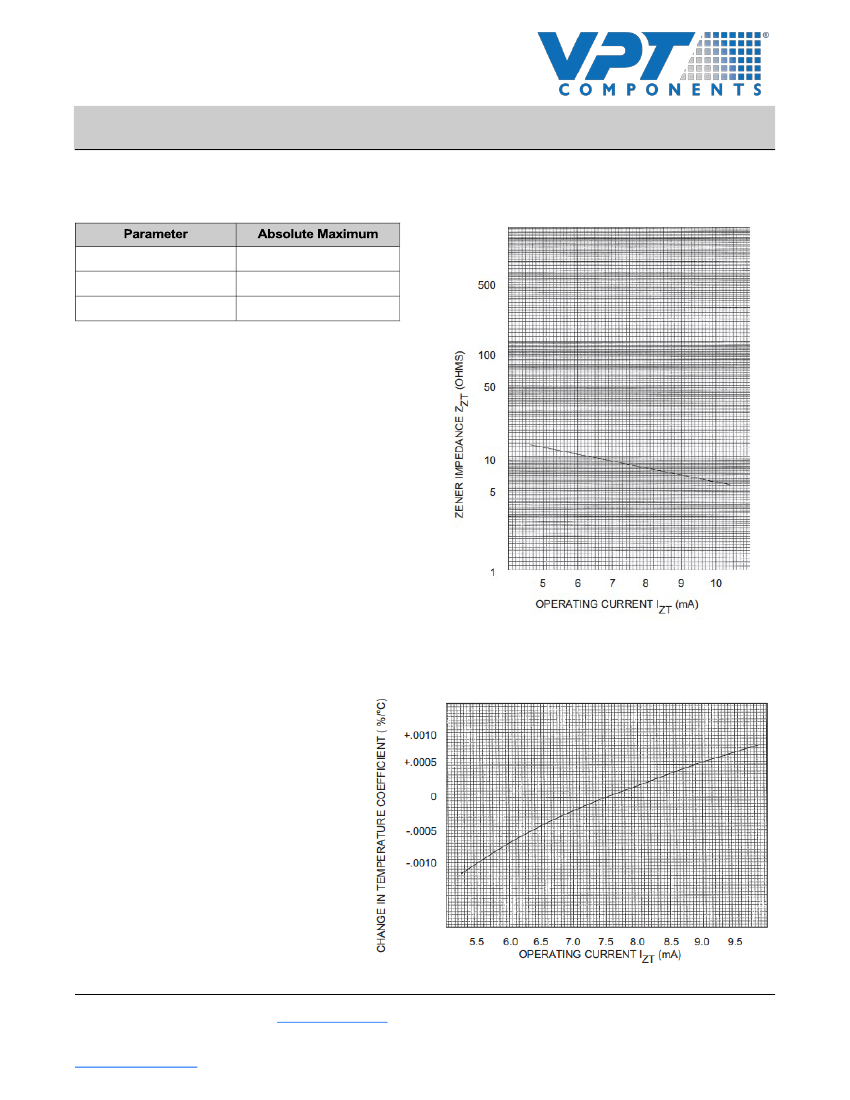

Zener Impedance vs. Operating Current
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6.
VPT Components does not recommend sustained operation
near these survivability limits.
Change in Temperature Coefficient vs. Operating Current
