Preview

174436: DescriptionD Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .125-.137, Plug, LEAD FREE; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

174436 Overview

D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .125-.137, Plug, LEAD FREE

174436 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.524 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug contact pitch	0.108 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .125-.137
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.114 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

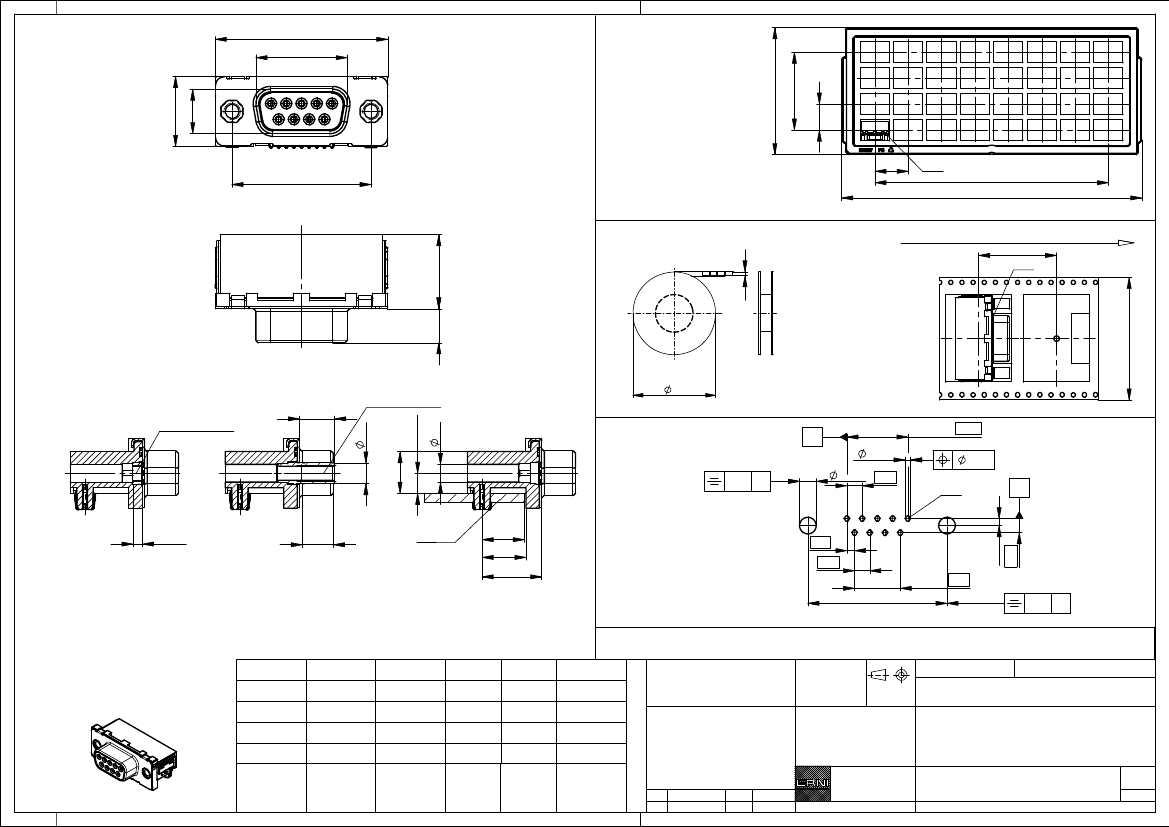

31

-0,4

+0,2

16,4

-0,2

12,6

±0,3

8

-0,2

28

tray packaging

packaging unit 32 pcs

3 x 28 = 84

138

max.

Verpackt in Tray

Verpackungseinheit 32 Stück

36

25

±0,2

Pin 1

7 x 36 = 252

325

max.

Sonstige Angaben siehe Zeichnung 204630 /

additional indications according to drawing 204630

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 125 Stück -

Packaging unit: 125 pcs

13,3

Abspulrichtung -

Reel off Direction

28

Pin 1

6,3

-0,25

14

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,6

±0,1

3,2

ohne / without

330

Sonstige Angaben siehe Zeichnung 204656 /

additional indications according to drawing 204656

Layoutvorschlag

recommended layout

0,05

B

A

+0,04

-0,06

4 x 2,74 = 10,96

1

-0,06

3

+0,09

0,05

Pin 1

B

7,5

2,74

1,65

Gewindetiefe /

depth of thread

6

Gewindetiefe /

depth of thread

LP /

PCB

7,6

7,9

10,7

1,27

2,74

3 x 2,74 = 8,22

25

±0,05

Anschlussbereich verzinnt

2,54

1,37

terminal area tin plating

Anforderungsstufe: 2

0,05

A

Sonstige Angaben siehe Zeichnung 164062 /

additional indications according to drawing 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

class: 2

174436

154174

154173

154172

154171

Ident-Nr.

Ø

3,2

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

part-no.

Gurt

Ident-Nr.

part-no.

Tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

f

Index

07.12.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-09-EE-Euro-BA8

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

remark

www.ERNI.com

Class

144879

TMCS

44

I

A3

174436 Related Products

	174436	154171
Description	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .125-.137, Plug, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, Plug, LEAD FREE
Is it Rohs certified?	conform to	conform to
Maker	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH
package instruction	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch	0.496 inch
subject depth	0.524 inch	0.524 inch
body length	1.213 inch	1.213 inch
Body/casing type	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES	YES
Plug contact pitch	0.108 inch	0.108 inch
Match contact row spacing	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation option 1	HOLE .125-.137	M3
Installation option 2	THREADED	THREADED
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm
Rated current (signal)	5 A	5 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	1/E	1/E
Terminal length	0.114 inch	0.114 inch
Terminal pitch	2.7432 mm	2.7432 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	9	9
UL Flammability Code	94V-0	94V-0
