SM57201317UD6UP
May 24, 2000
8MByte (1M x 72) Synchronous DRAM Module - 1Mx16 based
168-pin DIMM, Unbuffered, ECC
Features
Standard
Configuration
Cycle Time
CAS# Latency
Burst Length
Burst Type
No. of Internal
Banks per SDRAM
• Operating Voltage
• Refresh
• Device Physicals
•
•
•
•
•
•
•
:
:
:
:
:
:
:
:
:
:
PC-100 (Rev 0.9)
ECC
10ns
2 & 3 /3
1, 2, 4, 8 or Page
Linear/Interleave
2
3.3V
2K/4K
400mil TSOP
•
•
•
•
Lead Finish
:
Gold
Length x Height
:
133.35mm x 34.93mm
No. of sides
:
Double-sided
Mating Connector (Examples)
Vertical
:
AMP-382830-6

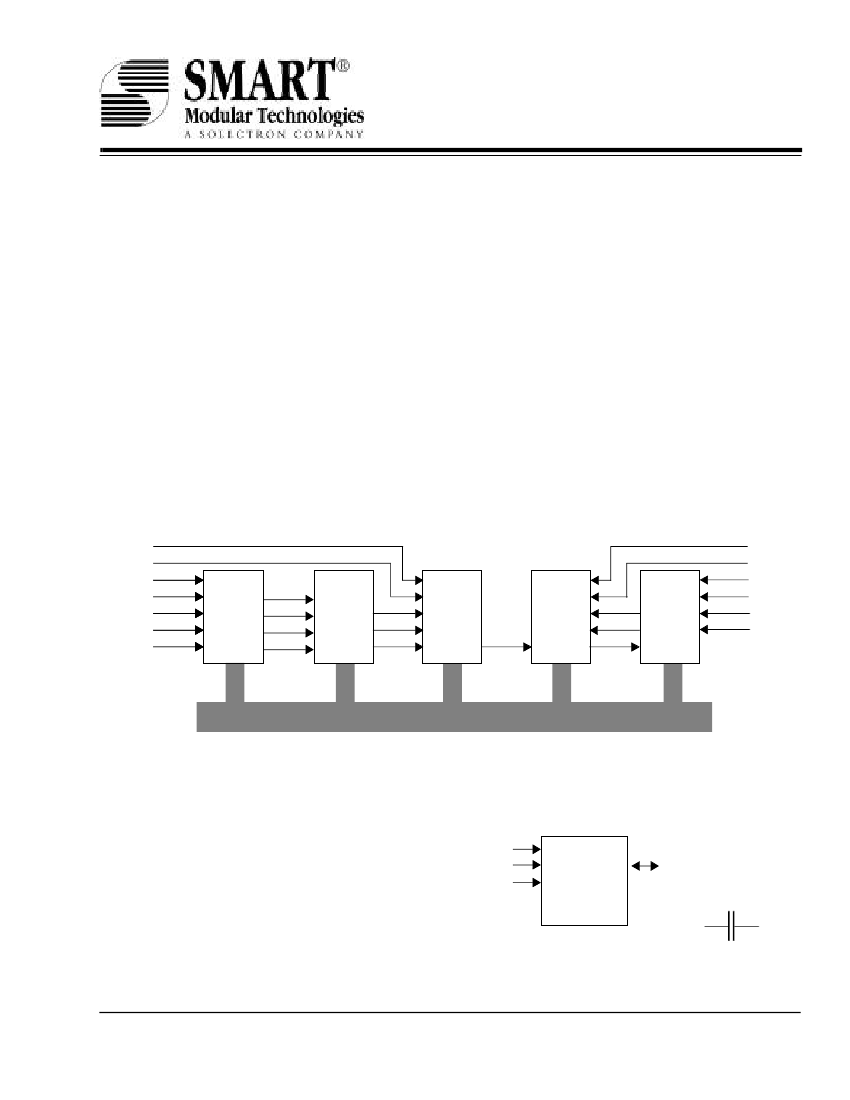

Functional Diagram
DQMB4
DQMB5
DQMB0
DQMB1
CS0#
CLK0
CKE0
1Mx16
SDRAM
1Mx16
SDRAM
1Mx16
SDRAM
1Mx16
SDRAM
1Mx16
SDRAM
DQMB2
DQMB3
DQMB6
DQMB7
CS2#
CLK2
DQ0~DQ15
CB0~CB7
DQ32~DQ47
DQ16~DQ31
DQ48~DQ63
DQ0~DQ63, CB0~CB7
Notes
1.
2.
3.
4.
5.
6.
7.
:
A0~A10 and BA0 to all SDRAMs.
RAS#, CAS# and WE# to all devices.
Data is terminated with 10Ω series resistors.
CKE1 has a 10KΩ pull-up to VCC.
CLK signals are terminated with series resistors and/or
padding capacitors depending on load per clock.
WP signal has a pull-down resistor of 47KΩ.
Refer to note on page 3 for details on DQM control scheme.
SA0~SA2
SCL
WP
A0~A2
SCL
SDA
WP
SERIAL PD
EEPROM
SDA
V
CC
V
SS
Decoupling capacitors
to all devices.
( All specifications of this device are subject to change without notice.)
C
orporate Headquarters:
P. O. Box 1757, Fremont, CA 94538, USA • Tel:(510) 623-1231 • Fax:(510) 623-1434 • E-mail: info@smartm.com
Europe:
36 Linford Forum, Rockingham Dr., Linford Wood, Milton Keynes, MK14 6LY, UK • Tel: +44-1908 234030 • Fax: +44-1908-234191
Asia/Pacific:
Plot 18, Lrg Jelawat 4, Kawasan Perindustrian Seberang Jaya 13700, Prai, Penang, Malaysia • Tel: +604-3992909 • Fax: +604-3992903
2
SM57201317UD6UP
May 24, 2000
Pin Name
A0~A10
A0~A7
BA0
DQ0~DQ63, CB0~CB7
CLK0~CLK3
RAS#
CAS#
CKE0
DQMB0~DQMB7
Row Addresses
Column Addresses
Bank Select Address
Data Inputs/Outputs
Clock Inputs
Row Address Strobe
Column Address Strobe
Clock Enable
DQ Mask Enables
CS0#, CS2#
WE#
SA0~SA2
SDA
SCL
WP
V
CC
V
SS
NC
Chip Selects
Write Enable
Decode Inpurs
Serial Data Input/Output
Serial Clock
Serial EEPROM Write Protect
Power Supply
Ground
No Connection
Note:
DQMs v/s Data I/Os
DQMB0 controls DQ0~DQ7
DQMB1 controls DQ8~DQ15
CB0~CB7
DQMB2 controls DQ16~DQ23
DQMB3 controls DQ24~DQ31
DQMB4 controls DQ32~DQ39
DQMB5 controls DQ40~DQ47
DQMB6 controls DQ48~DQ55
DQMB7 controls DQ56~DQ63
Pin Pin
