5 mm Tunable Inductor –164, 165 Series
• These tunables offer the compactness of a 5 mm coil and the
low drift reliability of an insert molded coil.
• Inductance values from 9 to over 280 nH
• Optional plated brass cans provide integral shielding.
• Can be ordered without cores for use as fixed inductors.
Designer’s Kit M305
contains 2 each of all parts
Core material
Aluminum, 0.187″ (4.75 mm) long.
Terminations
Leads: RoHS compliant tin-silver over copper. Other
terminations available at additional cost. Shield can tabs: Tin-silver
over nickel over brass
Weight
164 series unshielded: 0.16 – 0.31 g; with shield can: 0.45 – 0.60 g
165 series unshielded: 0.15 – 0.25 g; with shield can: 0.43 – 0.54 g
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C.
Packaging tubes: –40°C to +80°C
Resistance to soldering heat:
Wave solder only. Recommended
maximum board surface temperature of 168°C (334°F) for no more
than three seconds. Pre-heating is recommended to minimize time
over the solder nozzle.
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
Two per billion hours / 1/2 billion hours, calculated per Telcordia SR-332
Packaging
50 parts per tube
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.

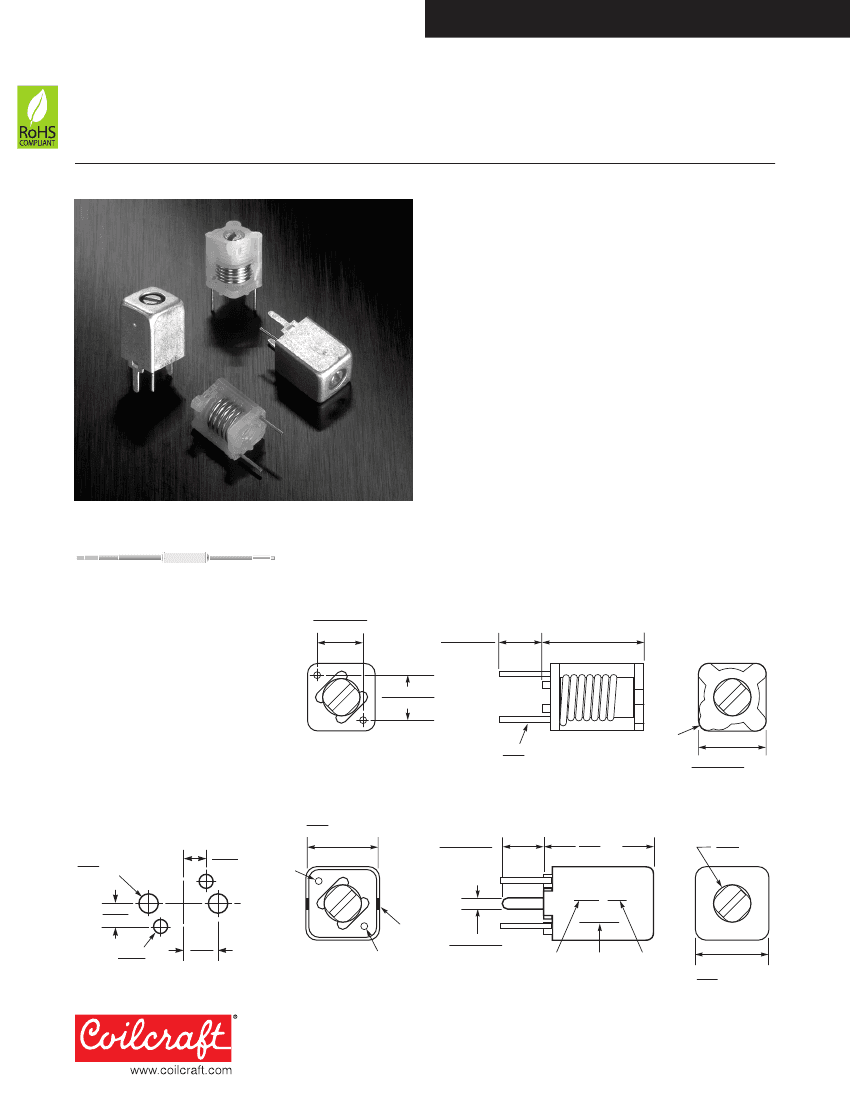

0.139 ±0.005
3,53 ±0,13
TRITUNER
3 TOOLS IN 1
SEE INDEX
TUNING WRENCH
Unshielded Styles
0.130 ±0.040
3,30 ±1,02
0.310 ±0.020
7,87 ±0,51
0.139 ±0.005
3,53 ±0,13
0.018
dia
0,46
Start
0.205 ±0.005
square
5,21 ±0,13
Shielded Styles
Recommended
Board Layout
0.051 (for shield
1,30 can tabs)
0.0695
1,765
Finish
C
L
Part
marking
this side
Start
0.031 ±0.010
0,79 ±0,25
0.212
Tab centers
5,38
0.120 ±0.010
3,05 ±0,25
Tab length
0.340
max
8,64
0.120
dia hole
3,05
0.0695
1,765
0.038
0,965
0.106
2,69
165-XX
XXXX
Series
number
Internal
code
Dash
number
C
L
0.230
square max
5,84
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 110-1
Revised 08/31/09
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 110-2
5 mm Tunable Inductor — Unshielded
Part
number
1
164-01A06L
164-02A06L
164-03A06L
164-04A06L
164-05A06L
164-06A06L
164-07A06L
164-08A06L
164-09A06L
164-10A06L
164-11A06L
165-00A06L
165-01A06L
165-02A06L
165-03A06L
165-04A06L
165-05A06L
165-06A06L
165-07A06L
Color
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Turns
1
1
/
2
2
1
/
2
3
1
/
2
4
1
/
2
5
1
/
2
6
1
/
2
7
1
/
2
8
1
/
2
9
1
/
2
10
1
/
2
11
1
/
2
1
/
2
No core
at L max
3
at L min
4
L (nH)
2
Q min
5
L (nH)
2
Q min
5
L (nH)
2
Q min
5
19
34
55
77
101
128
156
183
216
248
281
9
18
32
48
64
83
103
122
145
138
130
119
108
107
106
100
100
92
92
147
145
143
138
133
125
120
115
19
34
55
77
99
126
150
178
190
223
246
9
18
32
45
60
78
90
105
145
138
130
119
86
75
68
62
62
55
55
147
145
143
135
114
110
94
92
16
26
38
52
65
83
97
112
131
148
170
9
15
25
33
43
54
68
79
112
96
79
72
64
60
57
53
53
51
51
131
112
92
84
76
73
70
69
Freq
(MHz)
150
150
150
150
150
100
100
100
100
100
100
150
150
150
150
150
150
150
150
No core SRF
min (MHz)
2000
1260
960
850
770
730
640
570
540
490
360
6000
2850
1860
1410
1130
820
800
770
Irms
6
(A)
7.2
5.1
4.4
3.7
3.6
3.3
3.1
2.9
2.7
2.5
2.3
8.1
6.5
4.9
4.2
3.8
3.6
3.4
3.1
1
1
/
2
2
1
/
2
3
1
/
2
4
1
/
2
5
1
/
2
6
1
/
2
7
1
/
2
Notes:
1. To order fixed inductance parts without
cores, eliminate the “A06”, e.g. 164-01.
2. Inductance measured on Agilent/HP 4286A
Impedance Analyzer with 16092A Spring
Clip Fixture.
3. L max measured with core halfway out top of
form.
4. L min measured with core centered in
winding.
5. Q measured on Agilent/HP 4286A with
16092A fixture, direct connect to Agilent/
HP 4342A Q-Meter and Meguro MQ-171
Q-Meter with 0.5″ bus bars.
6. Current that causes a 15°C rise above 25°C
ambient.
7. Electrical specifications 25°C.

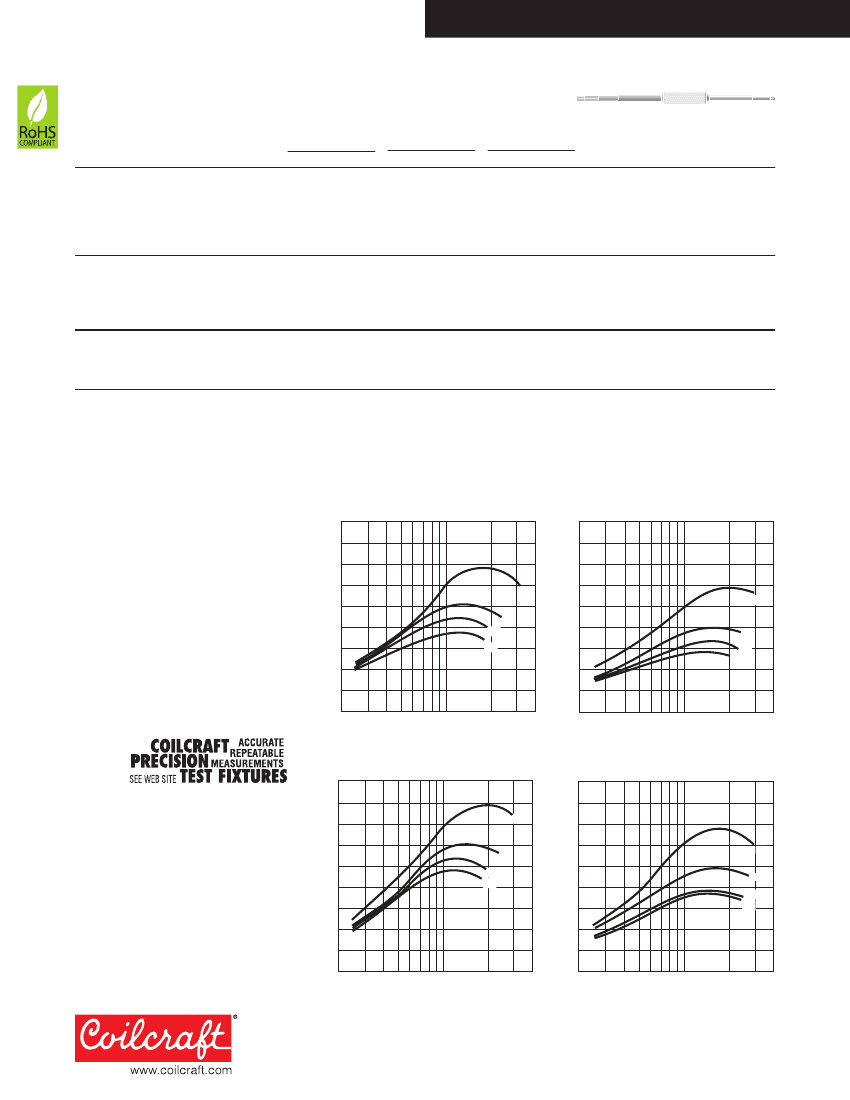

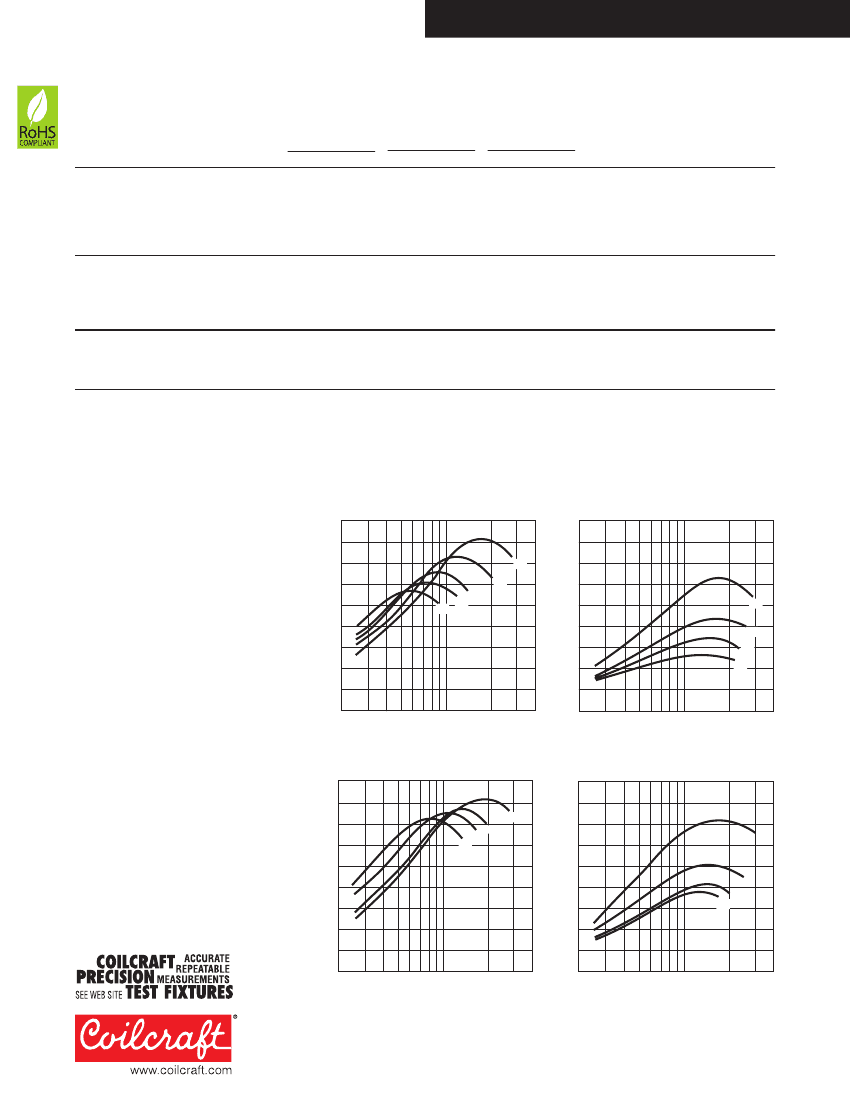

Typical Q vs Frequency
164 Series No Core
180
160
140
120
05
11
07
03
01
180
160
140
120
164 Series Al Core
Q factor
Q factor
100
80
60
40
20
10
100
80
60
40
20
10
01
03
05
11
20
40
60
80 100
200
400
20
40
60
80 100
200
400
Frequency (MHz)
Frequency (MHz)
165 Series No Core
180
160
140
120
07
04
00
02
180
160
140
120
165 Series Al Core
00
Q factor
100
80
60
40
20
10
Q factor
100
80
60
40
20
10
07
02
04
20
40
60
80 100
200
400
20
40
60
80 100
200
400
Frequency (MHz)
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 110-2
Revised 08/31/09
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 110-3
5 mm Tunable Inductor — Shielded
Part
number
1
164-01A06SL
164-02A06SL
164-03A06SL
164-04A06SL
164-05A06SL
164-06A06SL
164-07A06SL
164-08A06SL
164-09A06SL
164-10A06SL
164-11A06SL
165-00A06SL
165-01A06SL
165-02A06SL
165-03A06SL
165-04A06SL
165-05A06SL
165-06A06SL
165-07A06SL
TRITUNER
3 TOOLS IN 1
SEE INDEX
TUNING WRENCH
Freq
(MHz)
150
150
150
150
150
150
100
100
100
100
100
150
150
150
150
150
150
150
150
Color
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Turns
1
1
/
2
2
1
/
2
3
1
/
2
4
1
/
2
5
1
/
2
6
1
/
2
7
1
/
2
8
1
/
2
9
1
/
2
10
1
/
2
11
1
/
2
1
/
2
No core
at L max
3
at L min
4
L (nH)
2
Q min
5
L (nH)
2
Q min
5
L (nH)
2
Q min
5
16
27
41
56
71
88
105
122
141
160
179
9
16
25
35
46
57
68
80
124
108
92
86
80
79
75
74
71
69
69
138
124
110
104
97
92
86
85
16
27
41
56
71
80
101
117
134
150
164
9
16
25
33
41
50
59
70
124
108
92
84
79
77
70
64
62
60
60
138
124
110
102
90
82
75
74
14
22
32
43
53
65
76
87
100
113
127
9
14
21
28
35
43
52
60
106
89
72
66
60
59
54
54
53
51
51
121
104
87
78
69
67
65
64
No core SRF
min (MHz)
2100
1300
1100
940
980
800
750
580
550
490
400
6000
2570
1670
1230
1150
820
800
770
Irms
6
(A)
7.2
5.1
4.4
3.7
3.6
3.3
3.1
2.9
2.7
2.5
2.3
8.1
6.5
4.9
4.2
3.8
3.6
3.4
3.1
1
1
/
2
2
1
/
2
3
1
/
2
4
1
/
2
5
1
/
2
6
1
/
2
7
1
/
2
Notes:
1. To order fixed inductance parts without
cores, eliminate the “A06”, e.g. 164-01S.
2. Inductance measured on Agilent/HP 4286A
Impedance Analyzer with 16092A Spring
Clip Fixture.
3. L max measured with core halfway out top of
form.
4. L min measured with core centered in
winding.
5. Q measured on Agilent/HP 4286A with
16092A fixture, direct connect to Agilent/
HP 4342A Q-Meter and Meguro MQ-171
Q-Meter with 0.5″ bus bars.
6. Current that causes a 15°C rise above 25°C
ambient.
7. Electrical specifications 25°C.
Typical Q vs Frequency
164 Series No Core
180
160
140
120
01
03
05
11
180
160
140
120
164 Series Al Core
Q factor
100
80
60
40
20
10
Q factor
100
80
60
40
20
10
03
05
11
01
20
40
60
80 100
200
400
20
40
60
80 100
200
400
Frequency (MHz)
Frequency (MHz)
165 Series No Core
180
160
140
120
00
180
160
140
120
165 Series Al Core
Q factor
100
80
60
40
20
10
Q factor
02
04
07
00
02
100
80
60
40
20
10
04
07
20
40
60
80 100
200
400
20
40
60
80 100
200
400
Frequency (MHz)
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 110-3
Revised 08/31/09
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
