DEI1026-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DEI1026-G

DEI1026-G: DescriptionLine Driver, 6 Func, 6 Driver, BICMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, MS-012-AC, SOIC-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size382KB，8 Pages; ManufacturerDevice Engineering Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

DEI1026-G Overview

Line Driver, 6 Func, 6 Driver, BICMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, MS-012-AC, SOIC-16

DEI1026-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Device Engineering Incorporated
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	NO
Number of drives	6
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	9.8933 mm
Humidity sensitivity level	1
Number of functions	6
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum receive delay
Maximum seat height	1.7526 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	OTHER
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
maximum transmission delay	150 ns
width	3.9116 mm

Preview

Download Datasheet

View All

Device

Engineering

Incorporated

385 East Alamo Drive

Chandler, AZ 85225

Phone: (480) 303-0822

Fax: (480) 303-0824

E-mail: admin@deiaz.com

DEI1026

Six Channel

Discrete-to-Digital Interface

Sensing Open/Ground Signals

Features:

•

Senses six Open/Ground Inputs

Inputs are lightning protected to DO-160D Level 3

TTL/CMOS-Compatible Tri-State Outputs

Package / Temperature Options:

•

16 lead .150” SOIC, -55

°C

/+85

°C

•

16 lead Ceramic 300mil SOP, -55

°C

/+125

°C

SOIC package option shown

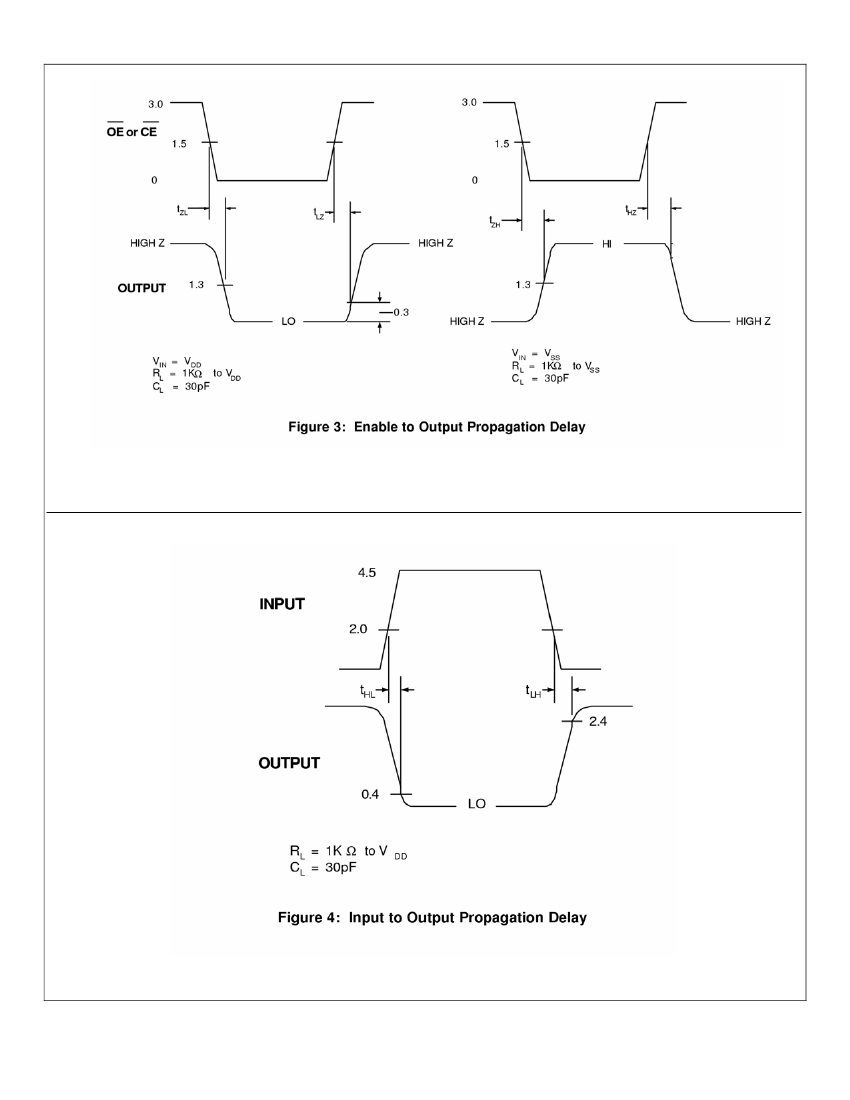

Functional Description:

The DEI1026 is a six channel discrete-to-digital interface BiCMOS device. It senses six Open/Ground discrete signals of

the type commonly found in avionic systems. The inverted 3-state outputs are TTL/CMOS compatible and are enabled by

the OE and CE pins. The inputs are lightning protected to meet the requirements of DO160D Sec 22 Waveforms 3, 4, and

5, Level 3. See figures 5-7. The device is available in a 16 lead .150 SOIC and .300 Ceramic SOP.

With its reliability, low cost, operating range, and lightning protection, the DEI1026 meets a large variety of interface

requirements for aerospace applications.

IN 1

12K

IN 1

GND

OUT 1

OUT 2

OUT 3

OUT 4

OUT 5

OUT 6

OUT 1

IN 2

12K

OUT 2

IN 3

12K

IN 3

OUT 3

IN 4

12K

IN 4

OUT 4

IN 5

12K

IN 5

OUT 5

IN 6

12K

IN 6

OUT 6

Vdd

3.1V Reference

GND

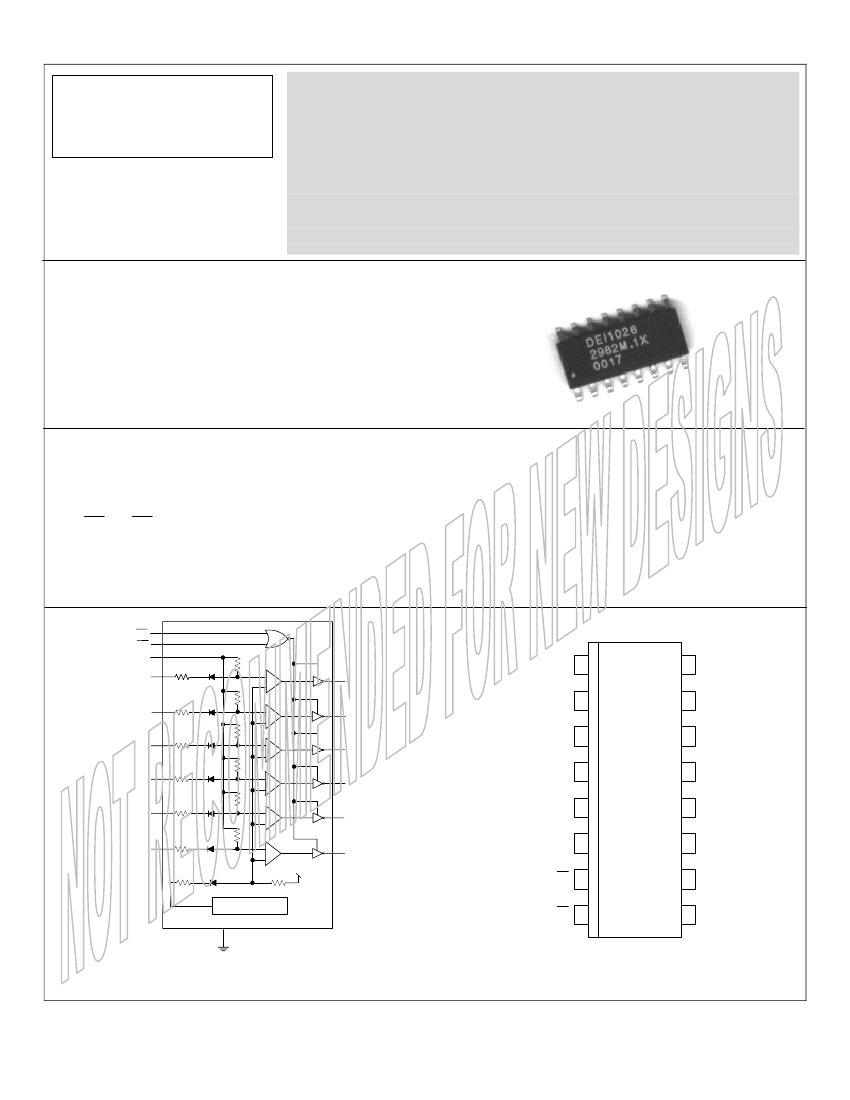

Figure 1: Function Diagram

Figure 2: Pinout Diagram

DS-MW-01026-01 Rev.B

NOT RECOMMENDED FOR NEW DESIGN – Use DEI1026A

08/13/07

Page 1 of 8
