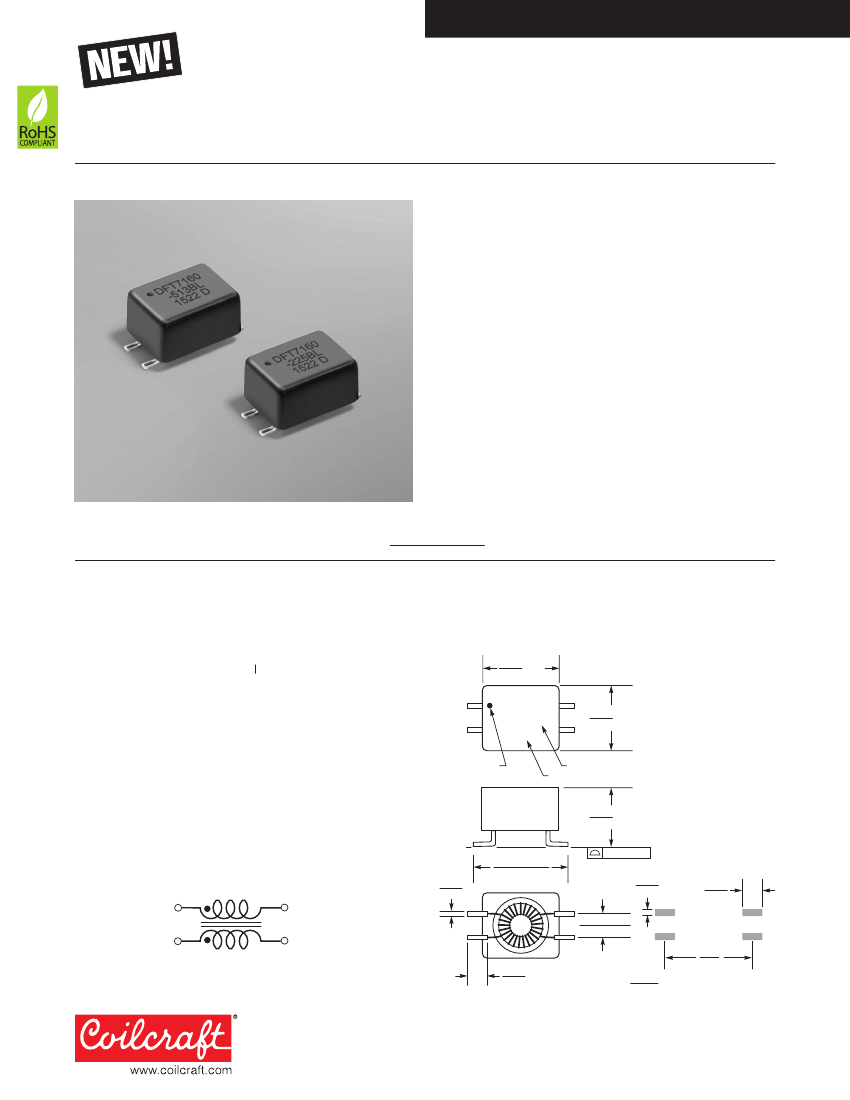

Document 1273-1

SMT Data Line EMI Filters

DFT7160

•

Current-compensated ring core double choke

Miniature footprint; less than 5 mm tall

Exceptional common mode noise attenuation.

250 Vrms, one minute isolation (hipot) between windings

Core material

Ferrite

Environmental

RoHS compliant

Terminations

RoHS compliant matte tin over nickel over phos-bronze

Weight

220 – 230 mg

Ambient temperature

–40°C to +85°C with

Irms

current

Maximum part temperature

+105°C (ambient + temp rise)

Storage temperature

Component: –40°C to +105°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity

Level (MSL) 1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide,

0.4 mm thick, 12 mm pocket spacing, 4.8 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

DFT7160-513SL_

DFT7160-513BL_

DFT7160-474BL_

DFT7160-105BL_

DFT7160-225BL_

DFT7160-475BL_

Common mode

impedance

max (kOhms)

3.98 @ 73 MHz

4.01 @ 60 MHz

2.44 @ 10 MHz

3.20 @ 8.9 MHz

6.69 @ 5.3 MHz

13.47 @ 3.0 MHz

Cutoff

frequency

(MHz)

570

410

420

670

440

Inductance

(mH)

nom

min

0.051

0.47

1.0

2.2

4.7

0.0357

0.329

0.700

1.54

3.29

Test

frequency

(kHz)

100

0.295

max

7,5

Irms

(mA)

700

1000

900

600

500

DCR

max

(Ohms)

0.300

0.210

0.500

0.600

Leakage

inductance

max (µH)

1.69

0.091

0.085

0.104

0.156

0.260

1. When ordering, please specify

packaging

code:

DFT7160-475BLC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (250 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked (1000 parts per

full reel).

2. Frequency at which the differential mode attenuation equals 3 dB

3. Inductance is for each winding, measured at test frequency using an

Agilent/HP 4286A impedance analyzer and a Coilcraft SMD-A fixture

4. Current that causes a 20°C temperature rise from 25°C ambient.

5. DCR is specified per winding.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

DFT7160

-XXXXL

XXXX Y

0.220

max

5,6

Dot indicates

pin 1

Dash number

Internal code

0.193

max

4,9

0.020

0,50

0.354 ±0.016

9,0 ±0,4

0.004 /0,1

0.030

0,76

0.10 ±0.004

2,54 ±0,10

Recommended

Land Pattern

0.077

1,96

0.067

1,70

0.28

7,2

inches

Dimensions are in mm

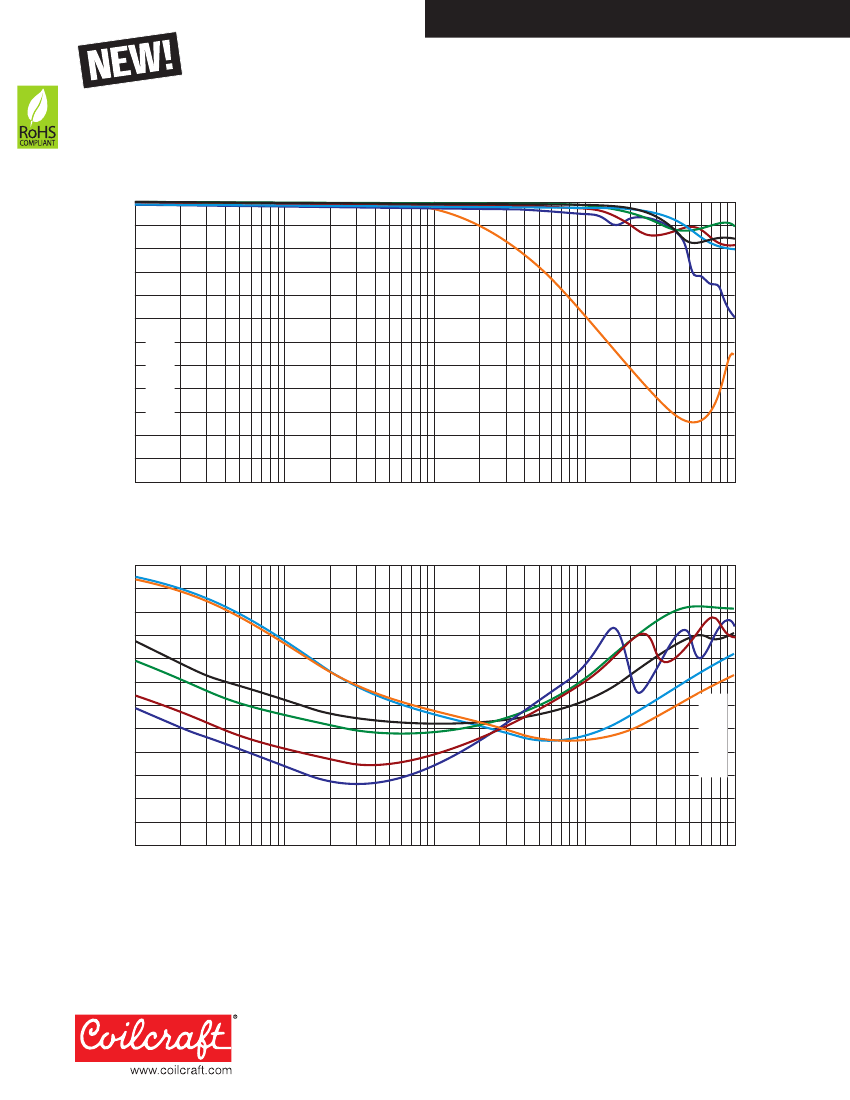

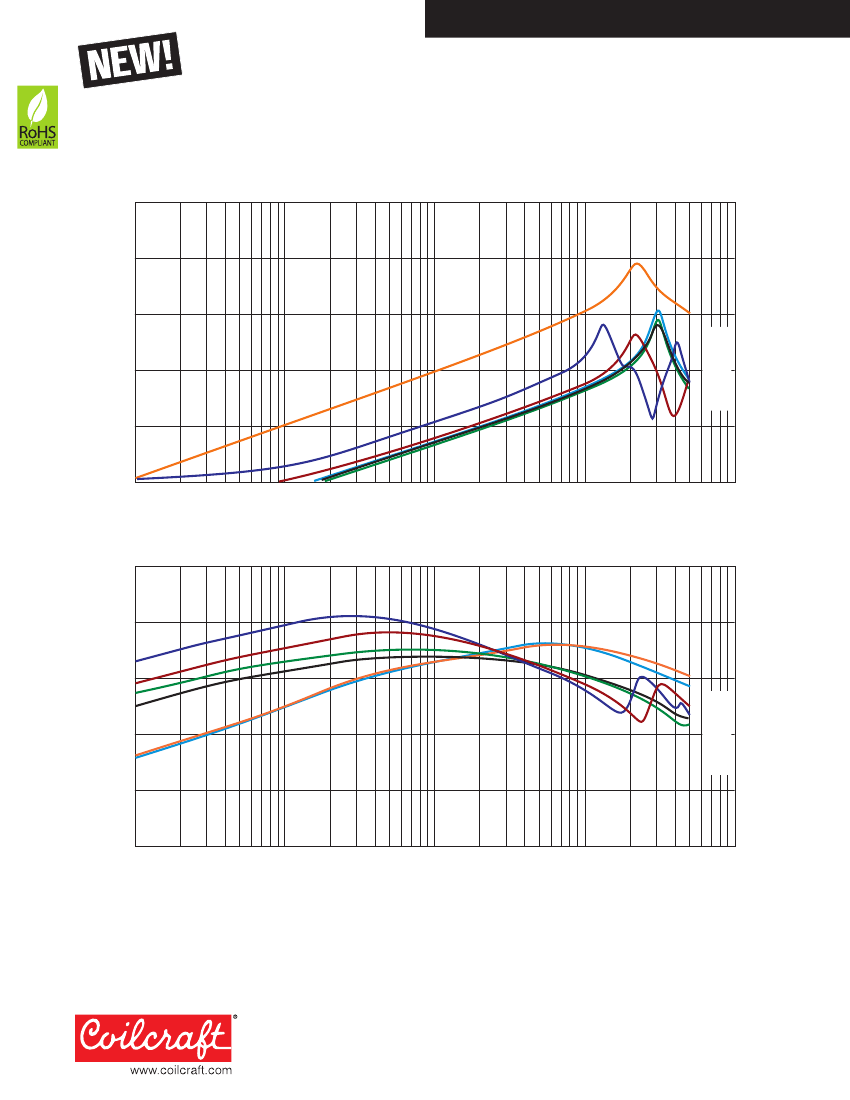

Document 1273-1

07/19/16

Specifications subject to change

+1-847-639-6400 sales@coilcraft.com

without notice.

Please check our website for latest information.

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
