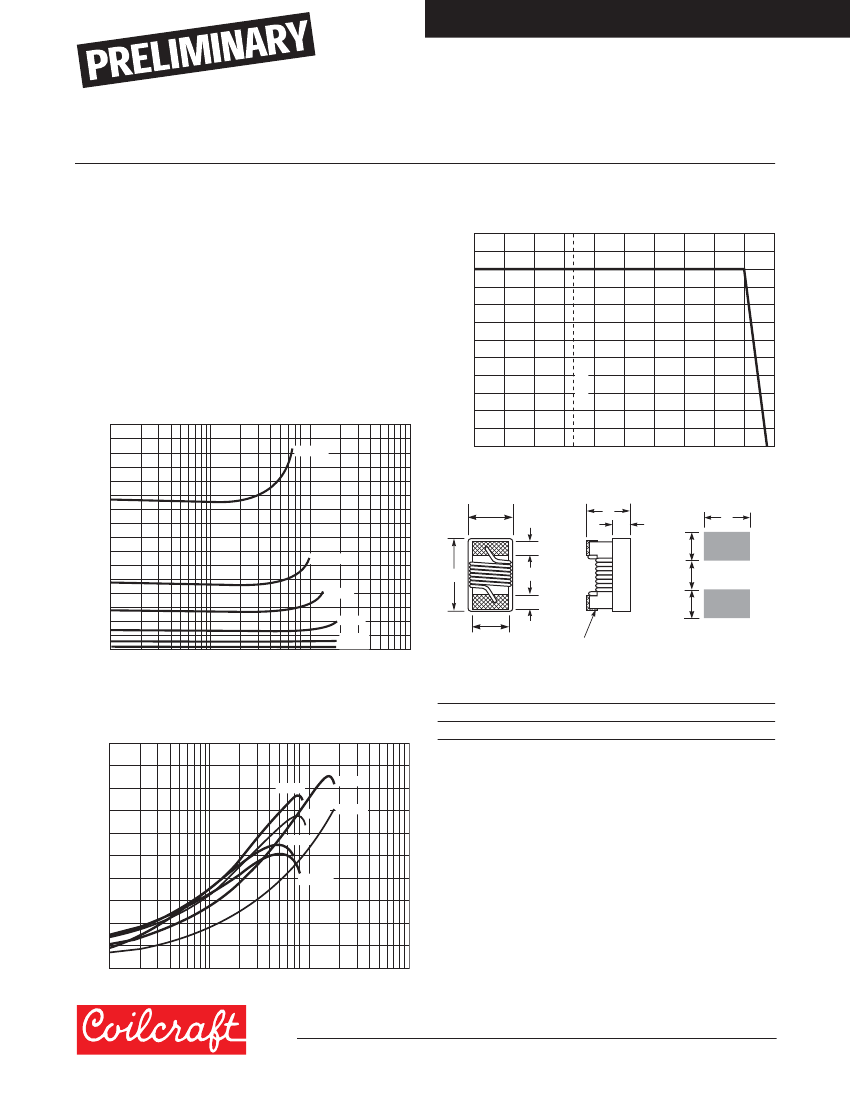

Document M195-1
ChipInductors-M0603CSSeries(1608)
Small size, exceptional Q and high SRFs make these
inductors ideal for high frequency applications where
size is at a premium. They also have excellent DCR
and current carrying characteristics.
This robust version of Coilcraft’s standard 0603CS series
features a high temperature encapsulant that allows
operation in ambient temperatures up to 155°C and a
leach-resistant base metalization with 63/37 tin-lead ter-
minations that ensures the best possible board adhesion.
Irms Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
25°C
40
30
20
10
0
-40
-20
0
20
Typical L vs Frequency
400
350
300
270 nH
40
60
80
100
120
140 160
Ambient temperature (°C)
Inductance (nH)
250
200
B
overall
C
D
I
H
F
150
100
50
0
10
100
1000
120 nH
A
68 nH
G
F
J
I
33 nH
12 nH
3.9 nH
10000
E
terminal
A
max
B
max
0.044
1,12
Terminal wraparound:
approx 0.007/0,18 both ends
Recommended
Land Pattern
Frequency (MHz)
C
max
1,02
D
ref
0,38
E
0,76
F
0,33
G
0,86
H
1,02
I
0,64
J
0,64
Typical Q vs Frequency
100
90
80
70
0.071
1,80
0.040 0.015 0.030 0.013 0.034 0.040 0.025 0.025
33 nH
68 nH
270 nH
12 nH
3.9 nH
Q factor
60
50
40
30
20
10
0
10
100
120 nH
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-palladium-platinum-glass frit
Ambient temperature
–55°C to +140°C with
Irms
current, +140°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced Crush-Resistant Packaging
2000 per 7″ reel
Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing
10000
1000
Frequency (MHz)
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document M195-1 Revised 04/10/08
Critical Products
© Coilcraft, Inc. 2008
1102 Silver Lake Road
Cary IL 60013
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft.com/cp
Document M195-2
M0603CS Series (1608)
Part number
1
M0603CS-1N6X_
M0603CS-1N8X_
M0603CS-2N2X_
M0603CS-3N3X_
M0603CS-3N6X_
M0603CS-3N9X_
M0603CS-4N3X_
M0603CS-4N7X_
M0603CS-5N1X_
M0603CS-5N6X_
M0603CS-6N8X_
M0603CS-7N5X_
M0603CS-8N2X_
M0603CS-8N7X_
M0603CS-9N5X_
M0603CS-10NX_
M0603CS-11NX_
M0603CS-12NX_
M0603CS-15NX_
M0603CS-16NX_
M0603CS-18NX_
M0603CS-22NX_
M0603CS-23NX_
M0603CS-24NX_
M0603CS-27NX_
M0603CS-30NX_
M0603CS-33NX_
M0603CS-36NX_
M0603CS-39NX_
M0603CS-43NX_
M0603CS-47NX_
M0603CS-51NX_
M0603CS-56NX_
M0603CS-68NX_
M0603CS-72NX_
M0603CS-82NX_
M0603CS-R10X_
M0603CS-R11X_
M0603CS-R12X_
M0603CS-R15X_
M0603CS-R18X_
M0603CS-R20X_
M0603CS-R21X_
M0603CS-R22X_
M0603CS-R25X_
M0603CS-R27X_
M0603CS-R33X_
M0603CS-R39X_
Inductance
2
(nH)
1.6 @ 250 MHz
1.8 @ 250 MHz
2.2 @ 250 MHz
3.3 @ 250 MHz
3.6 @ 250 MHz
3.9 @ 250 MHz
4.3 @ 250 MHz
4.7 @ 250 MHz
5.1 @ 250 MHz
5.6 @ 250 MHz
6.8 @ 250 MHz
7.5 @ 250 MHz
8.2 @ 250 MHz
8.7 @ 250 MHz
9.5 @ 250 MHz
10 @ 250 MHz
11 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
23 @ 250 MHz
24 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
33 @ 250 MHz
36 @ 250 MHz
39 @ 250 MHz
43 @ 250 MHz
47 @ 200 MHz
51 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
72 @ 150 MHz
82 @ 150 MHz
100 @ 150 MHz
110 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
180 @ 100 MHz
200 @ 100 MHz
210 @ 100 MHz
220 @ 100 MHz
250 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
Percent
tolerance
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q
min
3
24
16
13
35
22
22
22
20
20
26
27
28
30
28
28
31
30
35
35
34
35
38
38
36
40
37
40
37
40
38
38
35
38
37
34
34
34
32
32
28
25
25
27
25
25
24
25
25
900 MHz
L typ Q typ
1.67
1.83
2.22
3.31
3.72
3.95
4.32
4.72
4.93
5.77
6.75
7.70
8.25
8.86
9.7
10.0
11.0
12.3
15.4
16.2
18.7
22.8
24.1
24.5
29.2
31.4
36.0
39.4
42.7
47.0
52.2
55.5
62.5
80.5
82.0
96.2
124
138
166
250
305
—
—
—
—
—
—
—
49
35
31
75
53
49
50
47
47
63
60
60
82
62
59
66
53
72
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
—
—
—
—
—
—
—
1.7 GHz
L typ Q typ
1.65
1.86
2.24
3.38
3.71
3.96
4.33
4.75
4.95
6.05
7.10
7.82
8.37
9.32
9.92
10.6
11.5
13.5
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97.0
168
135
177
—
—
—
—
—
—
—
—
—
—
—
—
63
50
44
88
65
67
70
57
56
80
81
65
87
58
61
83
56
83
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
—
—
—
—
—
—
—
—
—
—
—
—
SRF
min
4
(MHz)
12500
12500
12500
5900
5900
6900
5900
5800
5700
4760
5800
4800
4200
4600
5400
4800
4000
4000
4000
3300
3100
3000
2850
2650
2800
2250
2300
2080
2200
2000
2000
1900
1900
1700
1700
1700
1400
1350
1300
990
990
900
895
900
822
900
900
900
DCR
max
5
(Ohms)
0.030
0.045
0.250
0.045
0.063
0.080
0.063
0.116
0.140
0.075
0.110
0.106
0.115
0.109
0.135
0.130
0.130
0.130
0.170
0.170
0.170
0.190
0.190
0.190
0.220
0.220
0.220
0.250
0.250
0.280
0.280
0.270
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.920
1.25
1.98
2.06
2.10
3.55
2.30
3.89
4.35
Irms
6
Color
(mA) code
700
700
100
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
600
600
600
600
600
600
600
600
600
600
400
400
400
300
300
280
240
200
200
200
120
170
100
100
Red
Black
Yellow
Blue
Red
Brown
Orange
Violet
Green
Black
Red
Brown
Orange
Yellow
Blue
Orange
Gray
Yellow
Green
White
Blue
Violet
Orange
Black
Gray
Brown
White
Red
Black
Orange
Brown
Blue
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Green
Gray
Brown
Violet
Red
Blue
Yellow
1. When ordering, please specify
tolerance
code:
M0603CS-R39XJ
Tolerance:
G
= 2%
J
= 5%
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286 impedance analyzer with Coilcraft-provided correlation pieces.
3. Q measured at the same frequency as inductance using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
4. SRF measured using an Agilent/HP 8720D network analyzer and a Coilcraft SMD-D test fixture.
5. DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF858 test fixture.
6. Current that causes a 15°C temperature rise from 25°C ambient.
10.Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document M195-2 Revised 04/10/08
Critical Products
© Coilcraft, Inc. 2008
1102 Silver Lake Road
Cary IL 60013
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft.com/cp
