Document 1125-1
Power Inductors – RFC1010 Series

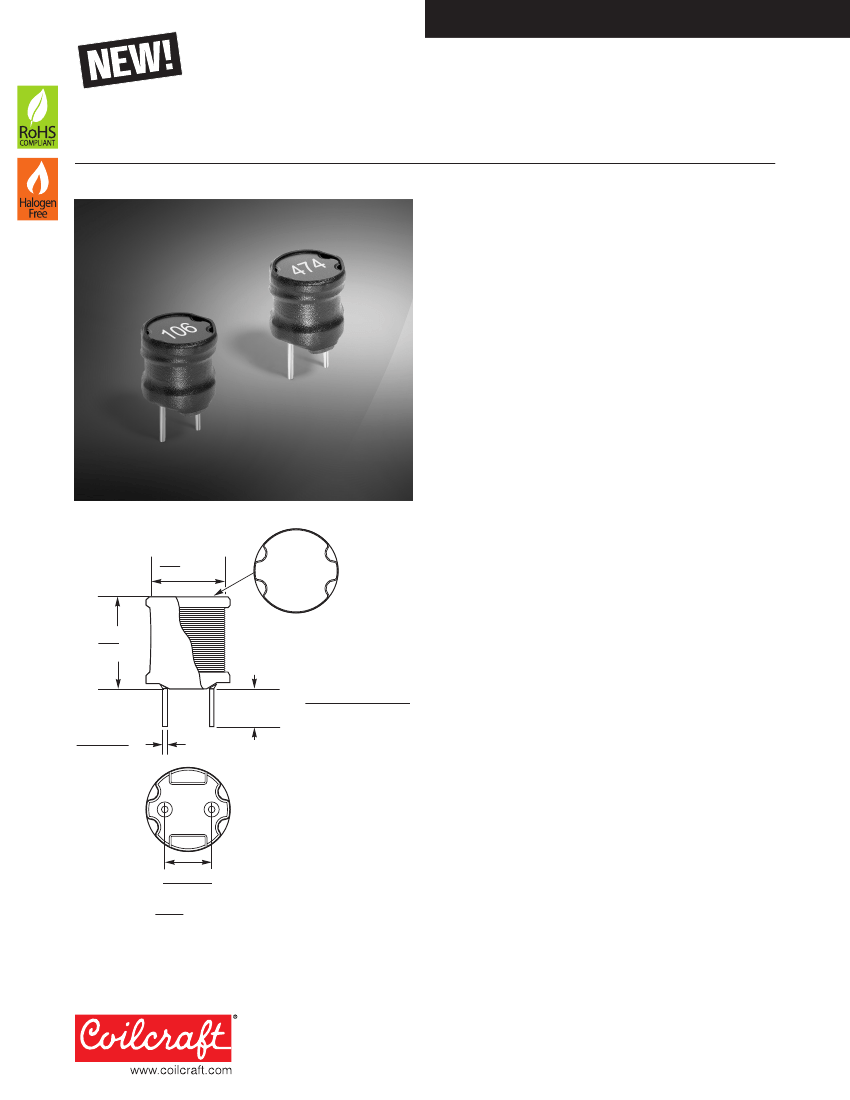

• Low cost, high current power inductors
• 30 inductance values; 68 µH to 18 mH
• Flame retardant polyolefin wrap to protect the winding.
Core material
Ferrite
Terminations
RoHS compliant tin-silver over tin over copper over
steel. Other terminations available at additional cost
Environmental
RoHS compliant, halogen free
Weight
3.2 – 3.7 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +85°C.
Tray or tape packaging: –40°C to +80°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SRA-332
Packaging
150 parts per tray
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf
0.43
dia max
11,0
XXX
Dash number
0.45 max
11,5
Lead length
(see table)
0.032 ±0.004 dia
0,8 ±0,1
Code
A
B
C
D
E
Lead length
3.6 mm ±0.3 mm
5.0 mm ±0.5 mm
7.0 mm ±0.5 mm
8.0 mm ±0.5 mm
10 mm ±1.0 mm
0.236 ±0.02
6,0 ±0,5
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1125-1
Revised 01/30/14
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1125-2
Power Inductors – RFC1010 Series
Part number
1
RFC1010B-683KE
RFC1010B-823KE
RFC1010B-104KE
RFC1010B-124KE
RFC1010B-154KE
RFC1010B-184KE
RFC1010B-224KE
RFC1010B-274KE
RFC1010B-334KE
RFC1010B-394KE
RFC1010B-474KE
RFC1010B-564KE
RFC1010B-684KE
RFC1010B-824KE
RFC1010B-105KE
RFC1010B-125KE
RFC1010B-155KE
RFC1010B-185KE
RFC1010B-225KE
RFC1010B-275KE
RFC1010B-335KE
RFC1010B-395KE
RFC1010B-475KE
RFC1010B-565KE
RFC1010B-685KE
RFC1010B-825KE
RFC1010B-106KE
RFC1010B-126KE
RFC1010B-156KE
RFC1010B-186KE
Inductance
2
±10% (µH)
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10,000
12,000
15,000
18,000
DCR (Ohms)
typ
max
0.100
0.115
0.110
0.125
0.130
0.150
0.170
0.195
0.200
0.230
0.255
0.295
0.290
0.335
0.380
0.440
0.435
0.500
0.485
0.560
0.630
0.725
0.700
0.805
0.965
1.11
1.07
1.20
1.24
1.40
1.61
1.85
1.78
2.05
2.40
2.75
2.80
3.20
3.65
4.20
4.15
4.75
4.65
5.30
6.05
6.95
6.75
7.75
8.90
10.0
10.0
11.0
14.0
15.5
16.0
17.5
18.0
19.5
23.0
25.0
SRF typ
3
(MHz)
5.6
5.4
4.7
4.3
4.0
3.4
3.1
2.8
2.6
2.4
2.1
1.9
1.7
1.6
1.5
1.3
1.2
1.1
0.99
0.82
0.75
0.71
0.61
0.57
0.49
0.46
0.43
0.41
0.38
0.33
10% drop
3.20
2.95
2.65
2.40
2.20
2.00
1.85
1.65
1.50
1.40
1.25
1.15
1.05
0.95
0.90
0.75
0.70
0.64
0.58
0.53
0.48
0.45
0.41
0.37
0.34
0.32
0.29
0.25
0.23
0.21
Isat
(A)
4
20% drop
3.67
3.40
3.03
2.78
2.50
2.28
2.08
1.88
1.72
1.60
1.42
1.32
1.18
1.10
1.00
0.90
0.81
0.71
0.65
0.59
0.53
0.49
0.45
0.41
0.38
0.35
0.31
0.28
0.26
0.23
30% drop
3.94
3.67
3.27
2.98
2.70
2.44
2.25
2.04
1.84
1.72
1.53
1.42
1.26
1.18
1.07
0.96
0.86
0.77
0.70
0.63
0.57
0.53
0.48
0.44
0.40
0.37
0.33
0.30
0.28
0.24
Irms
(A)
5
20°C rise 40°C rise
1.80
2.40
1.70
2.30
1.60
2.15
1.40
1.90
1.30
1.75
1.10
1.55
1.05
1.45
0.90
1.27
0.85
1.18
0.82
1.12
0.72
1.00
0.68
0.92
0.58
0.78
0.54
0.74
0.50
0.70
0.43
0.61
0.41
0.58
0.36
0.50
0.33
0.47
0.29
0.41
0.28
0.38
0.26
0.36
0.22
0.32
0.21
0.30
0.180
0.260
0.170
0.245
0.150
0.210
0.135
0.180
0.130
0.170
0.115
0.150
1. When ordering, please specify
lead length
and
termination
codes:
RFC1010B-183E
Lead length: A
= 3.6 mm ±0.3 mm (special order)
B
= 5.0 mm ±0.5 mm
C
= 7.0 mm ±0.5 mm (special order)
D
= 8.0 mm ±0.5 mm (special order)
E
= 10.0 mm ±1.0 mm (special order)
Termination: E
= RoHS compliant tin-silver over tin over copper over steel.
Special order:
S
= non-RoHS tin-lead (63/37).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
3. SRF measured using Agilent/HP 4191A or equivalent.
4. DC current at which the inductance drops the specified amount from its value without current.
5. Current that causes the specified temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1125-2
Revised 01/30/14
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1125-3

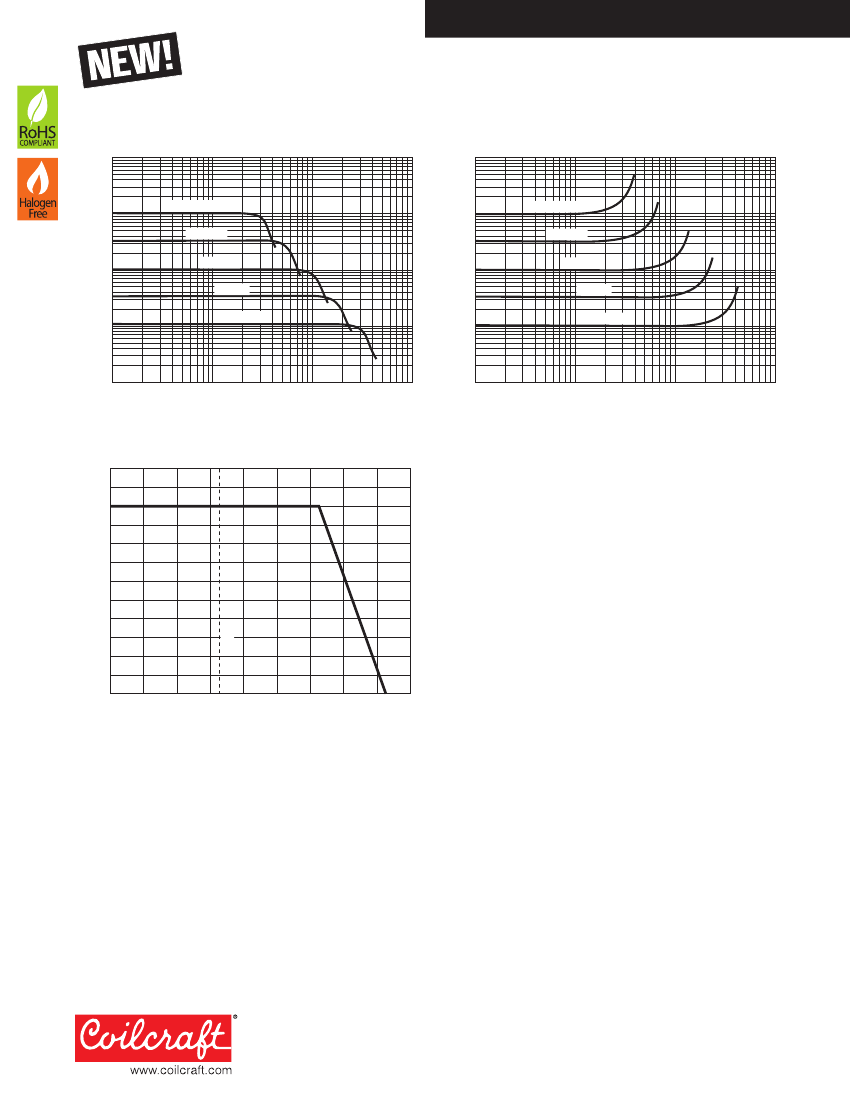

Typical L vs Current
100,000
10,000 µH
3300 µH
1000 µH
Power Inductors – RFC1010 Series
Typical L vs Frequency
100,000
10,000 µH
3300 µH
1000 µH
330 µH
100
100 µH
10,000
10,000
Inductance (µH)
1000
330 µH
100 µH
100
10
Inductance (µH)
1
10
1000
0.01
0.1
10
0.01
0.1
1
10
Current (A)
Frequency (MHz)
Typical Irms derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
Ambient temperature (°C)
25°C
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1125-3
Revised 01/30/14
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
