2 Watt
24 Pin DIL Package V
2:1 Input Range - Metal Case
o Wide Input Range
o Regulated Single & Dual Output
o Short Circuit Protection
o 1.5 KVDC I/O-Isolation
o Option 3.5 KVDC I/O-Isolation
MODEL NUMBER
INPUT
VOLTAGE
OUTPUT
VOLTAGE
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
24 VDC
OUTPUT
CURRENT
600 mA
400 mA
222 mA
167 mA
133 mA
83 mA
INPUT CURRENT
% EFF.
NO LOAD
FULL LOAD
223 mA
222 mA
219 mA
219 mA
219 mA
219 mA
30 mA
229 mA
219 mA
219 mA
219 mA
219 mA
219 mA
109 mA
107 mA
107 mA
107 mA
107 mA
107 mA
20 mA
112 mA
109 mA
107 mA
107 mA
107 mA
107 mA
74
75
76
76
76
76
72
75
76
76
76
76
76
78
78
78
78
78
74
76
78
78
78
78
Capacitor
Load µF
680
680
330
220
100
33
±330
±330
±100
±47
±33
±22
680
680
330
220
100
33
±330
±330
±100
±47
±33
±22
2VRS12W3.3M
2VRS12W5M
2VRS12W9M
2VRS12W12M
2VRS12W15M
2VRS12W24M
9-18 VDC
2VRD12W3.3M
2VRD12W5M
2VRD12W9M
2VRD12W12M
2VRD12W15M
2VRD12W24M
2VRS24W3.3M
2VRS24W5M
2VRS24W9M
2VRS24W12M
2VRS24W15M
2VRS24W24M
18-36 VDC
2VRD24W3.3M
2VRD24W5M
2VRD24W9M
2VRD24W12M
2VRD24W15M
2VRD24W24M
last up-date 12.01.2011
±3.3 VDC
±5 VDC
±9 VDC
±12 VDC
±15 VDC
±24 VDC
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
24 VDC
±3.3 VDC
±5 VDC
±9 VDC
±12 VDC
±15 VDC
±24 VDC
±300 mA
±200 mA
±111 mA
±83 mA
±67 mA
±42 mA
600 mA
400 mA
222 mA
167 mA
133 mA
83 mA
±300 mA
±200 mA
±111 mA
±83 mA
±67 mA
±42 mA
2 Watt - 24 Pin DIL - Package V - 2:1 Input Range - Metal Case
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
2/5
MODEL NUMBER
INPUT
VOLTAGE
OUTPUT
VOLTAGE
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
24 VDC
OUTPUT
CURRENT
600 mA
400 mA
222 mA
167 mA
133 mA
83 mA
INPUT CURRENT
% EFF.
NO LOAD
FULL LOAD
56 mA
56 mA
56 mA
56 mA
56 mA
56 mA
12 mA
56 mA
56 mA
56 mA
56 mA
56 mA
56 mA
74
75
75
75
75
75
74
75
75
75
75
75
Capacitor
Load µF
680
680
330
220
100
33
±330
±330
±100
±47
±33
±22
2VRS48W3.3M
2VRS48W5M
2VRS48W9M
2VRS48W12M
2VRS48W15M
2VRS48W24M
36-72 VDC
2VRD48W3.3M
2VRD48W5M
2VRD48W9M
2VRD48W12M
2VRD48W15M
2VRD48W24M
±3.3 VDC
±5 VDC
±9 VDC
±12 VDC
±15 VDC
±24 VDC
±300 mA
±200 mA
±111 mA
±83 mA
±67 mA
±42 mA
INPUT SPECIFICATIONS
Input Voltage Range
Input Filter
Input Reflected Ripple Current
1)
2:1
Pi Type
35 mA p-p
OUTPUT SPECIFICATIONS
Voltage Accuracy
Temperature Coefficient
Ripple and Noise, 20MHz BW
2)
Short Circuit Protection
Capacitor Load
3)
Line Regulation
Load Regulation
Output 3.3 V/±3.3 V Model
±1%
±0.02%/°C
60mV p-p
Indefinite (Automatic Recovery)
see table
±0.5%
±1.5%
±0.5%
NOTE
1. Measured Input reflected ripple current with a simulated source inductance of 12 µH.
2. Typical value at nominal input voltage and full load.
3. Test by nominal input voltage and constant restistor load.
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
2 Watt - 24 Pin DIL - Package V - 2:1 Input Range - Metal Case
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
3/5
GENERAL SPECIFICATION
Efficiency
Isolation Voltage (3 sec)
Plastic Case Suffix "P"
Suffix "H"
Isolation Resistance
Isolation Capacitance
Switching Frequency
Operating Temperature Range
Case Temperature
Storage Temperature Range
Derating
Cooling
Humidity
Dimensions
Case Material
Case Material Suffix "P"
Base Material
Pin Material
Potting Material
Weight
Plastic Case Suffix "P"
MTBF (MIL-HDBK-217F)
Safety Standard (designed to meet)
see table
1000 VDC
1500 VDC
3500 VDC
1.000 Mohms
470 pF
266 kHz
-40°C to +85°C
+100°C max.
-40°C to +125°C
see derating curve
Nature Convection
95% rel H
31.75 x 20.32 x 10.16 mm (1.25 x 0.8 x 0.4 Inches)
Nickel-Coated Copper
Non-Conductive Black Plastic (UL94V-0 rated)
Non-Conductive Black Plastic (UL94V-0 rated)
ø0.5mm Brass Solder-coated
Epoxy (UL94V-0 rated)
17.0 g
13.5 g
>1.121 Mhrs
IEC 60950-1
ABSOLUTE SPECIFICATIONS
These are stress ratings. Exposure of devices to any of these conditions may adversely affect long-term reliability.
Input Voltage (100 mS)
Lead Soldering Temperature (1.5 mm from case 10 sec.)
NOTE:
Exceeding the absolute ratings of the unit could cause damage. It is not allowed for continuous operating.
Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications.
12 V
24 V
48 V
-0.7 VDC to 24 VDC
-0.7 VDC to 40 VDC
-0.7 VDC to 80 VDC
+260°C
N O T I C E:
The information in this document has been carefully checked. However, no responsibility is assumed for inaccuracies!
Specifications can be changed without notice. The latest and most complete information can be found on our website.
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
2 Watt - 24 Pin DIL - Package V - 2:1 Input Range - Metal Case
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
4/5
MECHANICAL SPECIFICATIONS
CASE "V"
NICKEL-COATED COPPER
PIN
1 & 24
2 & 23
3 & 22
9 & 16
10 & 15
11 & 14
12 & 13
PIN CONNECTIONS 1.500VDC
SINGLE
+INPUT
NC*
NC*
NO PIN
-OUTPUT
+OUTPUT
-INPUT
DUAL
+INPUT
-OUTPUT
COMMON
NO PIN
COMMON
+OUTPUT
-INPUT
*NC = NOT CONNECTED
NON-CONDUCTIVE BLACK PLASTIC (Suffix „P“)
PIN
1 & 24
2&3
9
10 &15
11
12 & 13
14
16
22 & 23
PIN CONNECTIONS 3.500VDC
SINGLE
NO PIN
-INPUT
NO PIN
NO PIN
NC*
NO PIN
+OUTPUT
-OUTPUT
+INPUT
DUAL
NO PIN
-INPUT
COMMON
NO PIN
-OUTPUT
NO PIN
+OUTPUT
COMMON
+INPUT
*NC = NOT CONNECTED
DIAGRAMS

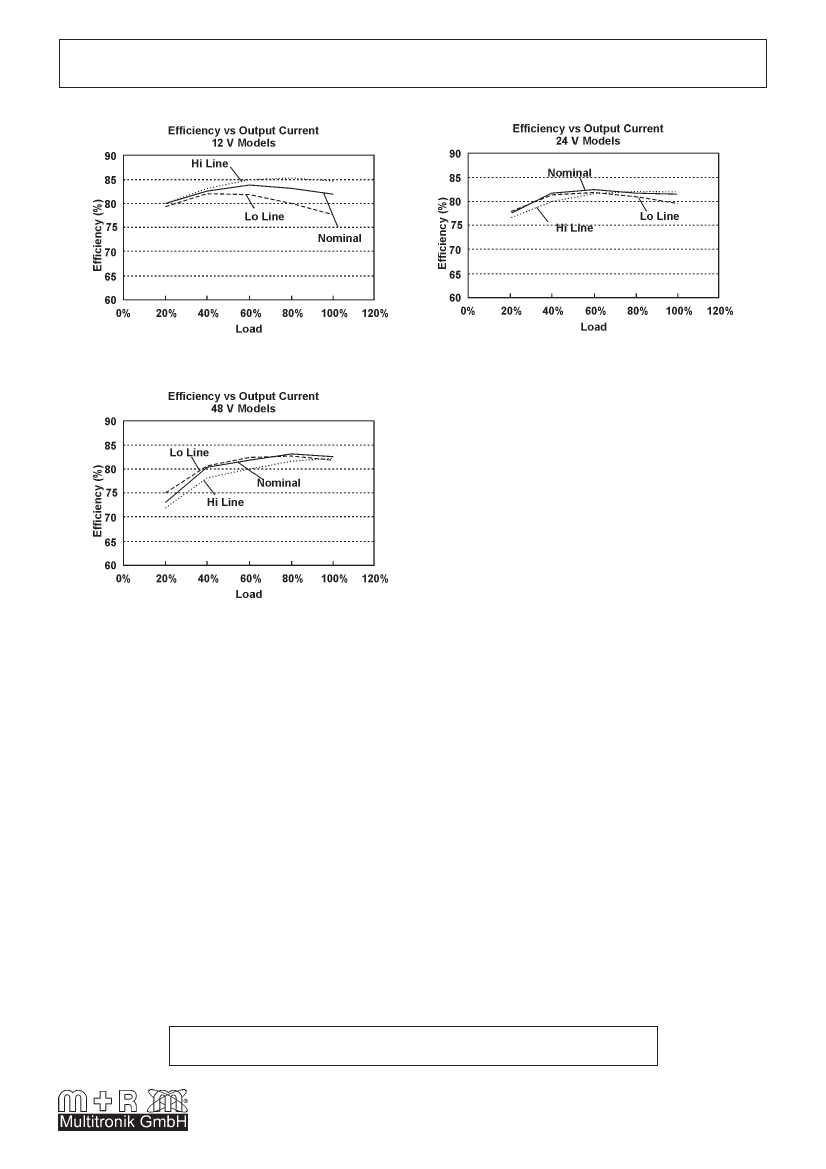

Derating Curve
