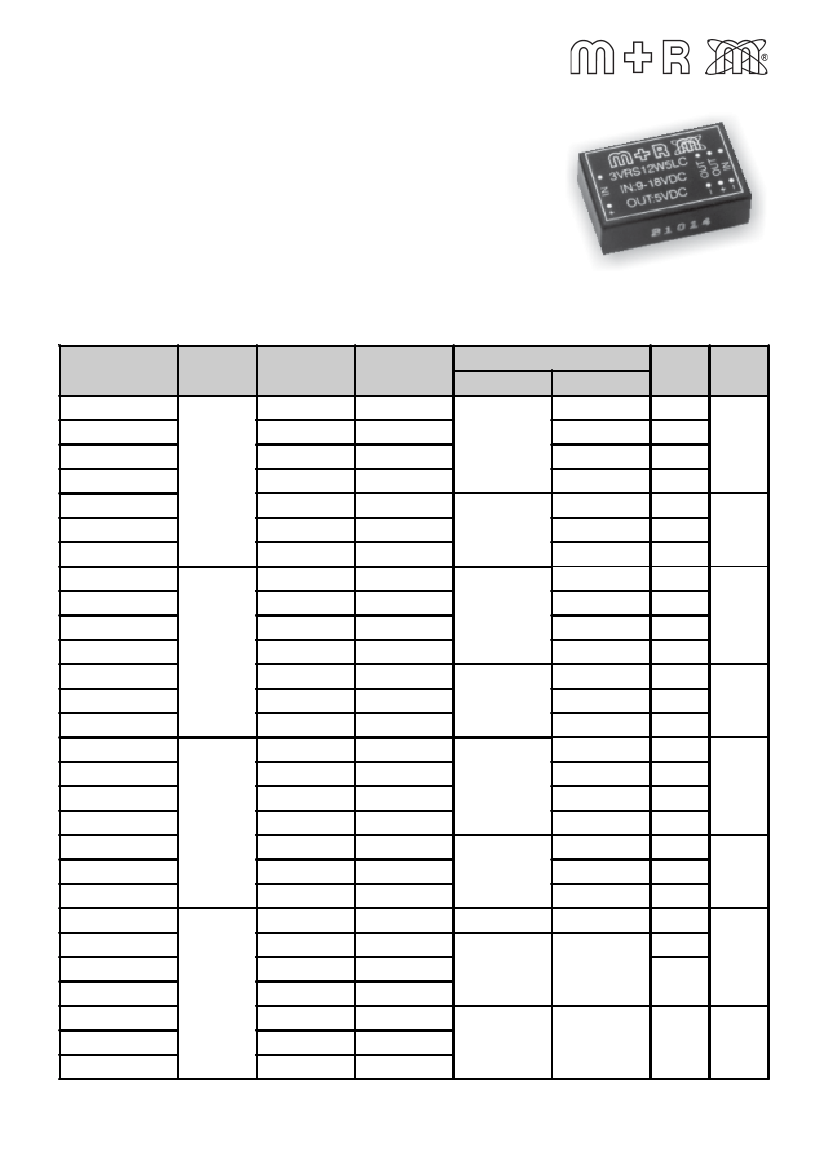

3 Watt
o Wide Input Range
o Regulated Outputs
o Single & Dual Outputs
o Efficiency up to 82%
24 Pin DIL Package V
2:1 Input Range
o Short Circuit Protection - Power Fold Back
o Option 3000 VDC I/O-Isolation (With Remote Control)
o Option Conductive EMI/RFI Meet EN55022 Class B add Suffix „B“
MODEL NUMBER
3VRS5W3.3LC*
3VRS5W5LC*
3VRS5W12LC*
3VRS5W15LC*
3VRD5W5LC*
3VRD5W12LC*
3VRD5W15LC*
3VRS12W3.3LC
3VRS12W5LC
3VRS12W12LC
3VRS12W15LC
3VRD12W5LC
3VRD12W12LC
3VRD12W15LC
3VRS24W3.3LC
3VRS24W5LC
3VRS24W12LC
3VRS24W15LC
3VRD24W5LC
3VRD24W12LC
3VRD24W15LC
3VRS48W3.3LC
3VRS48W5LC
3VRS48W12LC
3VRS48W15LC
3VRD48W5LC
3VRD48W12LC
3VRD48W15LC
INPUT
VOLTAGE
OUTPUT
VOLTAGE
3.3 VDC
5 VDC
12 VDC
OUTPUT
CURRENT
600 mA
600 mA
INPUT CURRENT
%EFF
NO LOAD
FULL LOAD
582 mA
800 mA
15 mA
759 mA
779 mA
779 mA
25 mA
789 mA
800 mA
229 mA
325 mA
7.5 mA
313 mA
316 mA
325 mA
12 mA
325 mA
316 mA
111 mA
158 mA
5 mA
156 mA
152 mA
162 mA
7.5 mA
158 mA
154 mA
3 mA
57 mA
68
75
Cap.
Load
2200 µF
79
77
77
76
75
72
77
2200 µF
80
79
77
77
79
74
79
2200 µF
80
82
77
79
81
72
79
2200 µF
1000 µF
1000 µF
1000 µF
250 mA
200 mA
±300 mA
±125 mA
±100 mA
600 mA
600 mA
250 mA
200 mA
±300 mA
±125 mA
±100 mA
600 mA
600 mA
250 mA
200 mA
±300 mA
±125 mA
±100 mA
600 mA
600 mA
250 mA
200 mA
±300 mA
±125 mA
±100 mA
3 mA
2 mA
4.5-6 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
12 VDC
9-18 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
12 VDC
18-36 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
12 VDC
78 mA
80
36-72 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
80 mA
78
1000 µF
*Suffix "B" not available
last up-date 16.11.2011
3 Watt - 24 Pin DIL - Package V - 2:1 Input Range
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
2/4
INPUT SPECIFICATIONS
Input Voltage Range
5V
12 V
24 V
48 V
2:1
10 VDC max.
25 VDC max.
50 VDC max.
100 VDC max.
Pi Type
Input Surge Voltage (100 ms max.)
Input Filter
OUTPUT SPECIFICATIONS
Voltage Accuracy
Voltage Balance, Dual Output
Temperature Coefficient
Ripple and Noise, 20MHz BW
Short Circuit Protection
Start up Time
Line Regulation
1)
Load Regulation
1) Measured from High Line to Low Line.
2) Measured from Full Load to 10% Load.
3) Measured from Full Load to 1/4 Load.
±2%max.
±1%max.
±0.05%/°C
3.3V, 5V
12V, 15V
100 mV p-p max.
1% p-p max.
Continuous
10 ms max.
±0.5% max.
Single
2)
Dual
3)
±0.5% max.
±1.0% max.
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
3 Watt - 24 Pin DIL - Package V - 2:1 Input Range
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
3/4
GENERAL SPECIFICATION
Efficiency
Isolation Voltage
Suffix "H"
4)
Suffix "B" **
Suffix "HBR"
Isolation Resistance
Isolation Capacitance
Switching Frequency
Operating Temperature Range
Case Temperature
Storage Temperature Range
Humidity Non-Condensing
Derating
Cooling
Case Material
Case Dimensions
Weight
Suffix "M"
5)
MTBF (MIL-HDBK-217F)
4) Non-Conductive Black Plastic only
5) Suffix "HM" 1.5 KVDC instead of 3 KVDC Isolation
**) Subject to small Changes for Suffix "B". Please double check with M+R directly!
see table
500 VDC min.
3000 VDC min.
Option EMI/RFI EN55022 Class B
3KVDC + EN55022 Class B
+ Remote
Ctlr.
1000 Mohms
250 pF
100 kHz min.
-25°C to +71°C
Plastic Case
Copper Case
+95°C max.
+100°C max.
-40°C to +100°C
95% RH max. non condensing
see Diagram
Free-Air convection
Non-Conductive Black Plastic
Standard
Suffix "B"+"HBR"
1.25 x 0.8 x 0.4 Inches (31.8 x 20.3 x 10.2 mm)
1.25 x 0.8 x 0.5 Inches (31.8 x 20.3 x 12.7 mm)
12.5 g
Black Coated Copper with Non-Conductive Base
1.300.000 hrs
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
3 Watt - 24 Pin DIL - Package V - 2:1 Input Range
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
4/4

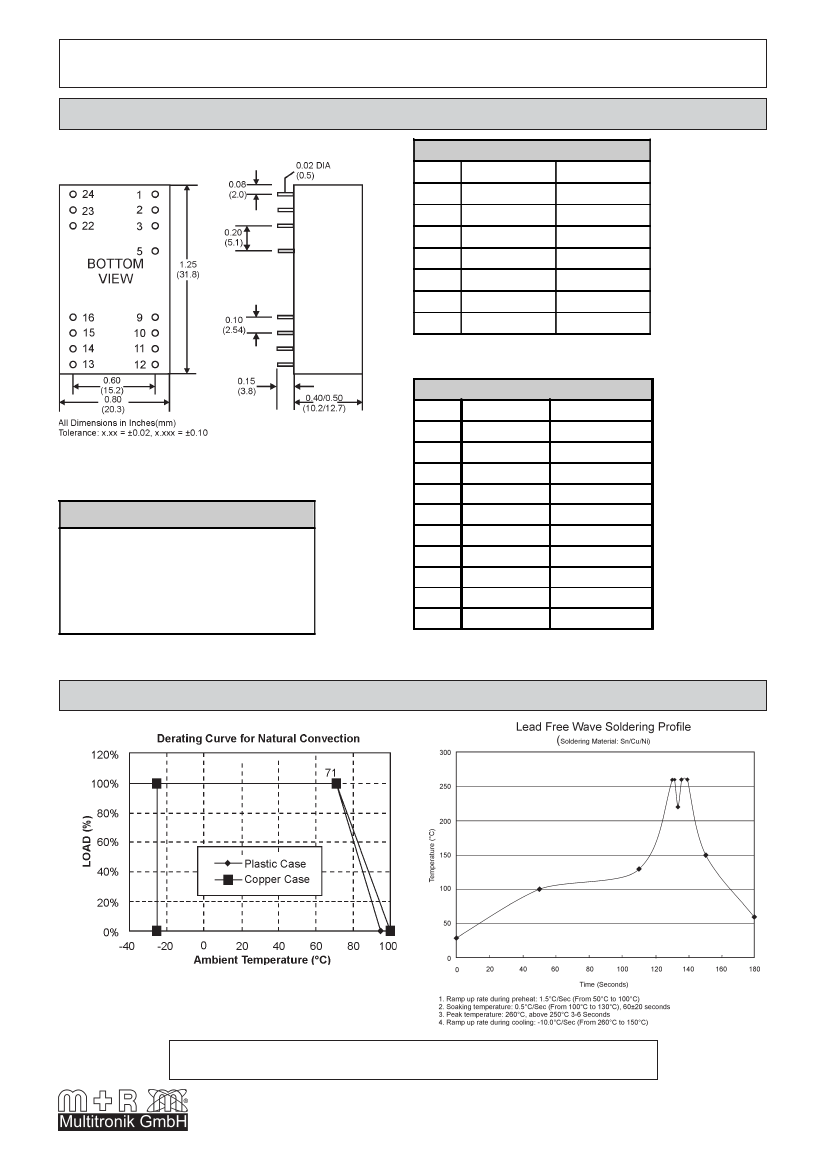

MECHANICAL SPECIFICATIONS
CASE "V"
PIN
1 & 24
2 & 23
3 & 22
9 & 16
10 & 15
11 & 14
12 & 13
PIN CONNECTIONS 500VDC
SINGLE
+INPUT
NC*
NC*
NO PIN
-OUTPUT
+OUTPUT
-INPUT
DUAL
+INPUT
-OUTPUT
COMMON
NO PIN
COMMON
+OUTPUT
-INPUT
* Option "NO Pin" at Single Output add Suffix "NP"
to Part No.
PIN CONNECTIONS 1.5 KVDC & 3KVDC
PIN
1 & 24
2&3
5
9
SINGLE
NO PIN
-INPUT
NP
NC*
NC*
NC
NO PIN
+OUTPUT
-OUTPUT
+INPUT
DUAL
NO PIN
-INPUT
NP
COMMON
NC*
-OUTPUT
NO PIN
+OUTPUT
COMMON
+INPUT
REMOTE ON/OFF CONTROL
Logic Compatibility
Ec-ON
Ec-OFF
Shutdown Idle Current
Control Common
CMOS or Open Collector TTL
>+5.5VDC or Open Circuit
<1.8VDC
10mA
Referenced to Input Minus
10 & 15
11
12 & 13
14
16
22 & 23
PIN 5 = Remote Control at Suffix "HBR"
*) Option "NO PIN" add Suffix "NP" to Part-No.
DIAGRAMS
N O T I C E:
The information in this document has been carefully checked. However, no responsibility is assumed for inaccuracies!
Specifications can be changed without notice. The latest and most complete information can be found on our website.
