122A13109X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 122A13109X

122A13109X: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Plug; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

122A13109X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	122A13109X	-	-	View	Buy Now

122A13109X Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Plug

122A13109X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.618 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	50 Cycles
maximum insertion force	1.39 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	122
Plug contact pitch	0.2 inch
Match contact row spacing	0.4 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,E
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	10.16 mm
Rated current (signal)	5.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.181 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

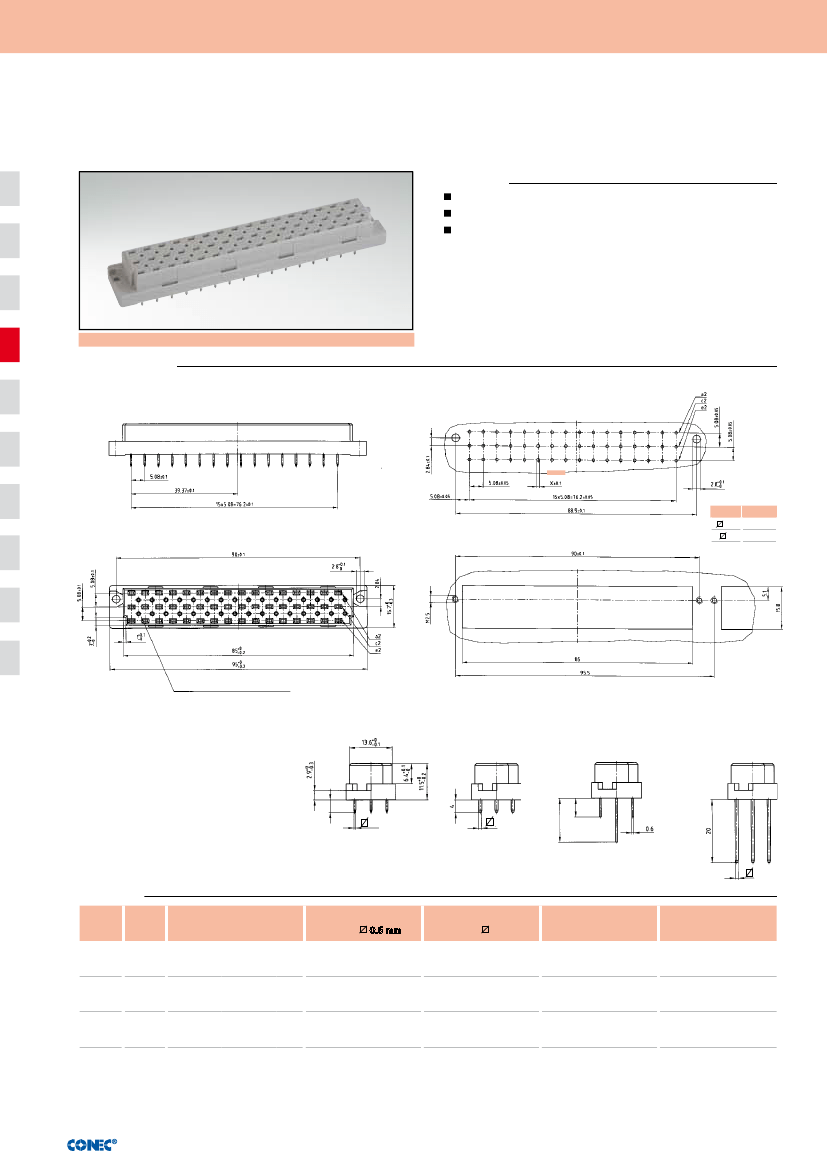

C onne c to rs D IN EN

60603- 2 (D IN 41612 )

Type E

Female connector – straight – 32 and 48 positions

Description

Solder pin, wire wrap and solder lug

Quality class 3 (also available in quality class 2 or 1)

Special assembly on request

RoHS compliant

Product drawing

PCB-hole pattern

X ± 0.1

Panel cutout

0.6

X ± 0,1

1.6

32 holes for code pins Ø 1x4.5 mm deep

Solder pin

straight 4.6 mm

Solder pin

straight 4 mm

Solder lug

Wire Wrap

4.6

0,6

6.5

Order data

No. of

Pos.

Row

• = contact, + = no contact

Pos.

...

(Dim. = mm)

Solder pin straight

4.6 mm 0.6 mm

122 A 13099 X

122 A 13109 X

122 A 13119 X

Solder pin straight

4.0 mm 1 mm

122 A 13129 X

122 A 13139 X

122 A 11619 X

Solder lug

122 A 13149 X

122 A 13159 X

122 A 11629 X

Wire Wrap

122 A 13169 X

122 A 13179 X

122 A 11609 X

•

4| 22

122A13109X Related Products

	122A13109X	122A13179X	122A11609X	122A13129X	122A13139X
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.618 inch	0.618 inch	0.618 inch	0.618 inch	0.618 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	1.39 N	1.39 N	1.39 N	1.39 N	1.39 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Match contact row spacing	0.4 inch	0.4 inch	0.2 inch	0.2 inch	0.4 inch
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,E	A,E	A,C,E	A,C	A,E
PCB row number	2	2	3	2	2
Number of rows loaded	2	2	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	10.16 mm	10.16 mm	5.08 mm	5.08 mm	10.16 mm
Rated current (signal)	5.5 A	5.5 A	5.5 A	5.5 A	5.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.181 inch	0.787 inch	0.787 inch	0.157 inch	0.157 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	WIRE WRAP	WIRE WRAP	SOLDER	SOLDER
Total number of contacts	32	32	48	32	32
Maker	CONEC	CONEC	CONEC	-	-
Manufacturer's serial number	122	122	-	122	122
ECCN code	-	-	EAR99	EAR99	EAR99
