5126-170.0M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 5126-170.0M

5126-170.0M: DescriptionLVCMOS Output Clock Oscillator, 170MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6; CategoryPassive components oscillator; File Size234KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/; Environmental Compliance

Download Datasheet Parametric View All

5126-170.0M Overview

LVCMOS Output Clock Oscillator, 170MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6

5126-170.0M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	170 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.5mm
longest rise time	5 ns
Maximum supply voltage	2.94 V
Minimum supply voltage	2.66 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Low Voltage

LVMOS

Clock Oscillator

Description:

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

US Headquarters:

630-851-4722

European Headquarters:

+353-61-472221

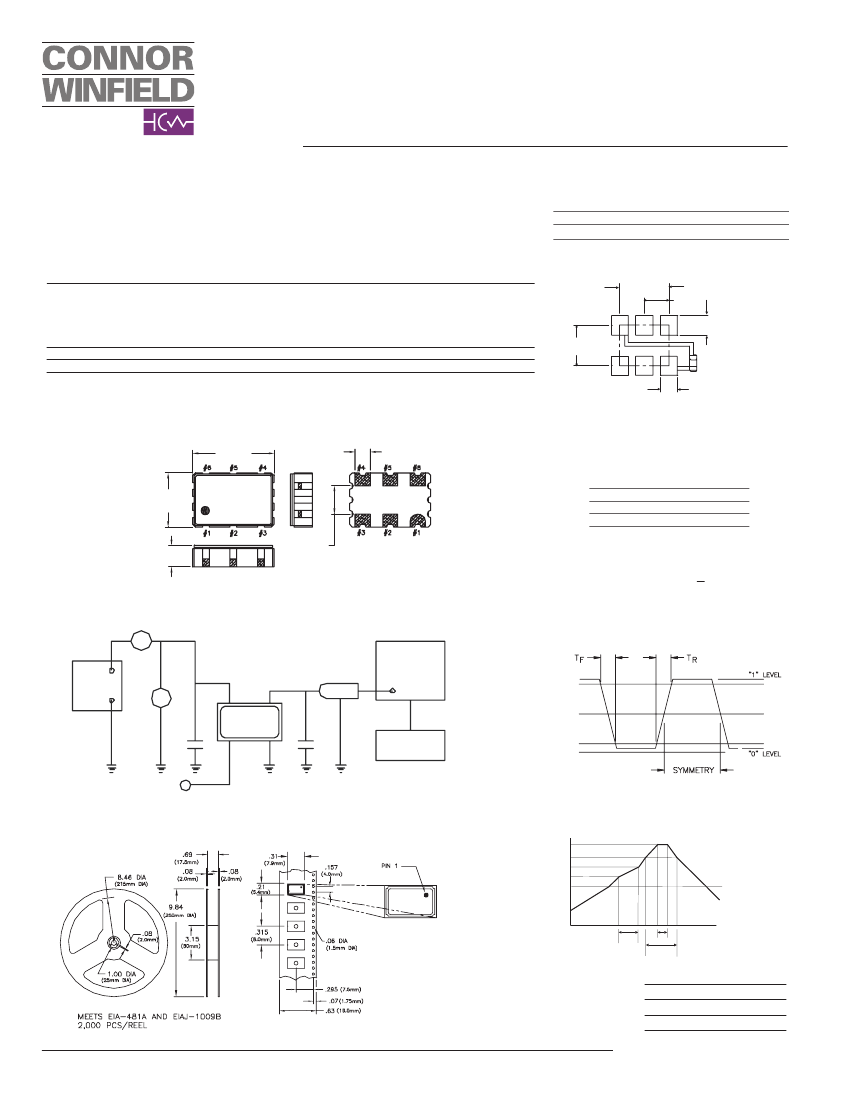

The Connor Winfield 5xxx Series are

5.0x7.0mm Surface Mount, LVCMOS, Fixed

Frequency Crystal Controlled Oscillator (XO)

designed for applications requiring tight

frequency stability, wide temperature range and

low jitter. Operating at 1.8V, 2.5V or 2.8V supply

voltage, the 5xxx Series provides a LVCMOS

Output with a Tri-state enable / disable function.

The surface mount package is designed for

high-density mounting and is optimum for mass

production.

156.2

1140

5112

5 MH

Features:

Model 5xxx - Series

5.0 x7.0mm Surface Mount Package

1.8V, 2.5V or 2.8V Operation

LVCMOS Output

Frequency Stabilities Available:

+/-25ppm, +/-50ppm or +/-100ppm

Temperature Ranges Available:

-10 to 70°C or -40 to 85°C,

Low Jitter <1.0 ps RMS

Tri-State Enable/Disable

Tape and Reel Packaging

RoHS Compliant / Lead Free

Absolute Maximum Ratings

Storage Temperature

Supply Voltage (Vcc)

Input Voltage

Parameter

Minimum

-55

-0.5

Nominal

Maximum

125

5.0

Vcc + 0.5

Units

°C

Vdc

Notes

Operating Specifications

Output Frequency (Fo)

1.0

170

Total Frequency Tolerance

(See Ordering Information for full part number)

Model 5x1x

-25

Model 5x2x

-50

Model 5x3x

-100

100

Operating Temperature Range

Model 51xx

-10

Model 52xx

-40

Supply Voltage (Vcc)

Model 5xx1

1.710

1.8

1.890

Model 5xx2

2.375

2.5

2.625

Model 5xx6

2.660

2.8

2.940

Supply Current (Icc)

Jitter:

Period Jitter

3.0

5.0

Integrated Phase Jitter

0.5

1.0

(BW = 12 KHz to 20 MHz)

Start-Up Time

Parameter

Minimum

Nominal

Maximum

Units

MHz

ppm

°C

Vdc

ps RMS

Notes

Enable Input Voltage - (High) -(Vih)

Disable Input Voltage - (Low) - (Vil)

Parameter

Minimum

70%Vcc

Input Characteristics

Nominal

Maximum

30%Vcc

Units

Vdc

Notes

LVCMOS Output Characteristics

Load

Voltage High (Voh)

Low (Vol)

Duty Cycle at 50% Level

Rise / Fall Time: 10% to 90%

1 to 10 MHz

>10 to 50 MHz

>50 MHz

Type

LVCMOS

Low Voltage

Clock Series

5x7 mm

Parameter

Minimum

90%Vcc

Frequency

Stability

Nominal

Maximum

10%Vcc

Units

Vdc

- 156.25M

Notes

Ordering Information

Temperature

Range

1 =-10 to 70°C

2 = -40 to 85°C

Supply Voltage

1 = 1.8 Vdc

2 = 2.5 Vdc

6 = 2.8 Vdc

Output Frequency

Frequency Format

-xxx.xM Min

-xxx.xxxxxxM Max

*Amount of numbers

after the decimal

point. M = MHz

Bulletin

Page

Revision

Date

SM138

1 of 2

12 Oct 2011

1 = ±25 ppm

2 = ±50 ppm

3 = ±100 ppm

Example: Part Number

5112-156.25M = 5x7mm package, LVCMOS Output,

-10 to 70, +/-25 ppm, 2.5 Vdc, E/D Pad 1, Output Frequency 156.25 MHz
