151240-8321-TY datasheet, PDF - EEWORLD Datasheet

151240-8321-TY: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,NATURAL; CategoryThe connector The connector; File Size143KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

151240-8321-TY Overview

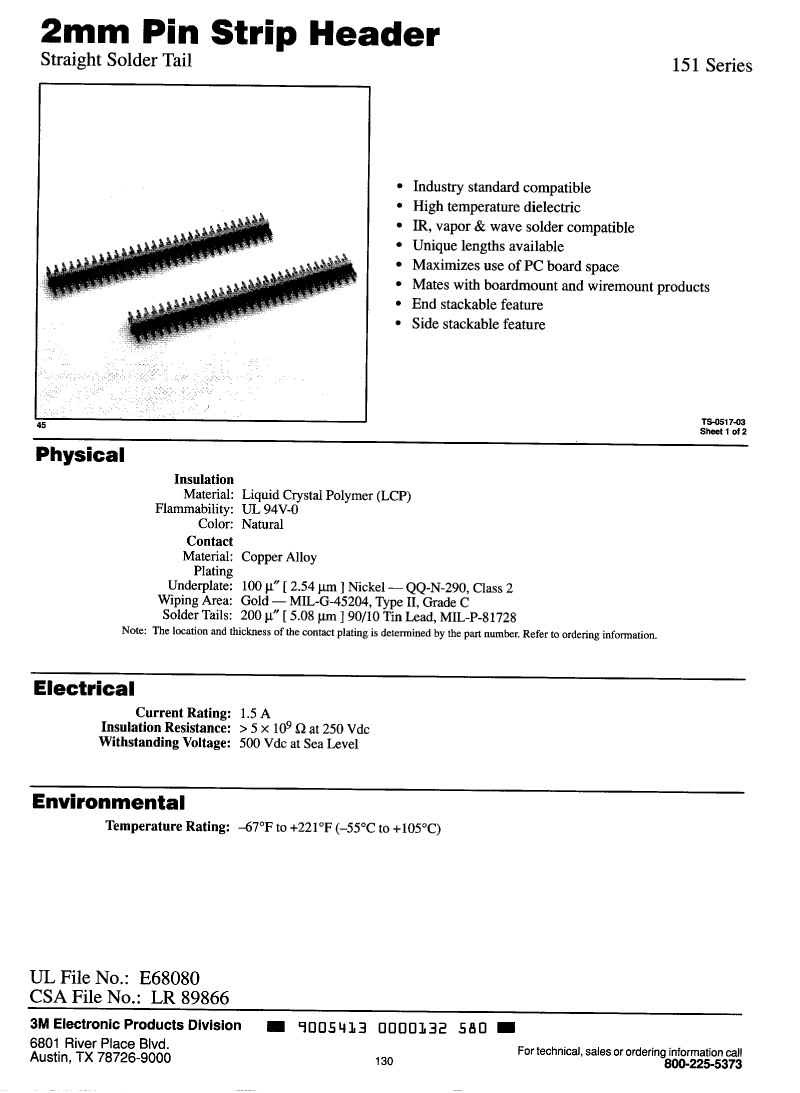

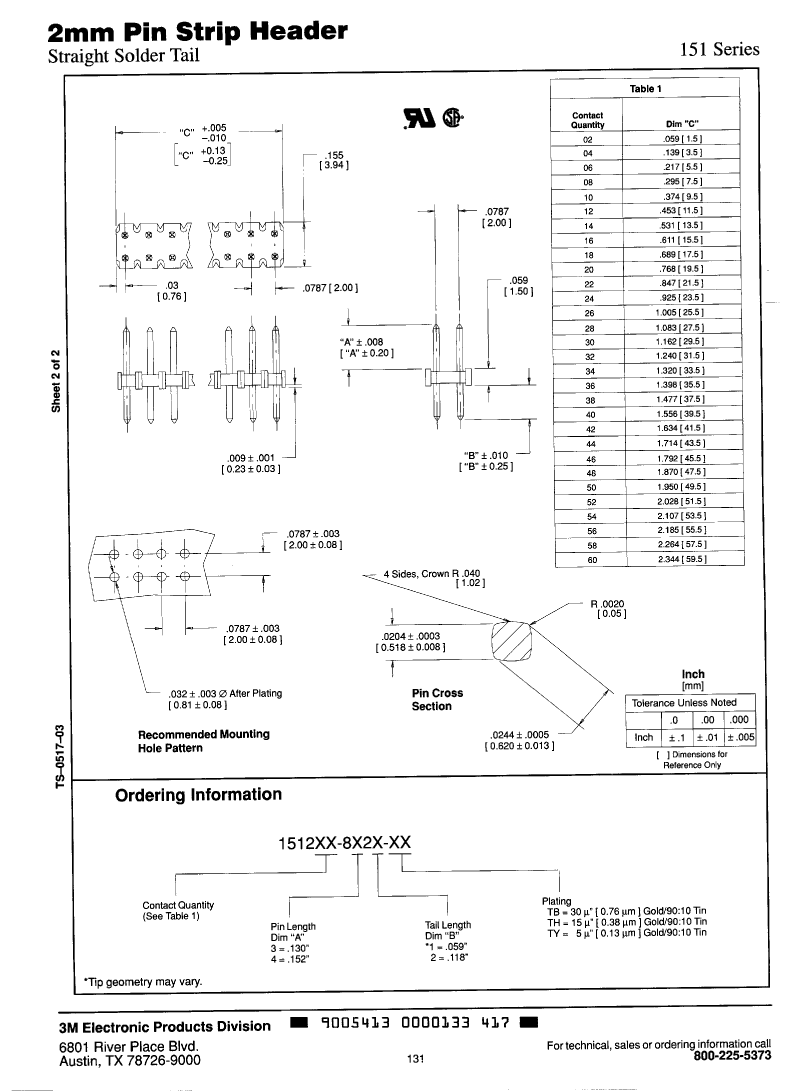

HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,NATURAL

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
body width	0.155 inch
subject depth	0.059 inch
body length	1.556 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	151
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	5u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.059 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	40
