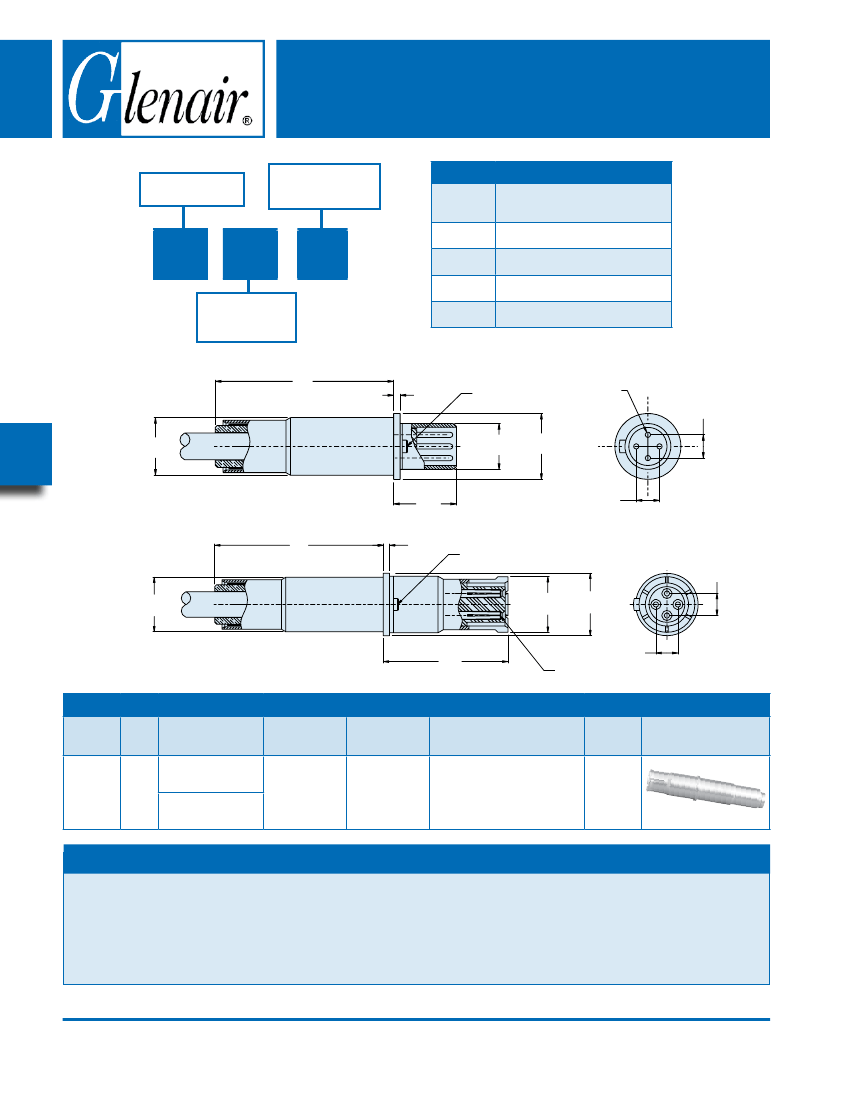

854-002-03: DescriptionCrimp Quadrax Pin and Socket Contacts; File Size345KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Compare View All

854-002-03 Overview

Crimp Quadrax Pin and Socket Contacts

Preview

Download Datasheet

View All

Quadrax

Environmental

Connectors

Basic Number

854-001 and 854-002

Crimp Quadrax Pin and Socket Contacts

MIL-DTL-38999 Series III

TABLE I

Dash

Number

-01

-02

-03

Cables Accomodated

Tensolite NF26Q100

Tensolite NF24Q100

Draka Fileca F 4704-6

Draka Fileca F 4704-4

Dash Number

(See Table I)

854

-

002

-

01

001 -

002 -

Socket

-04

.92

.033

.029

Polarization Key

4X

Ø .276

.271

.111

D

Ø .276

.271

Ø .219

.217

Ø .316

.313

Pin Contact

.77

.305

.295

.033

.029

Polarization Key

.111

Ø .276

.271

Ø .288 Ø .316

.313

.284

Socket Contact

.631

.625

.111

Socket to accept Ø.025 Pin

PRODUCT ORDERING INFORMATION

Contact

Type

Size

Glenair

Part Number

854-001

N/A

854-002

Military

Part Number

Tool

Code

C, J (Inner)

K, M (Outer)

Cable Type

Dash No.

-01 - Tensolite NF26Q100

-02 - Tensolite NF24Q100

-03 - Draka Fileca F 4704-6

-04 - Draka Fileca F 4704-4

Wire

Size

26AWG

24AWG

26AWG

24AWG

Sample Contact

#8

APPLICATION NOTES

1.

2.

Assembly to be bagged and tagged with Glenair’s name, part

number and date code.

Material/Finish:

Contact body - Copper alloy / Gold plated

Inner contacts - Copper alloy / Gold plated

Crimp ferrule - Brass or equivalent / Gold plated

Insulator - Teﬂon, Ultem series 1000 or equivalent

3.

Electrical Parameters:

Differential impedance - 100 ohms nominal

Dielectric withstanding voltage - 500 VRMS

Insulation resistance - 5000 megohms minimum at 200 VDC

Contact is designed to accomodate cable listed in table I

Pin contact shall mate with Glenair socket contact p/n 854-001-xx

and fit into Glenair connector series 257-459 only.

Printed in U.S.A.

E-Mail: sales@glenair.com

4.

5.

www.glenair.com

CAGE CODE 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

D-24
