MAX359 datasheet, PDF - EEWORLD Datasheet

MAX359: Description8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16; Categorysemiconductor Analog mixed-signal IC; File Size438KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

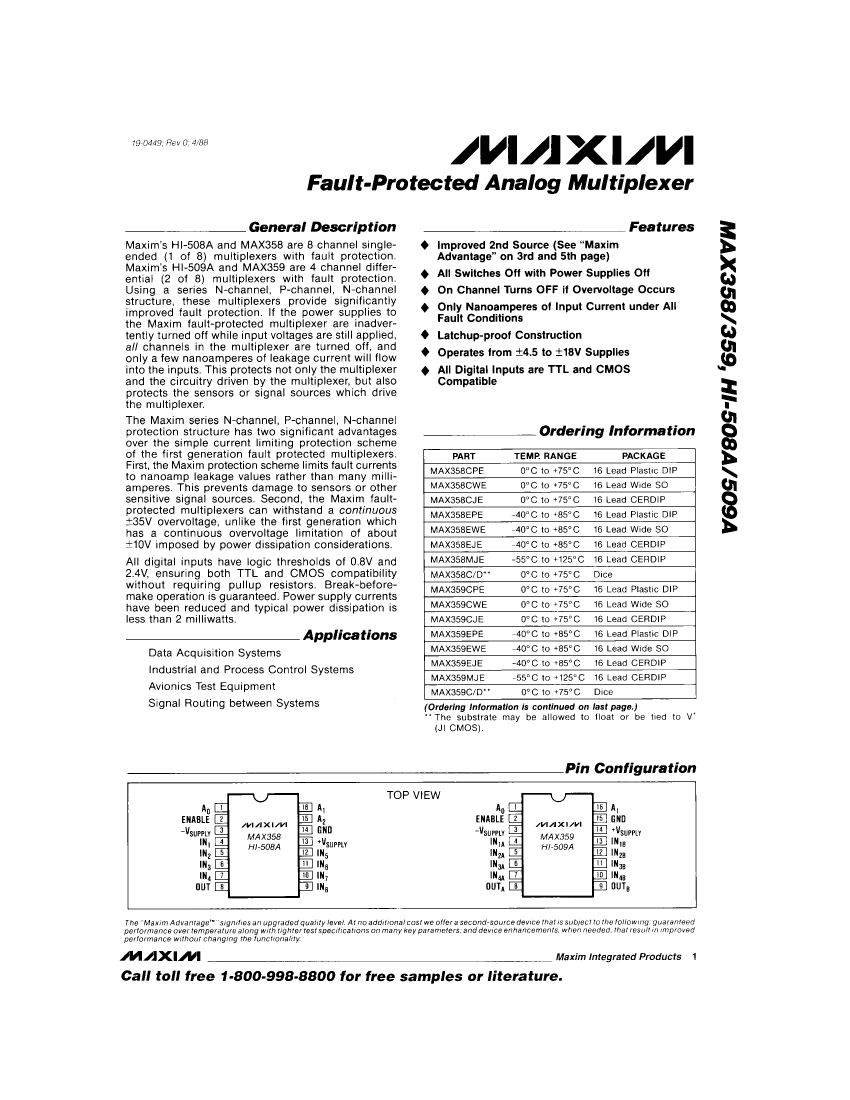

MAX359 Overview

8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16

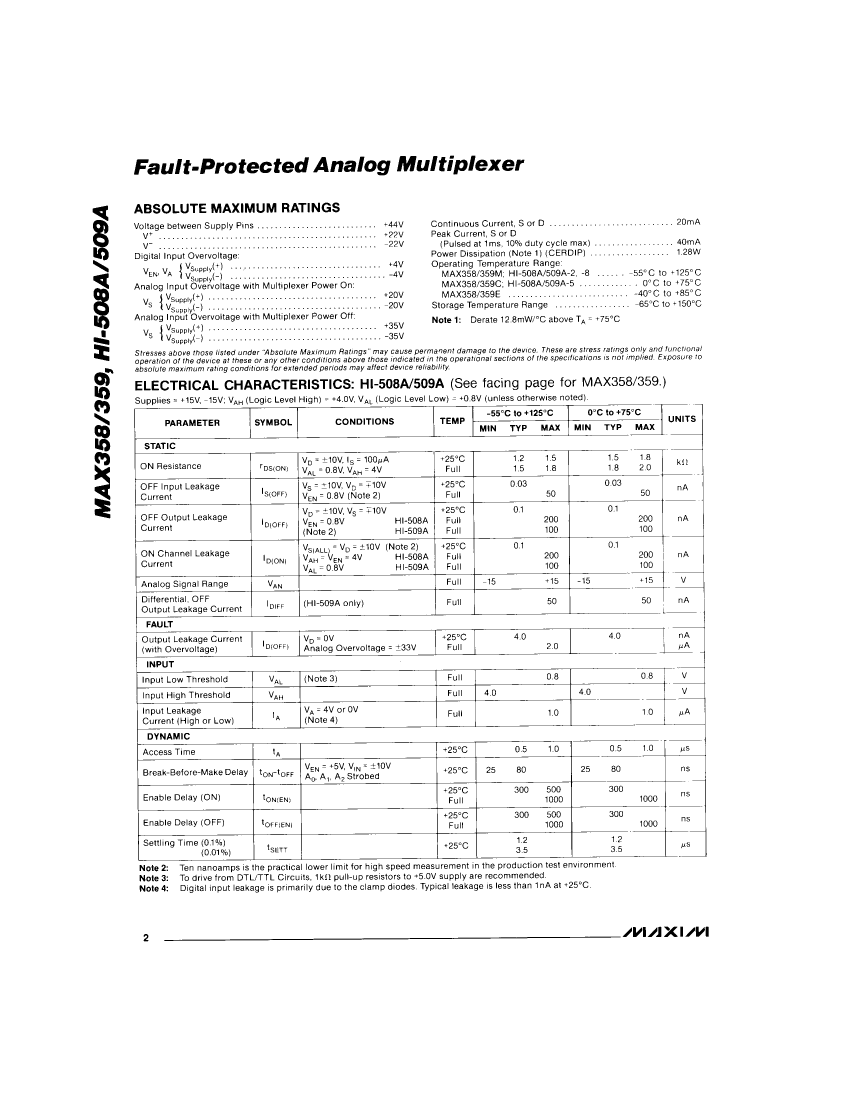

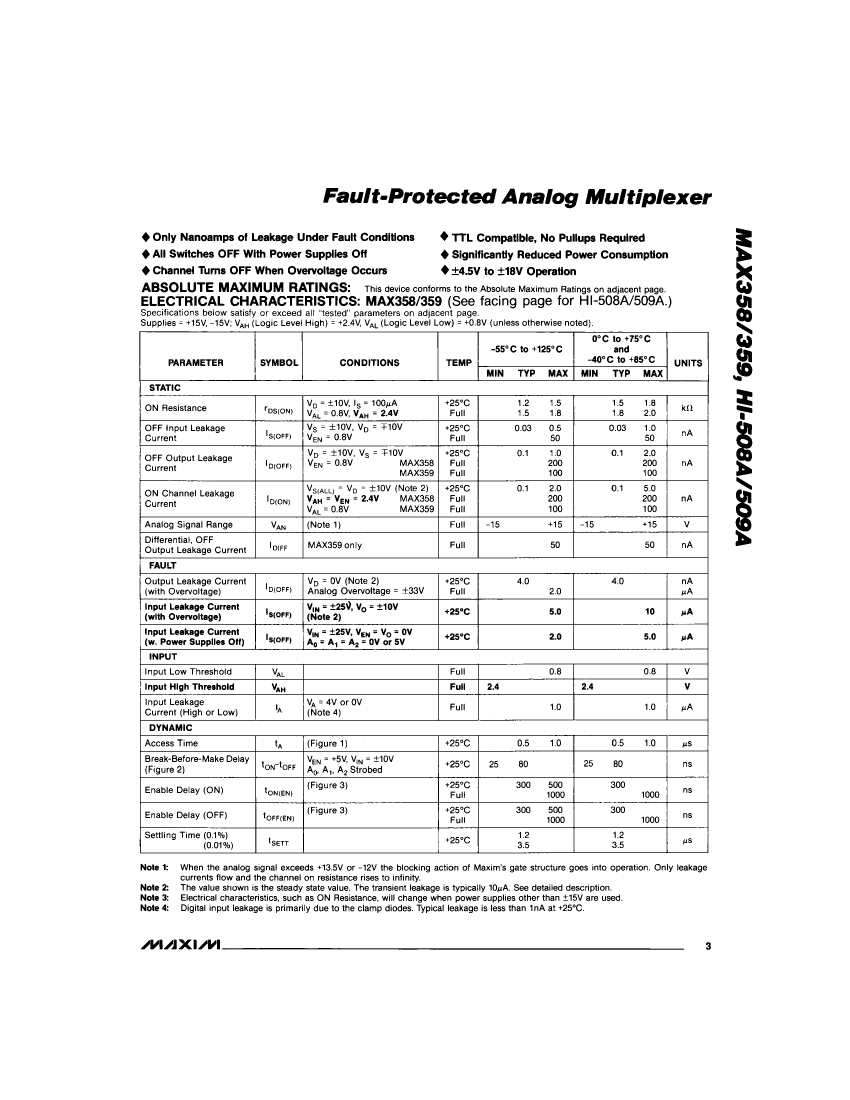

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Maximum supply/operating voltage	18 V
Minimum supply/operating voltage	4.5 V
Rated supply voltage	15 V
Processing package description	CERDIP-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	CERAMIC, GLASS-SEALED
Temperature level	MILITARY
Number of inputs	8

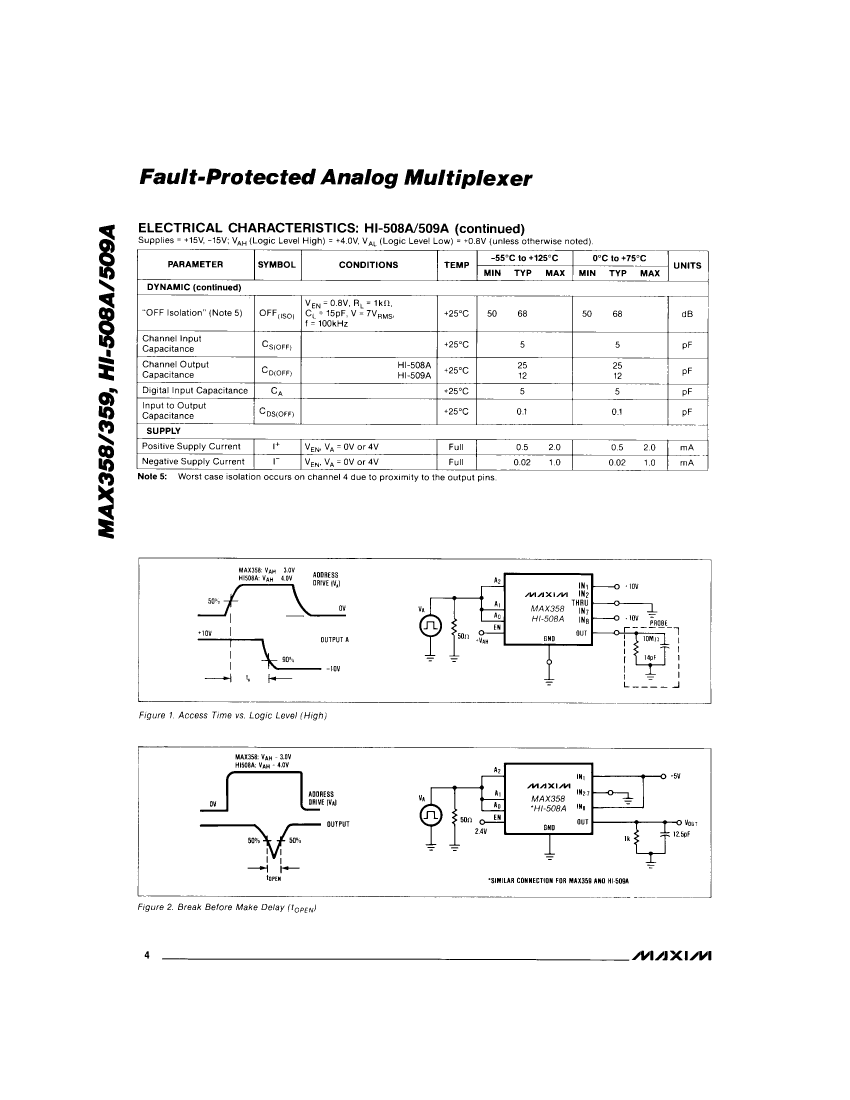

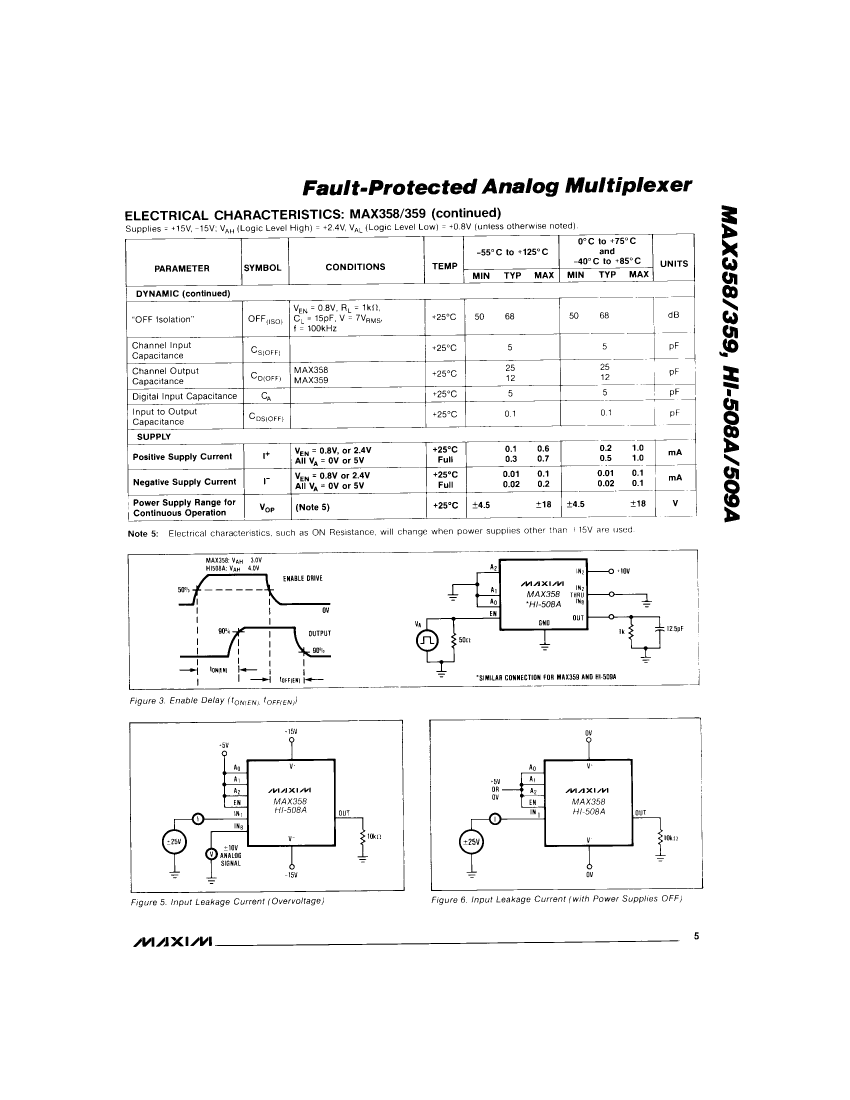

Maximum on-time	1000 ns
Maximum off time	500 ns
Analog IC other types	SGL ENDED MULTIPLEXER
Isolation Rating in Off State	68 dB
Maximum limit analog input voltage	15 V
Rated negative supply voltage	-15 V
Maximum on-state resistance	1500 ohm

	MAX359	HI1-0508A-5	HI3-509A	MAX358
Description	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 Cel	75 °C	125 Cel	125 Cel
Minimum operating temperature	-55 Cel	-	-55 Cel	-55 Cel
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Temperature level	MILITARY	COMMERCIAL EXTENDED	MILITARY	MILITARY
Maximum supply/operating voltage	18 V	-	18 V	18 V
Minimum supply/operating voltage	4.5 V	-	4.5 V	4.5 V
Rated supply voltage	15 V	-	15 V	15 V
Processing package description	CERDIP-16	-	CERDIP-16	CERDIP-16
state	ACTIVE	-	ACTIVE	ACTIVE
Craftsmanship	CMOS	-	CMOS	CMOS
packaging shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package Size	IN-LINE	-	IN-LINE	IN-LINE
Terminal spacing	2.54 mm	-	2.54 mm	2.54 mm
terminal coating	TIN LEAD	-	TIN LEAD	TIN LEAD
Packaging Materials	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Number of inputs	8	-	8	8
Maximum on-time	1000 ns	-	1000 ns	1000 ns
Maximum off time	500 ns	-	500 ns	500 ns
Analog IC other types	SGL ENDED MULTIPLEXER	-	SGL ENDED MULTIPLEXER	SGL ENDED MULTIPLEXER
Isolation Rating in Off State	68 dB	-	68 dB	68 dB
Maximum limit analog input voltage	15 V	-	15 V	15 V
Rated negative supply voltage	-15 V	-	-15 V	-15 V
Maximum on-state resistance	1500 ohm	-	1500 ohm	1500 ohm
